Fluke 700HTH-1 Hydraulic Test Hose, 10,000 PSI, 700 Bar is a product engineered with precision, delivering exceptional performance
with features like includes plugs and caps to eliminate fluid loss in hose eliminates the need to reprime the hose, selfsealing fittings with easy finger tight connections and low volumetric expansion and a negligible pressure drop at rated pressures.
Maintive brings to you 100% genuine Calibration Tools Accessories from Fluke at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order 700HTH-1 Hydraulic Test Hose, 10,000 PSI, 700 Bar today at the best price only from Maintive.
Features
Includes plugs and caps to eliminate fluid loss in hose; eliminates the need to re-prime the hose
Self-sealing fittings with easy finger tight connections
Low volumetric expansion and a negligible pressure drop at rated pressures
Features stainless steel and nylon construction.
Hose and fittings connect directly to the Fluke 700HTP-1 test pressure port

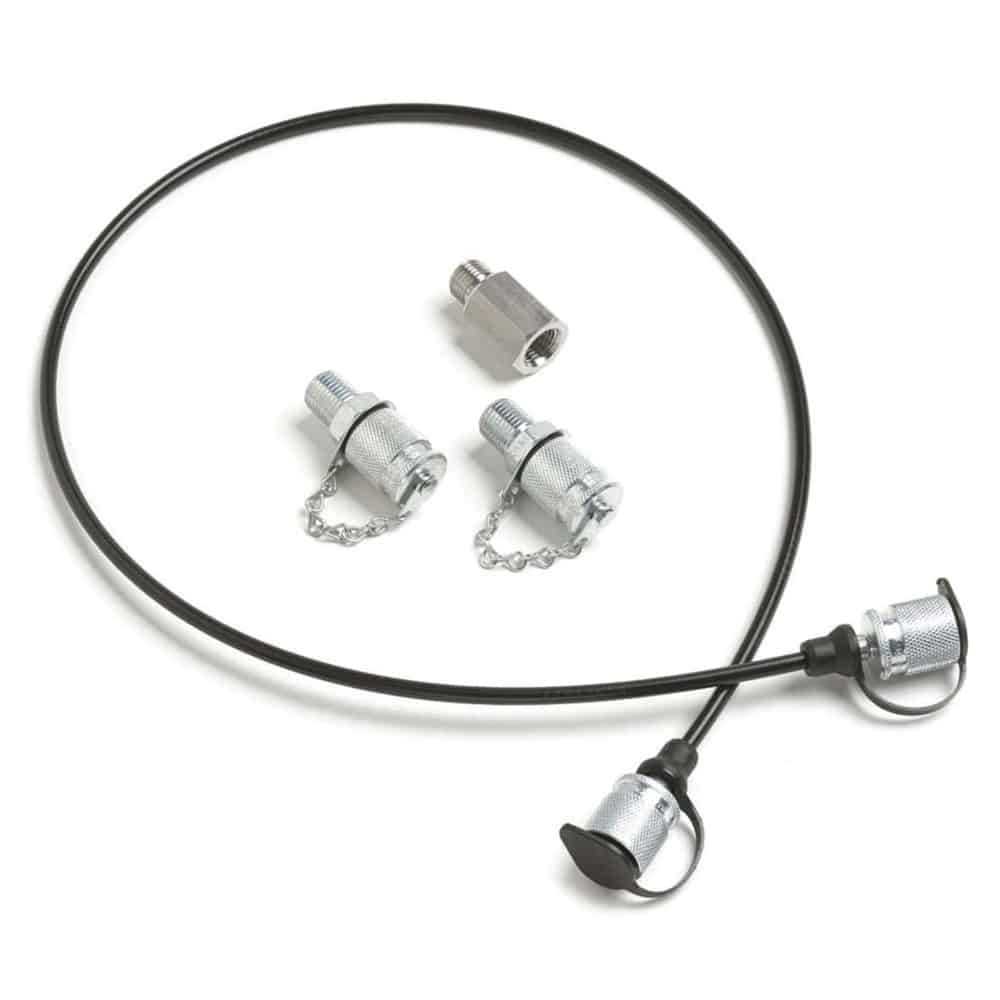

Items Included
Hose with (2) 1/4" NPT female output connections
(2) adapters that to convert ¼: NPT female to 1/4" NPT male (include sealing caps)
1/4 in NPT female to 1/4 in BSP male adapter
Instruction sheet
Specifications
Max Pressure690 bar/10,000 psi
Min. Bend Radius60mm
Working temperature40 ºC to + 120 ºC
Constructionnylon, stainless steel, zinc, plated steel, and nitrile
Outer diameter6.0 mm
Fluidswater, mineral-based hydraulic oil
Warranty1 year manufacturer's warranty
Max Pressure690 bar/10,000 psi
Min. Bend Radius60mm
Working temperature40 ºC to + 120 ºC
Constructionnylon, stainless steel, zinc, plated steel, and nitrile
Outer diameter6.0 mm
Fluidswater, mineral-based hydraulic oil
Warranty1 year manufacturer's warranty
