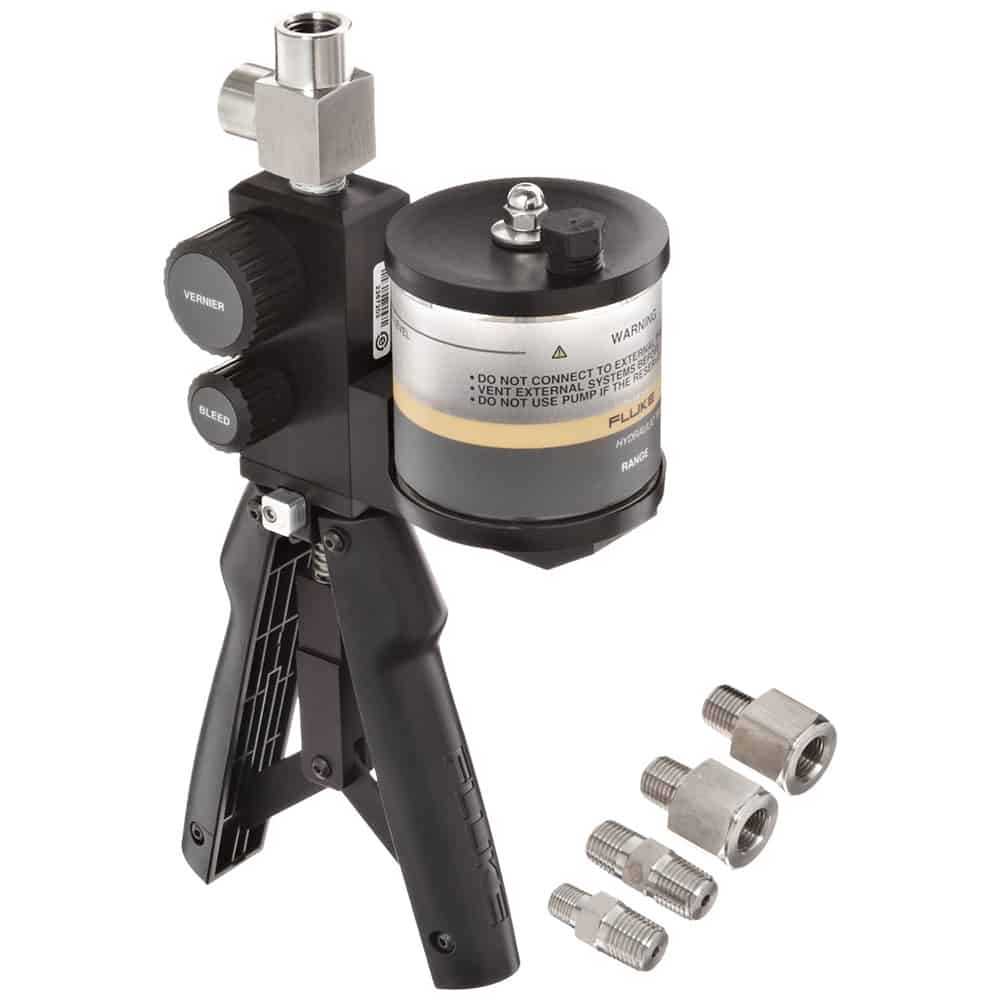

Fluke 700HTP-2 Hydraulic Test Pump, 10,000 PSI, 690 Bar is a product engineered with precision, delivering exceptional performance
with features like variable size stroke adjustment allows the user to vary the volume and pressure per stroke, integral pressure adjustment vernier knob for fine pressure adjustment and directly connection to pressure modules consolidates two separate pieces into one when performing pressure calibration and testing.
Maintive brings to you 100% genuine Calibration Tools Accessories from Fluke at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order 700HTP-2 Hydraulic Test Pump, 10,000 PSI, 690 Bar today at the best price only from Maintive.
Features
Variable size stroke adjustment; allows the user to vary the volume and pressure per stroke
Integral pressure adjustment vernier knob for fine pressure adjustment
Directly connection to pressure modules consolidates two separate pieces into one when performing pressure calibration and testing
Two ¼ inch NPT pressure ports, one for reference (pressure module or gauge), one for UUT
Compatible with optional Fluke-700PRV pressure relief valve designed to protect pressure modules from overpressure damage
Improved priming
Improved stroke limiting mechanism
Items Included
700HTP-2 Hydraulic Test Pump with a 1/4inch NPT tee installed
Two 1/4-inch NPT male to 1/4-inch BSP female adapters
One 1/4-inch NPT male to 1/4-inch NPT male fitting
One 1/4-inch NPT male to 1/8-inch NPT male fitting
Instruction Sheet
Specifications
Max. Pressure10,000 PSI (690 Bar)
Hydraulic MediaDistilled water, mineral based hydraulic oil, or up to hydraulic oil 100 (30 W)
Size (L x W x D)9.5 x 6.1 x 2.6 in (241 x 155 x 66 mm)
Weight1.29 lb (0.58 kg)
Wetted Materials303 stainless steel, aluminum, polyurethane, PTFE, nitrile, and nylon
Warranty1 year manufacturer's warranty
Max. Pressure10,000 PSI (690 Bar)
Hydraulic MediaDistilled water, mineral based hydraulic oil, or up to hydraulic oil 100 (30 W)
Size (L x W x D)9.5 x 6.1 x 2.6 in (241 x 155 x 66 mm)
Weight1.29 lb (0.58 kg)
Wetted Materials303 stainless steel, aluminum, polyurethane, PTFE, nitrile, and nylon
Warranty1 year manufacturer's warranty
