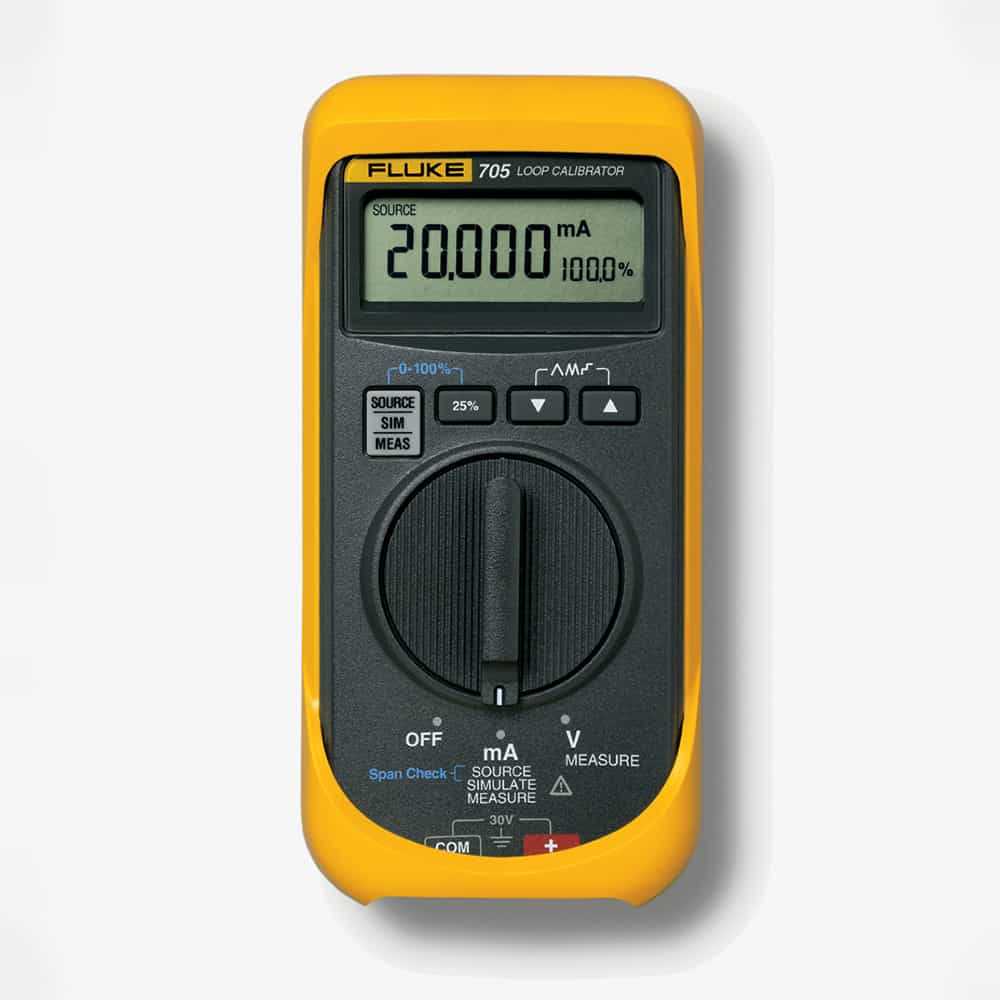

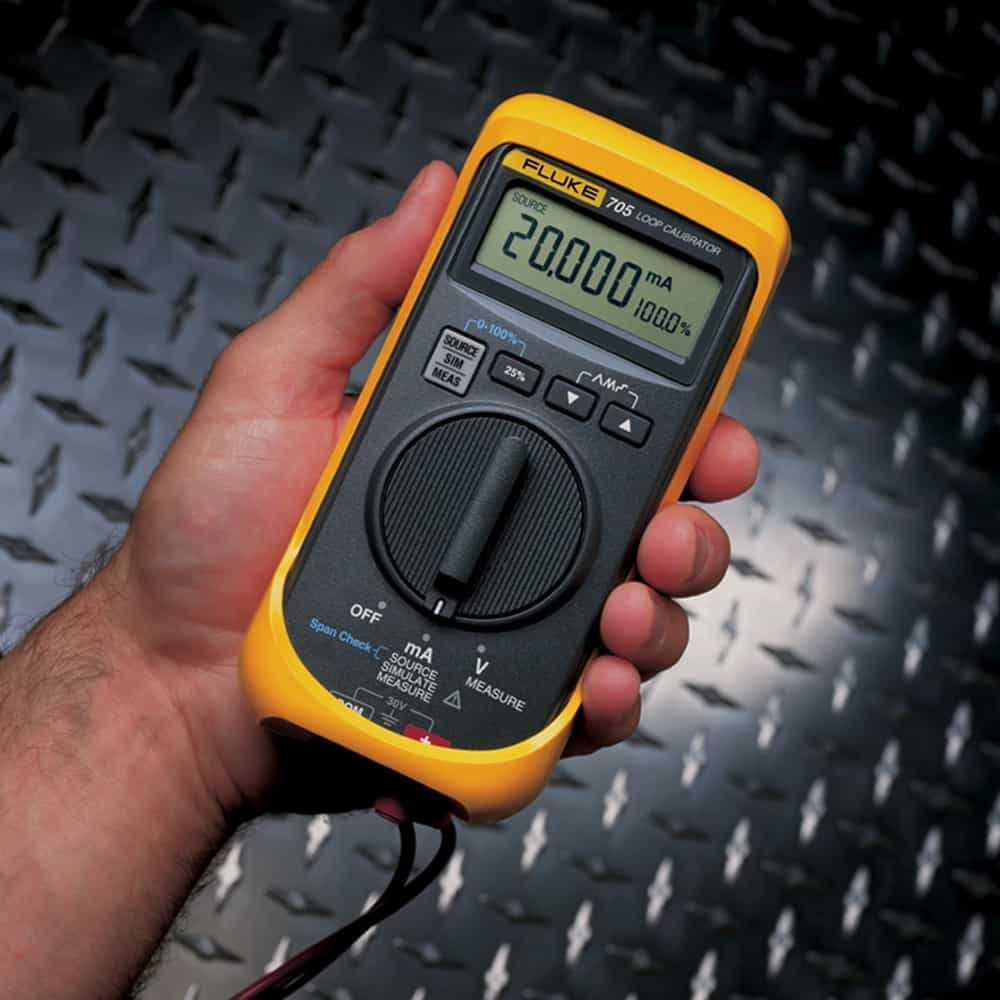

Fluke 705 Loop Calibrator, 28V, 24mA is a product engineered with precision, delivering exceptional performance
with features like a large display and simple pushbutton interface for ease of use, simultaneous mA and readout for quick easy interpretation of readings and mA accuracy of 002.
Maintive brings to you 100% genuine Loop Calibrators from Fluke at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order 705 Loop Calibrator, 28V, 24mA today at the best price only from Maintive.
Features
A large display and simple; pushbutton interface for ease of use.
Simultaneous mA and % readout for quick; easy interpretation of readings.
mA accuracy of 0.02%
Push button 25% steps for fast; easy linearity checks. Save time over traditional knob type controls.
mA sourcing, simulation and measurement
0.02% accuracy and 0.001 mA resolution
Simultaneous mA and % of span display
Selectable step or ramp outputs
24 V Loop supply with mA measure
Items Included
AC70A Alligator Clips
C10 protective yellow holster with Flex-Stand™
Instruction sheet
TL75 safety-designed test lead set
NIST- traceable calibration report and data
Specifications
Current Measurement0 to 24 mA
Loop powerWhile measuring mA, 24 V
Voltage Measurement0 to 28 V DC Resolution; 1 mV Accuracy; 0.025% Rdg + 2 LSD
Operating temperature-10°C to 55°C
Storage temperature-40°C to 60°C
Humidity (without condensation)0 to 90% (0°C to 35°C); 0 to 70% (35°C to 55°C)
Temperature coefficient-10°C to 18°C, 28°C to 55°C, ±.005% of range per°C
Warranty3 years manufacturer's warranty
Current Measurement0 to 24 mA
Loop powerWhile measuring mA, 24 V
Voltage Measurement0 to 28 V DC Resolution; 1 mV Accuracy; 0.025% Rdg + 2 LSD
Operating temperature-10°C to 55°C
Storage temperature-40°C to 60°C
Humidity (without condensation)0 to 90% (0°C to 35°C); 0 to 70% (35°C to 55°C)
Temperature coefficient-10°C to 18°C, 28°C to 55°C, ±.005% of range per°C
Warranty3 years manufacturer's warranty
