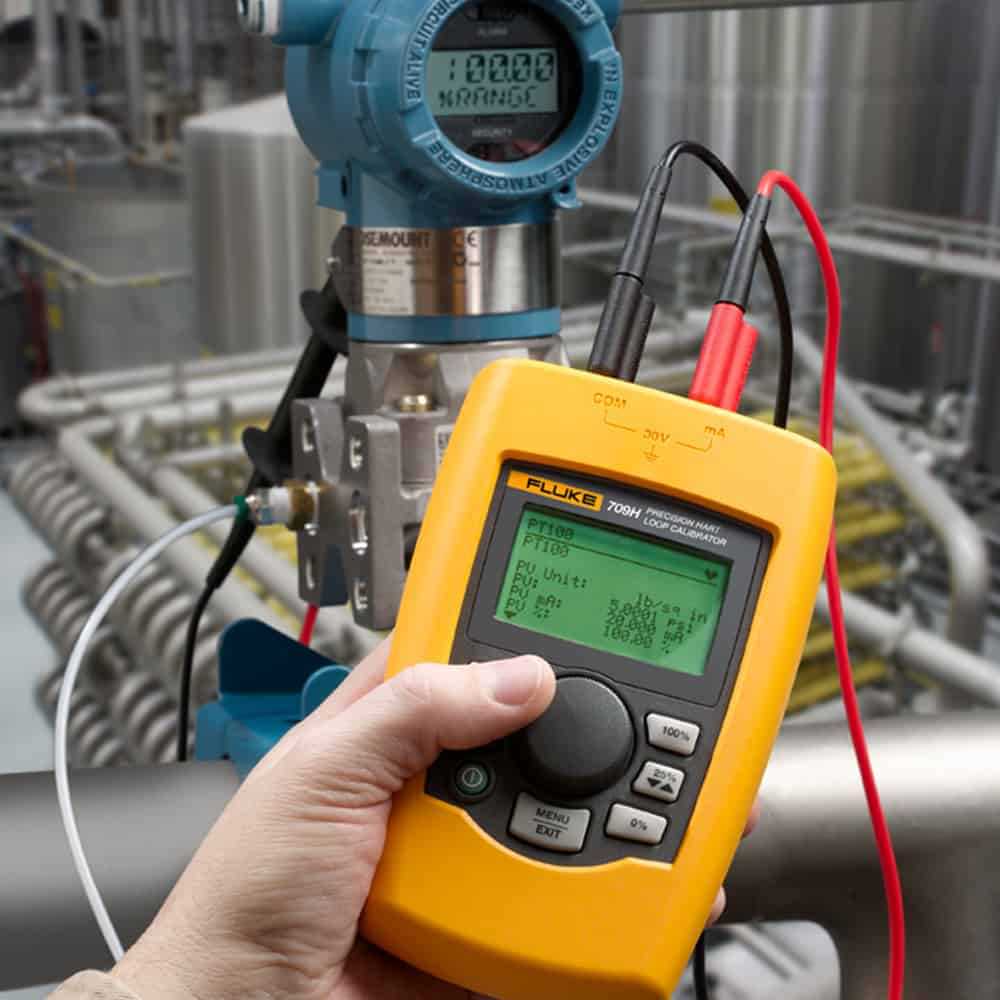

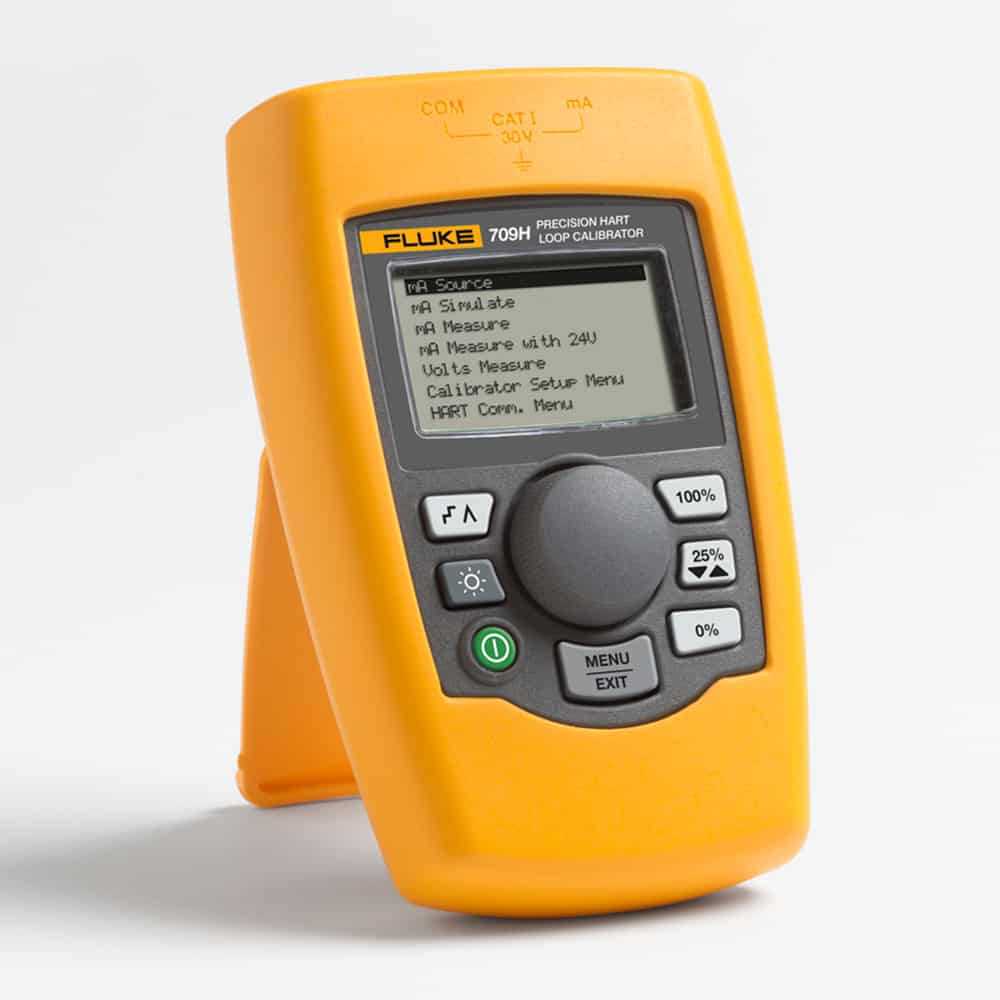

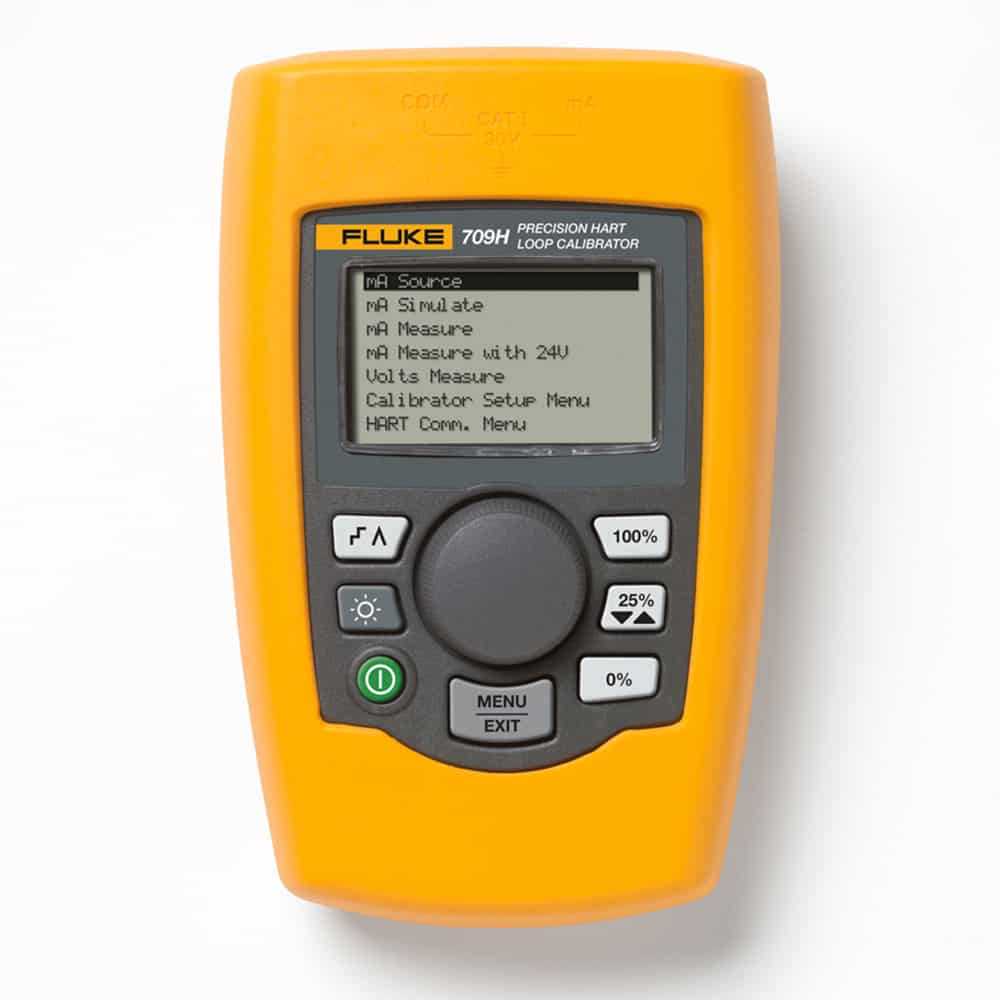

Fluke 709 Precision Loop Calibrator, 0 to 24mA, 0 to 30V is a product engineered with precision, delivering exceptional performance
with features like bestinclass accuracy at 001 reading, small rugged design operates on 6 standard AAA batteries and intuitive user interface with QuickSet knob for fast setup easy use.
Maintive brings to you 100% genuine Loop Calibrators from Fluke at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order 709 Precision Loop Calibrator, 0 to 24mA, 0 to 30V today at the best price only from Maintive.
Features
Best-in-class accuracy at 0.01% reading
Small rugged design operates on (6) standard AAA batteries
Intuitive user interface with Quick-Set knob for fast setup; easy use
Built in selectable 250 resistor for HART communication
Features 24 V DC loop power with mA Measure Mode (-25% to 125%)
Requires only simple two wire connection for all measurements
Provides resolution of 1 µA on mA ranges and 1 mV on voltage ranges
Features a compact rugged design and runs on 6 standard AAA batteries
Provides Auto Shutdown to conserve battery life (adjustable up to 30 minutes)
Items Included
AC175 Alligator Clip Set
TL75 Test Leads
Soft Case
Six AAA Batteries (Installed)
Product Manual CD-ROM
Quick Reference Guide
Safety Information
Specifications
FunctionsmA source, mA simulate, mA read, mA read/loop power, and volts read.
Voltage Measurement0 to 30 V DC
Current Measurement0 to 24mA
Resolution1 µA on mA ranges and 1 mV on voltage range
Accuracy0.01% ± 2 counts, all ranges (@23° ± 5°C)
Operating temperature-10°C to 55°C (14°F to 131°F)
Humidity range10 to 95% non-condensing
Stability20 ppm of F.S. /°C from -10°C to 18°C and 28°C to 55°C
Display128 x 64 pixels, LCD graphic w/backlight, .34 high digits
Dimensions15 x 9 x 3 cm (6 x 3.6 x 1.3 in)
Warranty1 year manufacturer's warranty
FunctionsmA source, mA simulate, mA read, mA read/loop power, and volts read.
Voltage Measurement0 to 30 V DC
Current Measurement0 to 24mA
Resolution1 µA on mA ranges and 1 mV on voltage range
Accuracy0.01% ± 2 counts, all ranges (@23° ± 5°C)
Operating temperature-10°C to 55°C (14°F to 131°F)
Humidity range10 to 95% non-condensing
Stability20 ppm of F.S. /°C from -10°C to 18°C and 28°C to 55°C
Display128 x 64 pixels, LCD graphic w/backlight, .34 high digits
