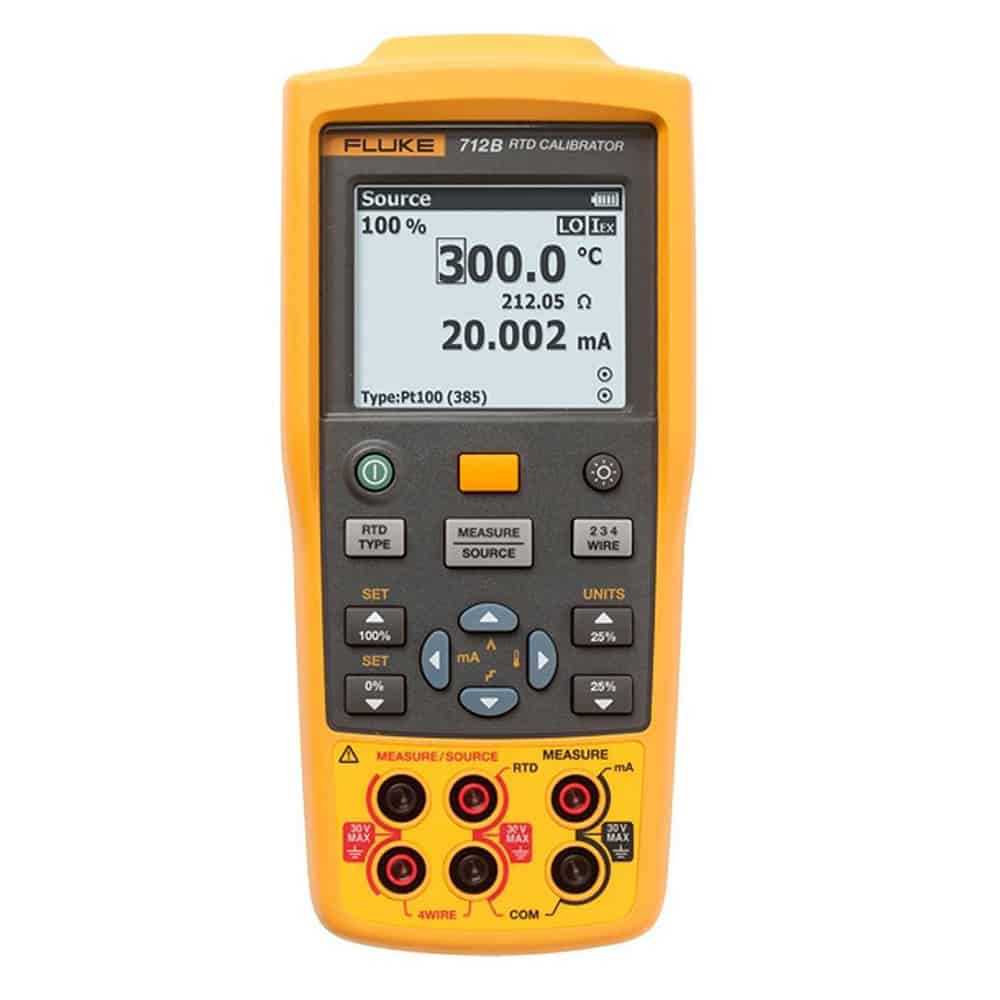

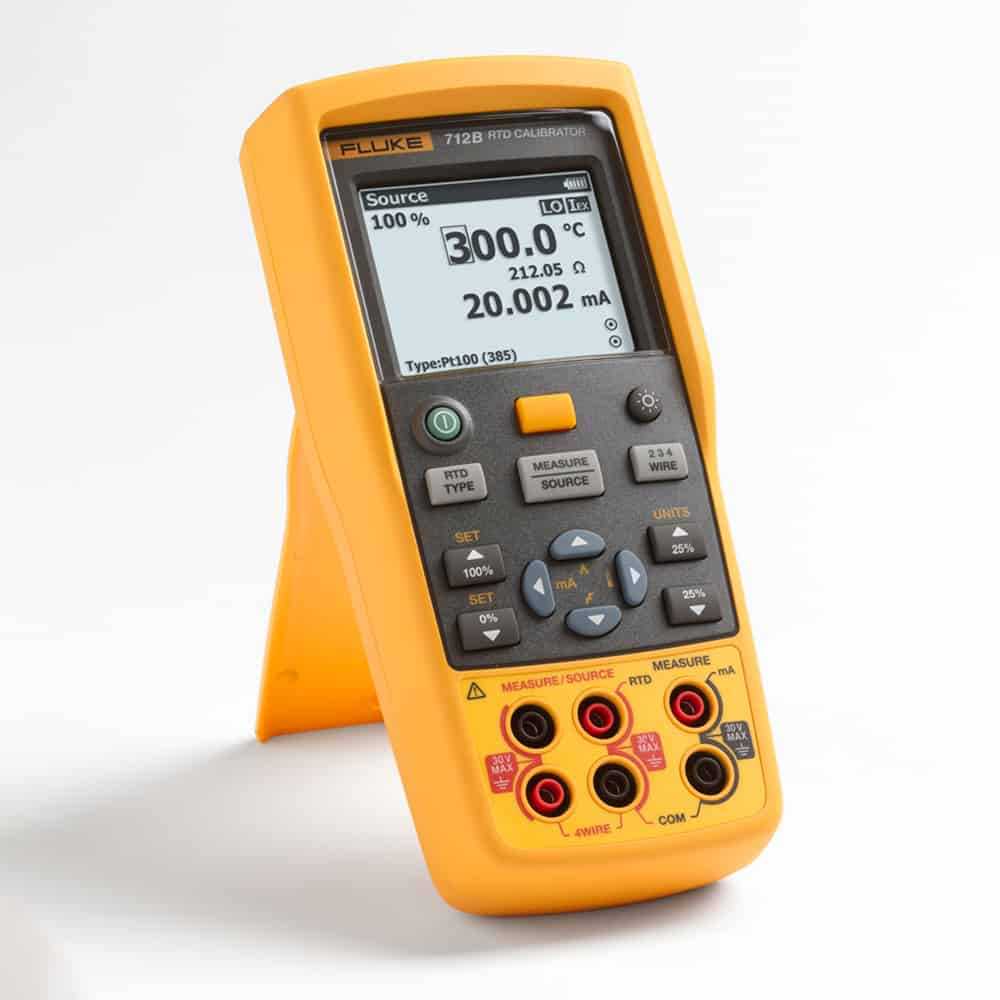

Fluke 712B RTD Temperature Calibrator, 13 RTD Types is a product engineered with precision, delivering exceptional performance
with features like the 712B can measure and simulate 13 different RTD types and resistance, measure 4 to 20 mA signals while simultaneously sourcing a temperature signal and hanging tool designed in and included with every unit.
Maintive brings to you 100% genuine Temperature Calibrators from Fluke at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order 712B RTD Temperature Calibrator, 13 RTD Types today at the best price only from Maintive.
Features
The 712B can measure and simulate (13) different RTD types and resistance
Measure 4 to 20 mA signals while simultaneously sourcing a temperature signal
Hanging tool designed in and included with every unit
Configurable 0% and 100% source settings for quick 25% linearity checks
Comes with a magnetic hanging tool designed in for convenient hands-free operation
Dual inputs and backlit display for easy interpretation of measurements
Remembers power down settings to easily restart tests when powered up
Provides linear ramp and 25% step auto ramp based on 0% and 100% settings
Provides one-year and two-year specifications and traceable certification of calibration
Items Included
Magnetic hanging tool Batteries
Manual
Traceable calibration certificate
Test Lead
Specifications
Current Measurement0 to 24mA
Resistance Measurement0 to 4000Ω
Maximum voltage applied between any terminal and earth ground or between any two terminals30 V
Operating temperature-10°C to 50°C
Storage temperature-30°C to 60°C
Relative humidity (% RH operating without condensation)Non condensing 90% (10°C to 30°C) 75% (30°C to 40°C) 45% (40°C to 50°C) (Without condensation)
Vibration requirementsMIL-T-28800E, Class 2
Warranty3 years manufacturer's warranty
Current Measurement0 to 24mA
Resistance Measurement0 to 4000Ω
Maximum voltage applied between any terminal and earth ground or between any two terminals30 V
Operating temperature-10°C to 50°C
Storage temperature-30°C to 60°C
Relative humidity (% RH operating without condensation)Non condensing 90% (10°C to 30°C) 75% (30°C to 40°C) 45% (40°C to 50°C) (Without condensation)
Vibration requirementsMIL-T-28800E, Class 2
Warranty3 years manufacturer's warranty
