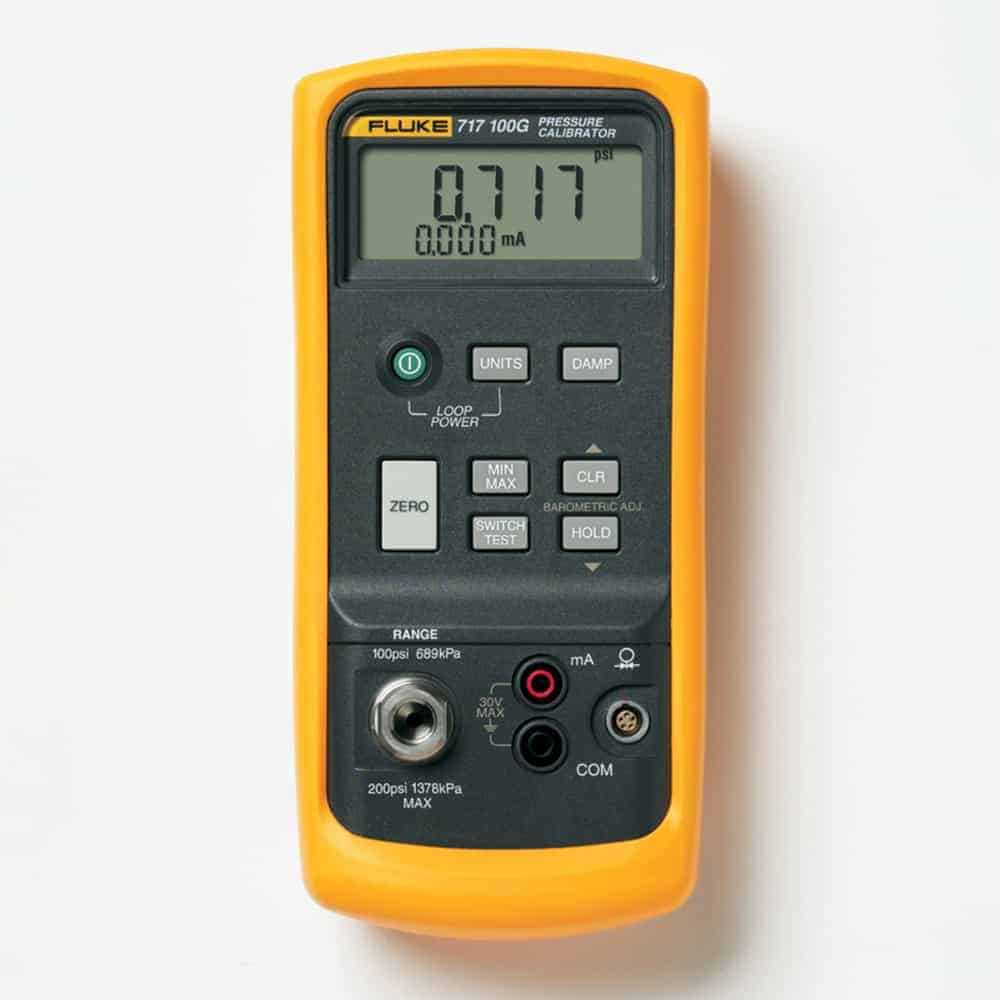

Measure pressure; 0.05% of full scale with internal sensor up to 5000 PSI/345 bar sensor (5000G model) Measure mA with 0.015% accuracy and 0.001 mA resolution; while sourcing 24V loop power Measure pressure to 10;000 psi/700 bar using one of 29 Fluke 700Pxx Pressure Modules 1/8 NPT female pressure fitting
Compatible with non-corrosive Gases and liquids
Select eleven different engineering units
Zero; min; max; and hold functions
Calibrate P/I instruments with simultaneous pressure and current measurement
Error% calculation of mA measurements for quick pass-fail decisions
Long lasting battery life
Holster features test lead storage
Compatible with Toolpack magnetic hanging system
Items Included
Protective Yellow Holster with test lead storage
Instructions Sheet (14 languages)
single 9V alkaline battery
Test Leads and Alligator Clips
NIST- traceable calibration report and data
Specifications
Range-12 to 300 psi, (-850 mbar to 20 bar, -83 to 2068.42 kPa )
Resolution0.01 PSI, 1 mbar, 0.1 kPa
Over pressure375 PSI, 25 bar
Current0 to 24 mA (-25% to 125%)
Accuracy0.015% + 2 counts
Loop Power24V DC
Accuracy±10%
DisplayClear 5 digit LCD
Operating temperature-10°C to 55°C
Storage temperature-40°C to 60°C
Humidity (without condensation)95% (10°C to 30°C)
Operating altitude3,000 M max
Warranty3 years manufacturer's warranty
Range-12 to 300 psi, (-850 mbar to 20 bar, -83 to 2068.42 kPa )
Resolution0.01 PSI, 1 mbar, 0.1 kPa
Over pressure375 PSI, 25 bar
Current0 to 24 mA (-25% to 125%)
Accuracy0.015% + 2 counts
Loop Power24V DC
Accuracy±10%
DisplayClear 5 digit LCD
Operating temperature-10°C to 55°C
Storage temperature-40°C to 60°C
Humidity (without condensation)95% (10°C to 30°C)
Operating altitude3,000 M max
Warranty3 years manufacturer's warranty
