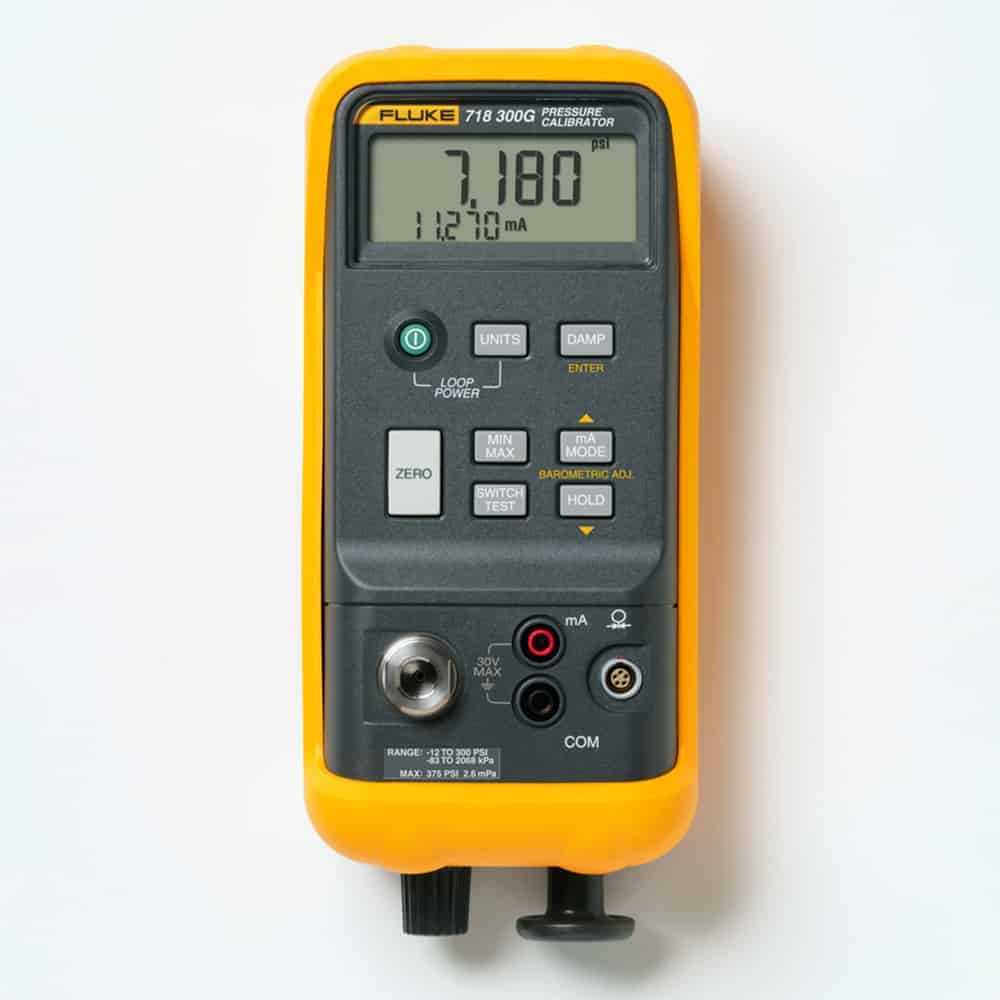

Pressure Source and Milliamp Measurement to calibrate and maintain almost any pressure device
Integrated pump is easily cleaned when accidently exposed to fluids that reduces cost of ownership and repairs and enables servicing the pump in the field
Error % calculation for quicker pass/fail decision making in the field
Best in class mA accuracy of 0.015 % for better measurement confidence and workload coverage
Min/Max/Hold to capture changing measurements
Switch test feature for quicker and more accurate pressure switch testing
New 1 and 300 PSI pressure ranges mean fewer extra tools required
1, 30, 100 & 300 PSI ranges now available
Items Included

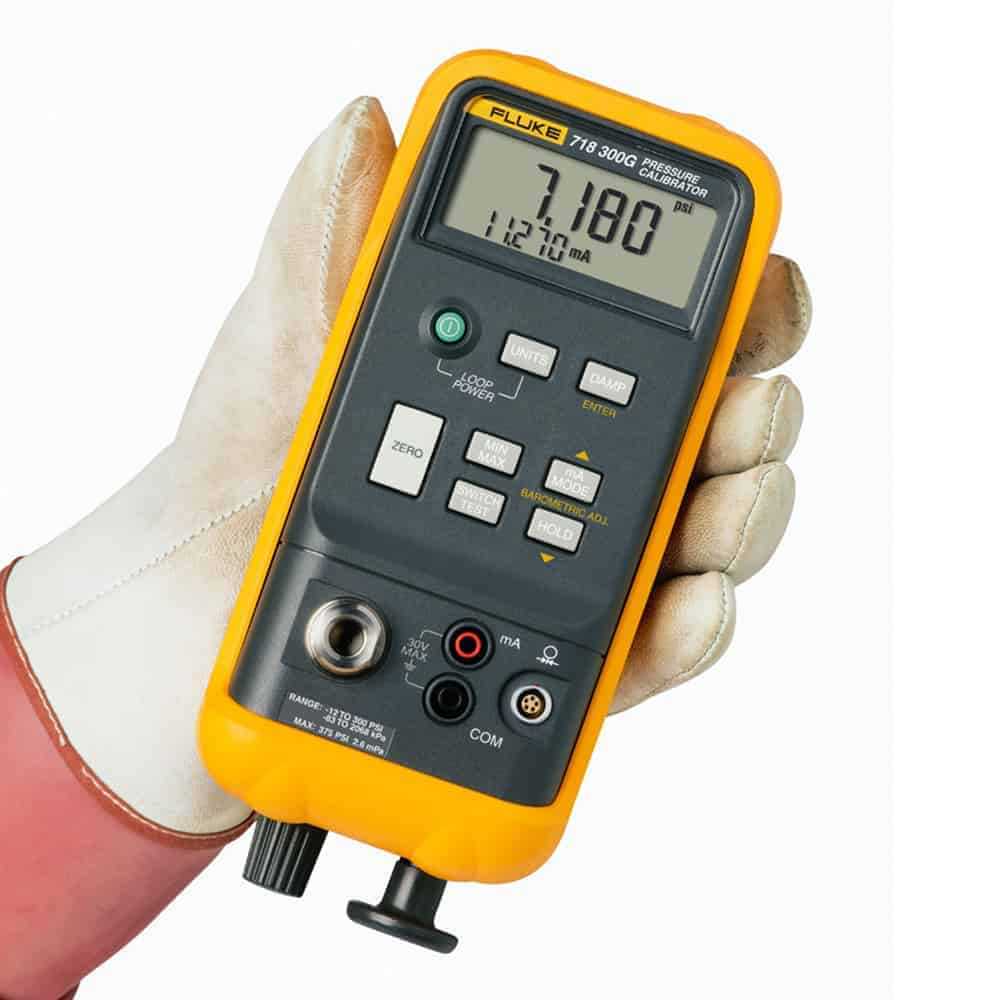

Protective Yellow Holster with test lead storage
Instructions Sheet (14 languages)
Single 9V alkaline battery
Test Leads and Alligator Clips
NIST- traceable calibration report and data
Specifications
Range-1 psi to +1 psi, -68.9 mbar to 68.9 mbar (-6.89 kPa to 6.89 kPa)
Resolution0.0001 psi, 0.001 mbar, 0.0001 kPa
Accuracy0.05% of full scale
Over pressure5x Full Scale
Loop Power24V DC
Maximum voltage30 volts (non-operating)
Temperature-40°C to 60°C
Operating temperature-10°C to 55°C
Relative humidity95% (10°C to 30°C); 75% (30°C to 40°C); 45% (40°C to 50°C); 35% (50°C to 55°C)
VibrationRandom, 2 g, 5 Hz – 500 Hz
Size216 x 94 x 66 mm (8.50 x 3.72 x 2.60 in)
Warranty3 years manufacturer's warranty
Range-1 psi to +1 psi, -68.9 mbar to 68.9 mbar (-6.89 kPa to 6.89 kPa)
Resolution0.0001 psi, 0.001 mbar, 0.0001 kPa
Accuracy0.05% of full scale
Over pressure5x Full Scale
Loop Power24V DC
Maximum voltage30 volts (non-operating)
Temperature-40°C to 60°C
Operating temperature-10°C to 55°C
Relative humidity95% (10°C to 30°C); 75% (30°C to 40°C); 45% (40°C to 50°C); 35% (50°C to 55°C)
VibrationRandom, 2 g, 5 Hz – 500 Hz
Size216 x 94 x 66 mm (8.50 x 3.72 x 2.60 in)
Warranty3 years manufacturer's warranty
