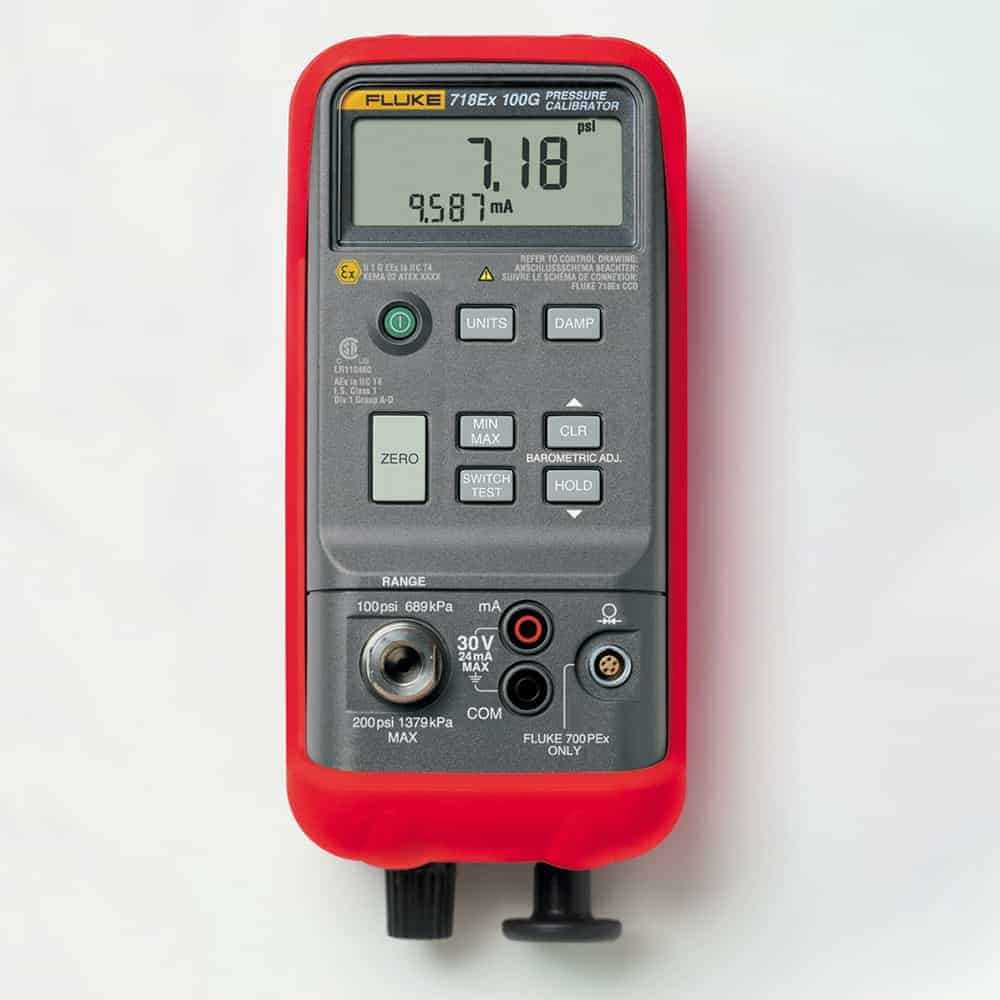

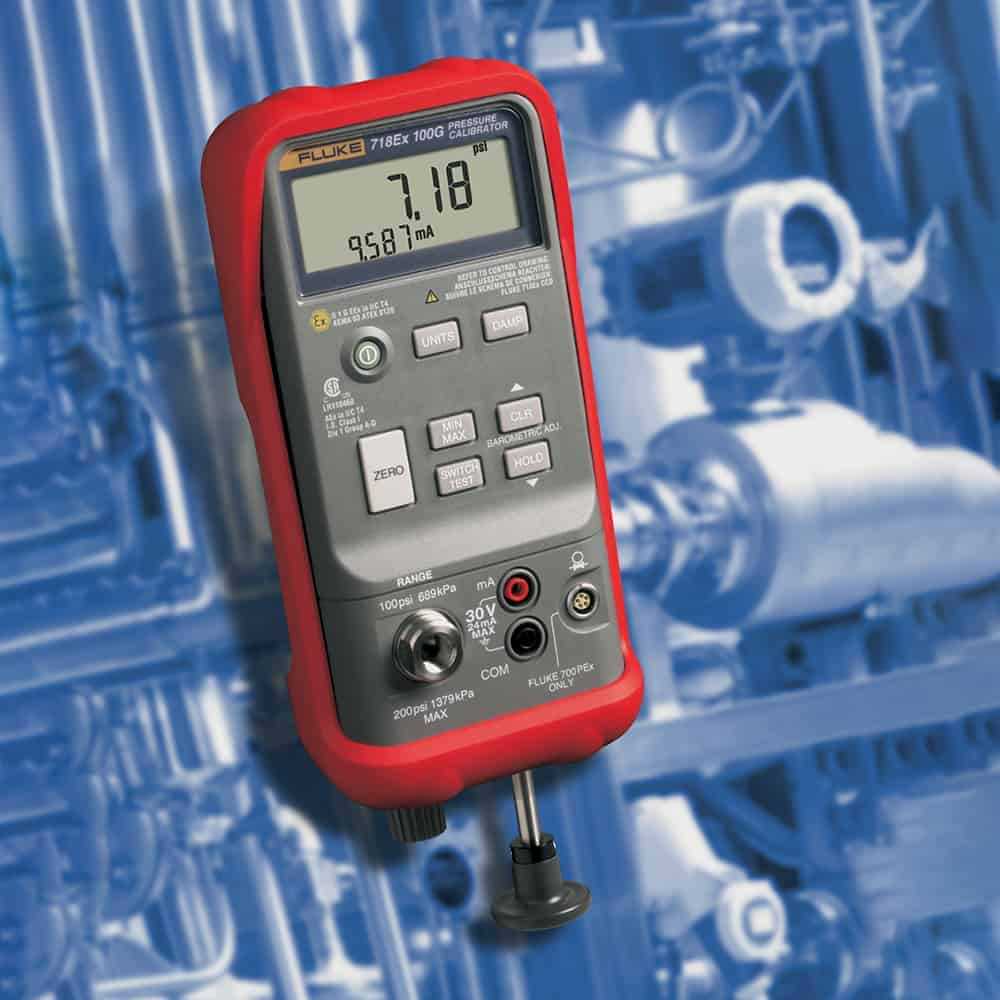

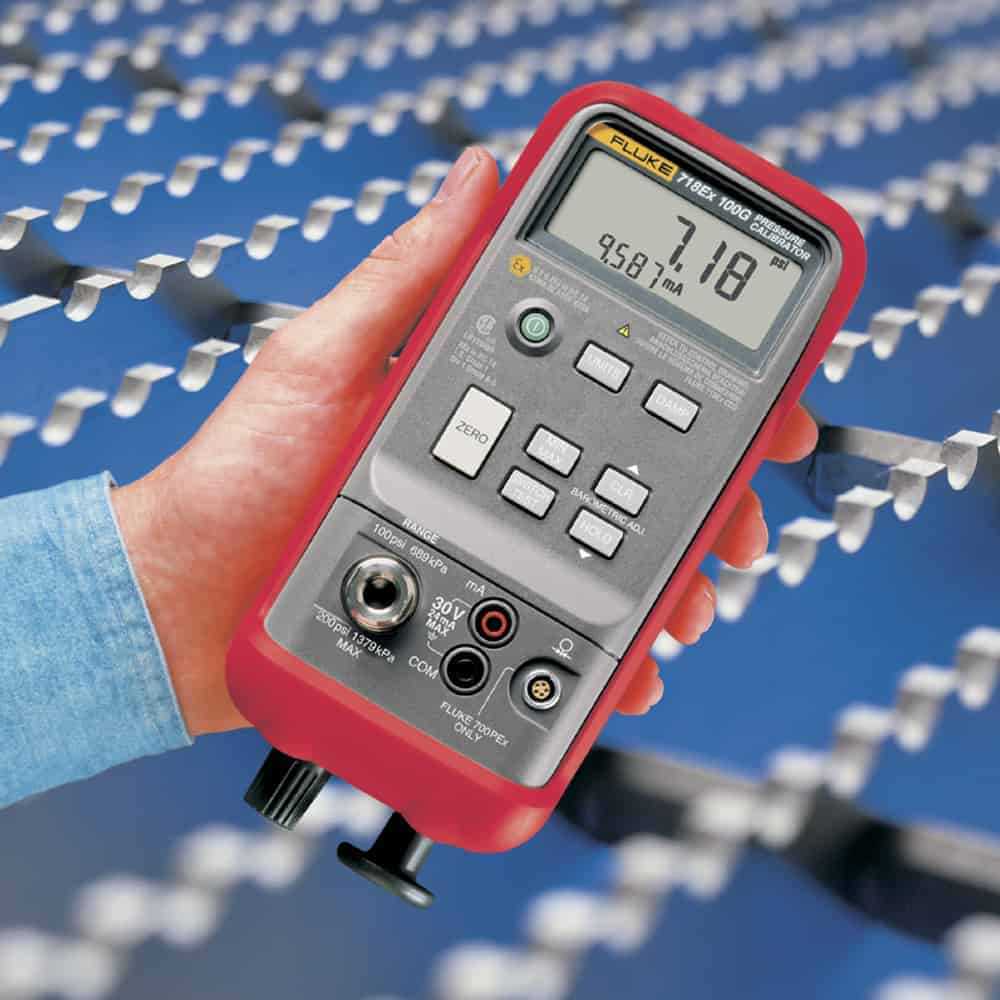

Fluke 718Ex 30G Intrinsically Safe Pressure Calibrator, -830 mBar to 2 Bar is a product engineered with precision, delivering exceptional performance
with features like aTEX II 1G EEx ia IIC T4 Compliant, builtin pressure vacuum hand pump with fine adjust vernier and bleed valve and pressure measurement to 005 of full span using an internal pressure sensor.
Maintive brings to you 100% genuine Pressure Calibrators from Fluke at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order 718Ex 30G Intrinsically Safe Pressure Calibrator, -830 mBar to 2 Bar today at the best price only from Maintive.
Features
ATEX II 1G EEx ia IIC T4 Compliant.
Built-in pressure / vacuum hand pump; with fine adjust vernier and bleed valve.
Pressure measurement to 0.05% of full span; using an internal pressure sensor.
Pressure measurement to 200 bar using any of eight intrinsically safe Fluke 700PEx Pressure Modules.
True RMS current and voltage measurements gives you accurate readings of non-sinusoidal waveforms
Multimeter functions include AC/DC voltage, resistance, capacitance, frequency, diode and continuity
Peak hold captures inrush currents and transients
Data hold and Max/Min functions
4000-count backlit display
Items Included
1 – Test Lead Set (TL75)
1 – Test Clip Set (AC72)
1 – Protective Red Holster
1 – 718Ex CCD Control Drawing
1 – User Manual
Specifications
Range-830 mbar to 2 bar (internal sensor) Over pressure: 3x FS
Resolution0.0001 bar
Accuracy0.05% FS
Current0 to 24 mA
Accuracy0.015% + 2 counts
FunctionsZero, Min, Max, Hold, Damp Note: for use with non-corrosive gasses
DisplayLCD, 5 digit pressure and current simultaneous
Operating temperature-10°C to 55°C
Storage temperature-40°C to 60°C
Operating Altitude3,000 m max
Size216 mm L x 94 mm W x 66 mm H (with holster)
Warranty3 years manufacturer's warranty
Range-830 mbar to 2 bar (internal sensor) Over pressure: 3x FS
Resolution0.0001 bar
Accuracy0.05% FS
Current0 to 24 mA
Accuracy0.015% + 2 counts
FunctionsZero, Min, Max, Hold, Damp Note: for use with non-corrosive gasses
DisplayLCD, 5 digit pressure and current simultaneous
