Electric Pressure Calibrator, -12 to 30 PSI, -850 mBar to 2 Bar

Model # 719 30G
AED 15,593.00Incl. of VAT
AED 17,325.0010% Off
Limited Stock
Use Coupon Code: WELCOME25
This item is eligible for return.
Delivery
Friday, Jun 2
FREE
Click & Collect
Today, 9:00 AM - 4:30 PM
FREE

Features

  • Electric pump for one handed pressure calibration
  • Best in class pressure measurement uncertainty of 0.025 %
  • Measure and source mA with best in class 0.015 % accuracy
  • Precision pressure adjust vernier
  • Variable release rate bleed valve for easy pressure adjustment

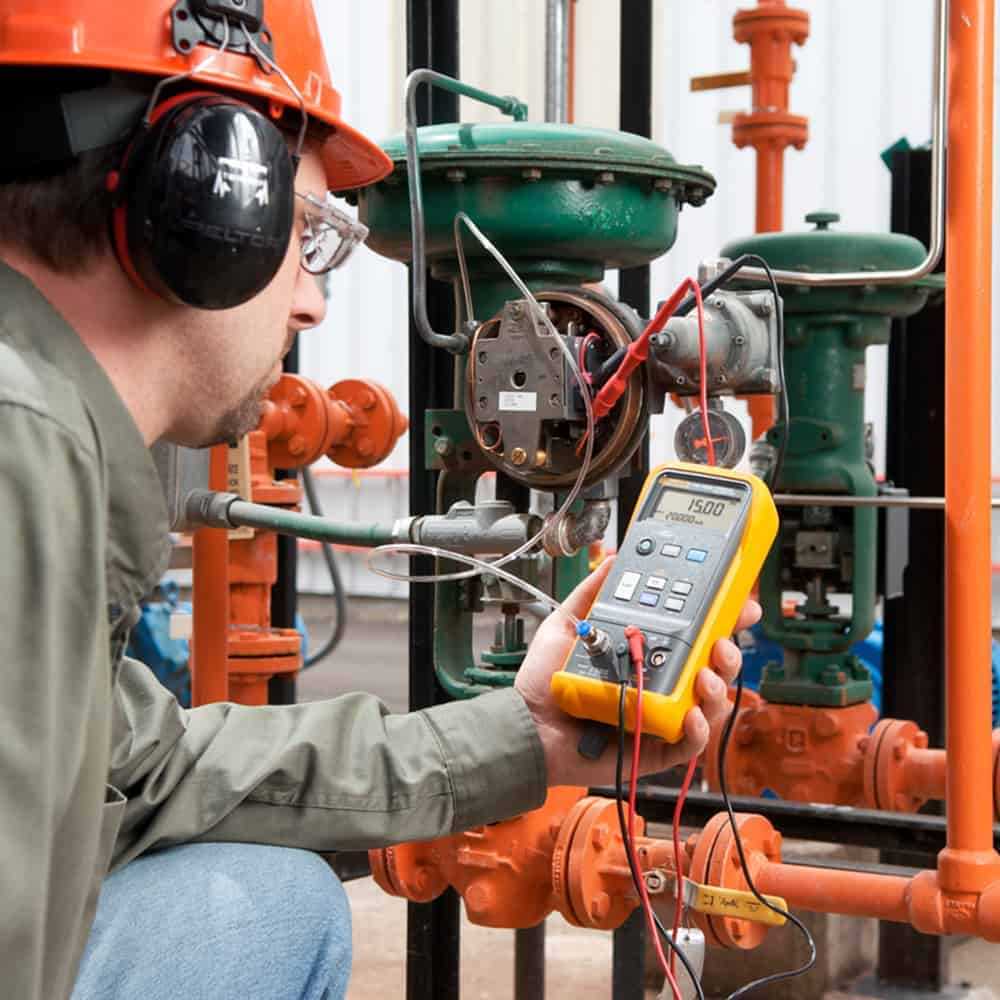

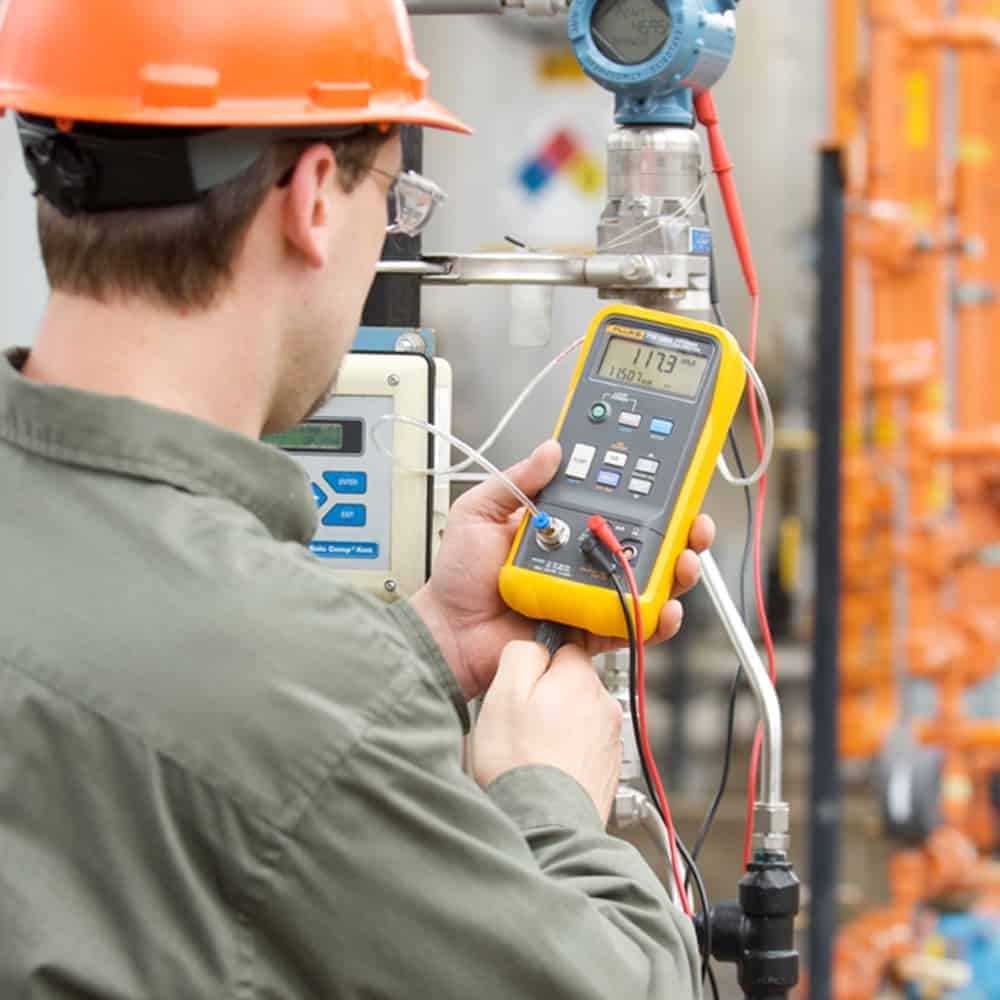

  • Ideal performance for high accuracy transmitter calibration
  • 30 PSI and 100 PSI pressure ranges
  • Programmable pressure calibrator pump limit
  • eliminates over-pressurization

Items Included

  • Electric Pressure Calibrator
  • 30 PSIG Test leads with alligator clips
  • Printed user’s manual and user’s manual on CD-ROM in 14 languages
  • Fluid trap
  • Carrying case
  • 1/4 inch NPT to 1/4 inch ISO adapter Accessory hose kit with (2) 1/8 inch quick fit adapters and 1 meter of hose
  • Traceable Certificate of Calibration

Specifications

  • Range-12 to 36 psi, -850 mbar to 2.4 bar
  • Resolution0.001 psi, 0.1 mbar
  • Accuracy0.025% range for 6 months, 0.035% for 1 year
  • Current0 to 24 mA
  • Accuracy0.015% + 2 counts
  • Storage temperature-30 to 60 °C
  • Operating temperature-10 to 55 °C
  • Shock1 meter drop test
  • Size60 mm x 87 mm x 210 mm
  • Weight912 g (2 lb)
  • Warranty3 years manufacturer's warranty
