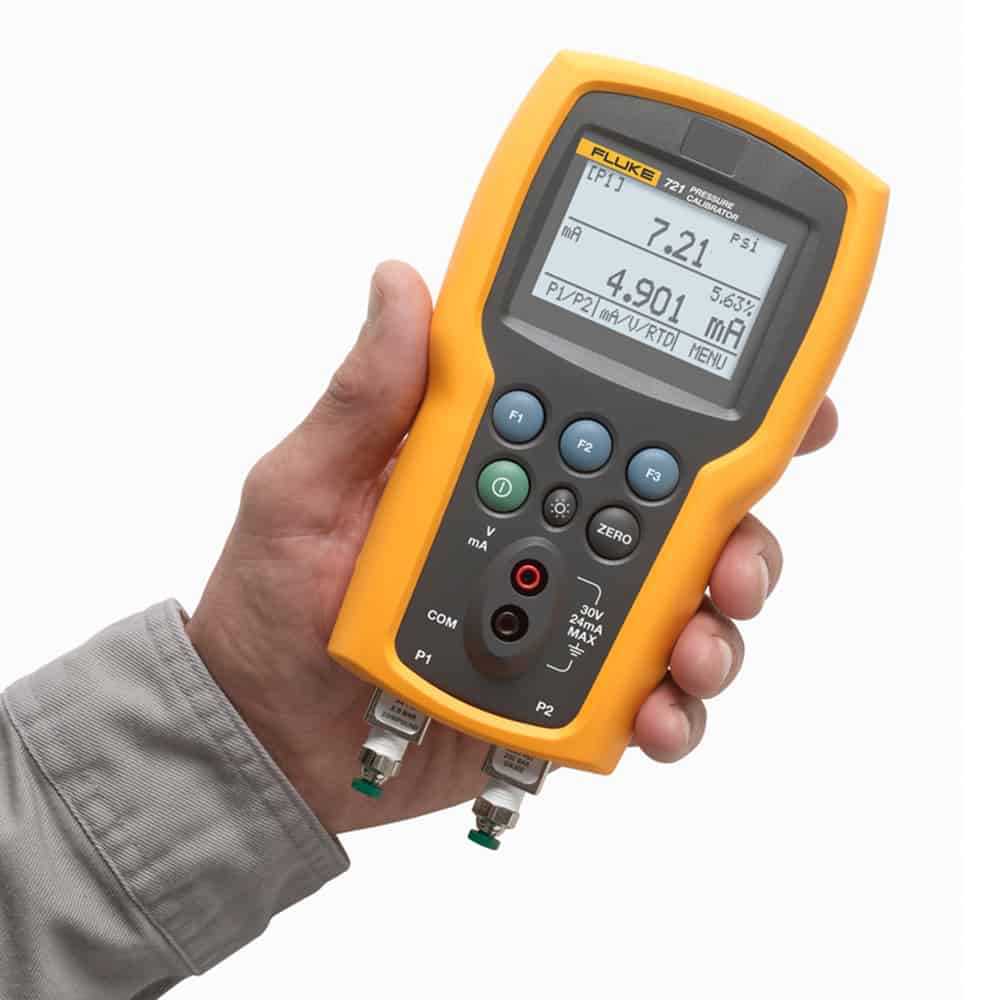

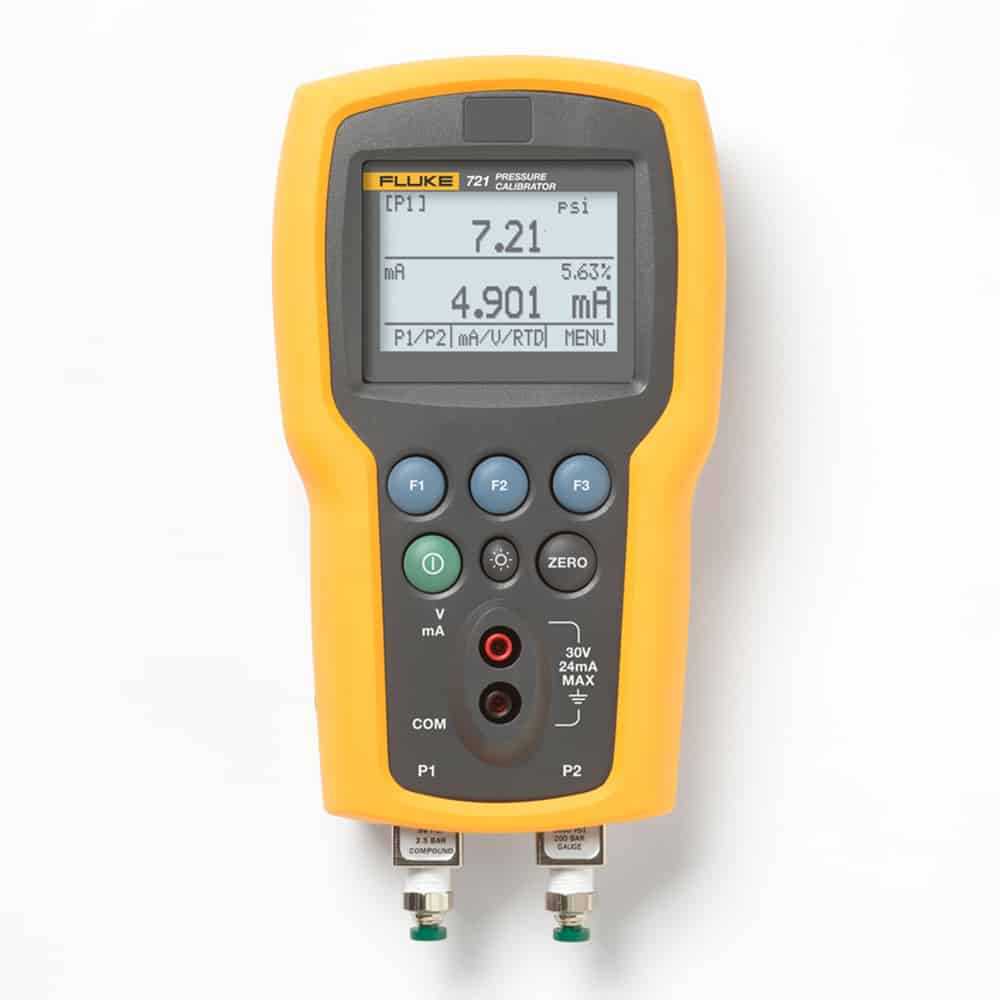

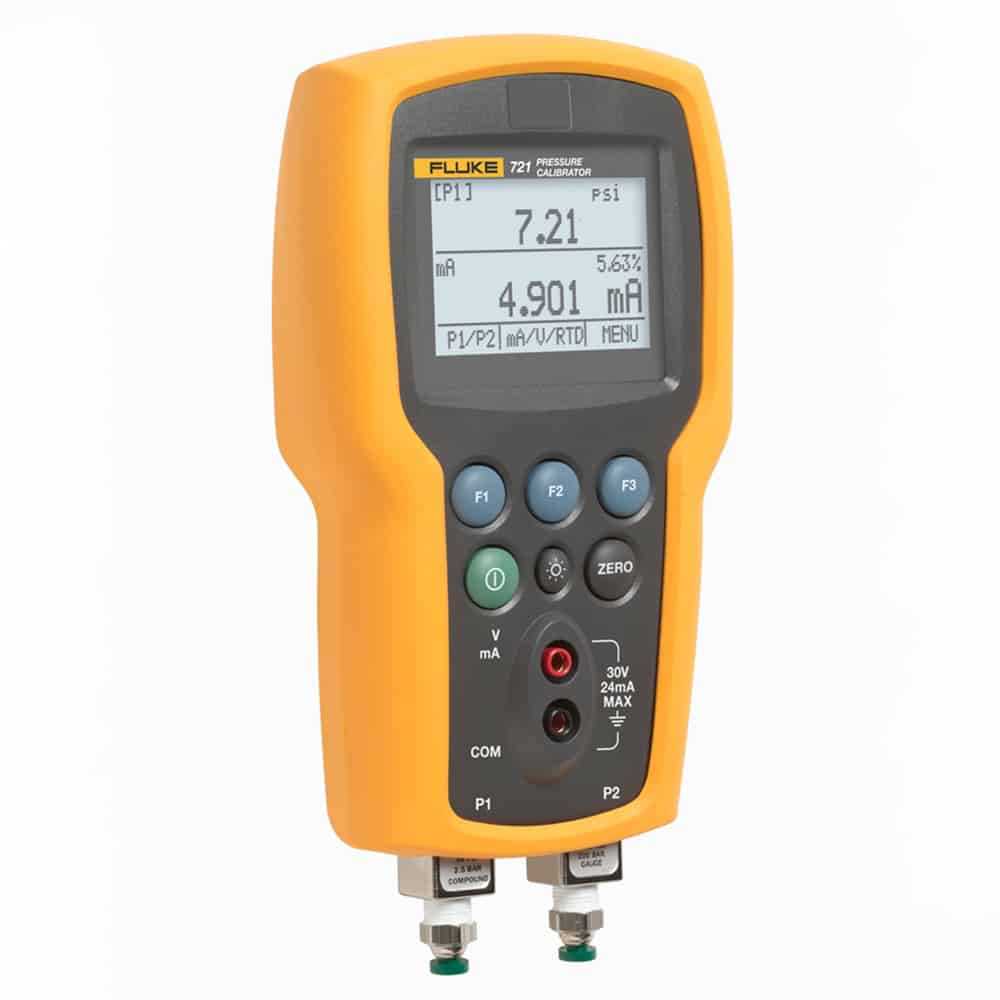

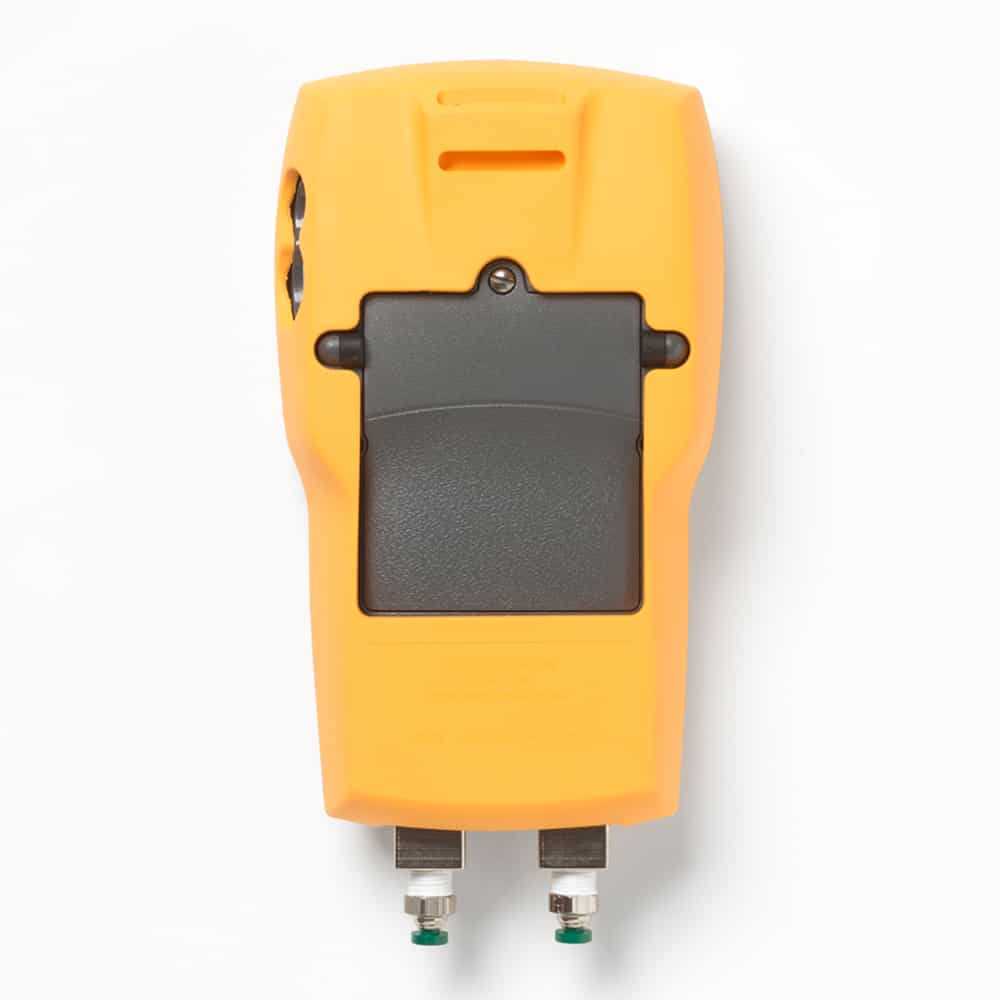

Fluke 721-1630 Dual Sensor Pressure Calibrator, 16/36 PSIG Low Pressure Sensor is a product engineered with precision, delivering exceptional performance
with features like dual Sensor Pressure Calibrator 16 PSIG 3000 PSIG, ideal for gas flow calibration custody transfer applications and two isolated stainless steel pressure sensors with 0025 accuracy.
Maintive brings to you 100% genuine Pressure Calibrators from Fluke at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order 721-1630 Dual Sensor Pressure Calibrator, 16/36 PSIG Low Pressure Sensor today at the best price only from Maintive.

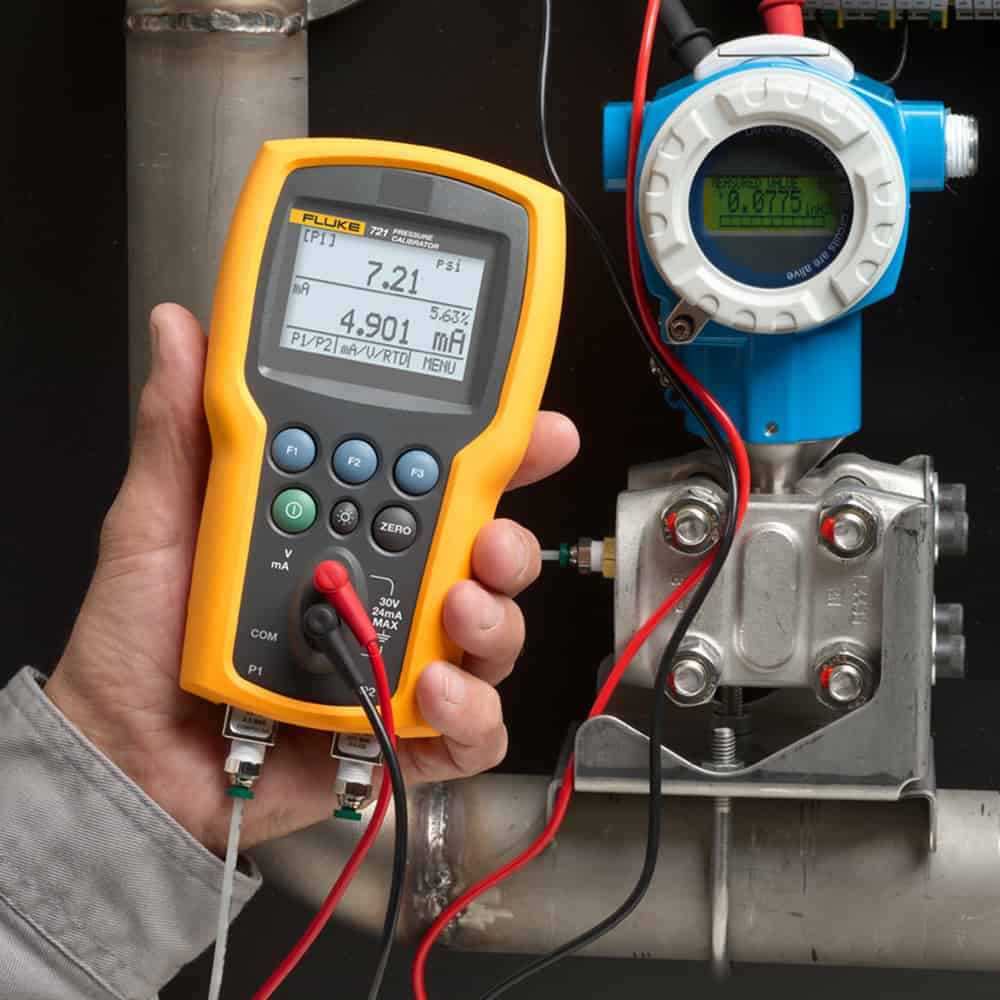

Ideal for gas flow calibration (custody transfer) applications
Two isolated; stainless steel; pressure sensors with 0.025 % accuracy
Pt100 RTD input for temperature measurement; (probe optional)
Can be configured by selecting either a 16 psig (1.1 bar) or 36 psig (2.48 bar) low pressure sensor and then adding your choice of 7 high pressure ranges
External pressure module connection supports all pressure modules (29 ranges) for even more measurement capability
Temperature-compensation ensures accuracy in field applications
Measure 4-20 mA signals
Internal 24 V Loop Power Supply can power a transmitter under test
Items Included
Dual Sensor Pressure Calibrator
16 PSIG
3000 PSIG Gentle carrying case Four (4) AA batteries Manual Trackable calibration certificates Cable testing
Specifications
Low Pressure Sensor-14 psi to +16 psi, -0.97 bar to 1.1 bar
High pressure sensor0 psi to +3000 psi, 0.00 bar to 200 bar
Current0 to 24 mA
Voltage0 to 30 VDC
Temperature measure-40 °C to 150 °C, (-40 °F to 302 °F) (RTD/Ohms)
Instrument setup recallLast used on power-up
Operating temperature-10°C to +50°C
Storage temperature (without batteries)-20°C to +60°C
Altitude2,000 m
Ingress protectionIP-40
Dimensions (H x W x D)7.9 x 4.3 x 2.3 in (20 x 11 x 5.8 cm)
Warranty3 years manufacturer's warranty
Low Pressure Sensor-14 psi to +16 psi, -0.97 bar to 1.1 bar
High pressure sensor0 psi to +3000 psi, 0.00 bar to 200 bar
Current0 to 24 mA
Voltage0 to 30 VDC
Temperature measure-40 °C to 150 °C, (-40 °F to 302 °F) (RTD/Ohms)
Instrument setup recallLast used on power-up
Operating temperature-10°C to +50°C
Storage temperature (without batteries)-20°C to +60°C
Altitude2,000 m
Ingress protectionIP-40
Dimensions (H x W x D)7.9 x 4.3 x 2.3 in (20 x 11 x 5.8 cm)
