Two isolated; stainless steel; pressure sensors with 0.025% f.s. accuracy Can be configured by selecting either a 16 psig (1.1 bar) or 36 psig (2.48 bar) low pressure sensor and then adding your choice of 7 high pressure ranges
External pressure module connection supports all pressure modules (29 ranges) for even more measurement capability
Temperature-compensation ensures accuracy in field applications
Pt100 RTD input for temperature measurement; accurate to 0.1°C (0.2°F) (Requires optional RTD probe sold separately)
Can be configured by selecting either a 16 psig (1.1 bar) or 36 psig (2.48 bar) low pressure sensor and then adding your choice of 7 high pressure ranges
Temperature-compensation ensures accuracy in field applications
Measure 4-20 mA signals
Internal 24 V Loop Power Supply can power a transmitter under test
Measure up to 30 V DC
Items Included

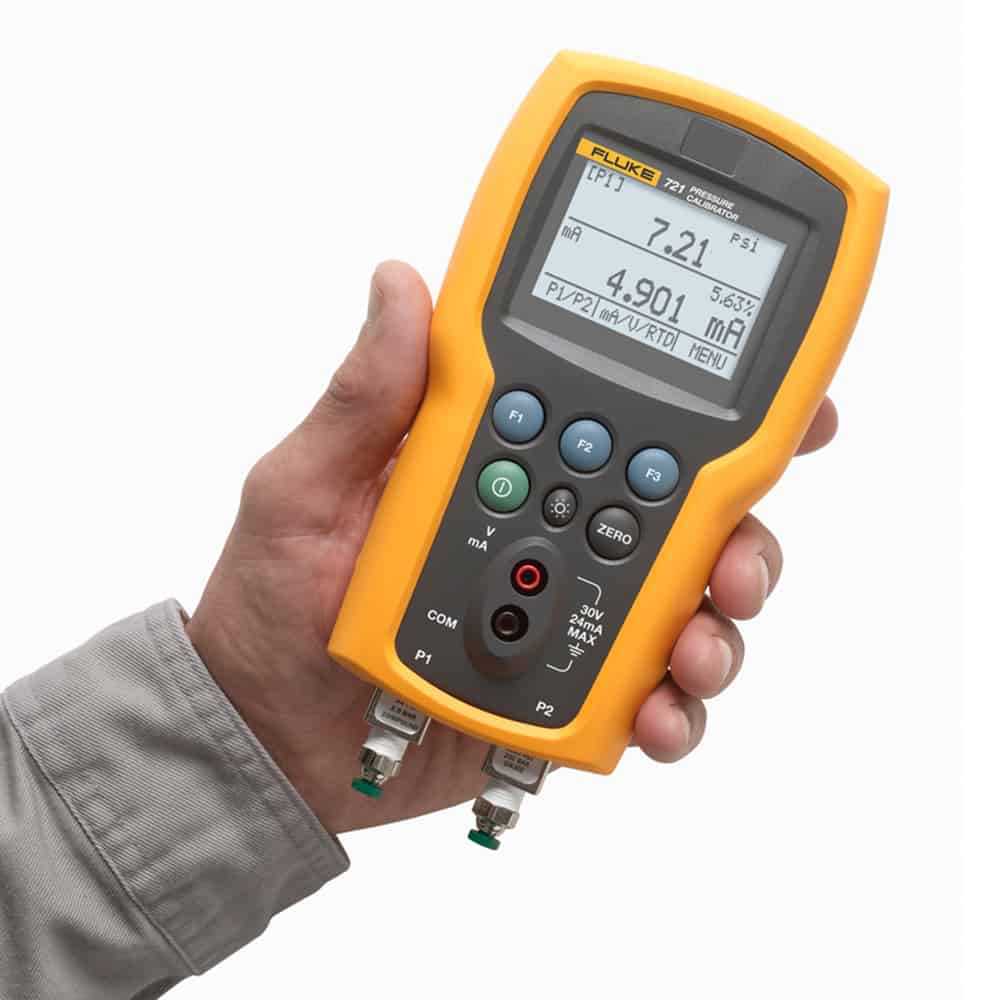

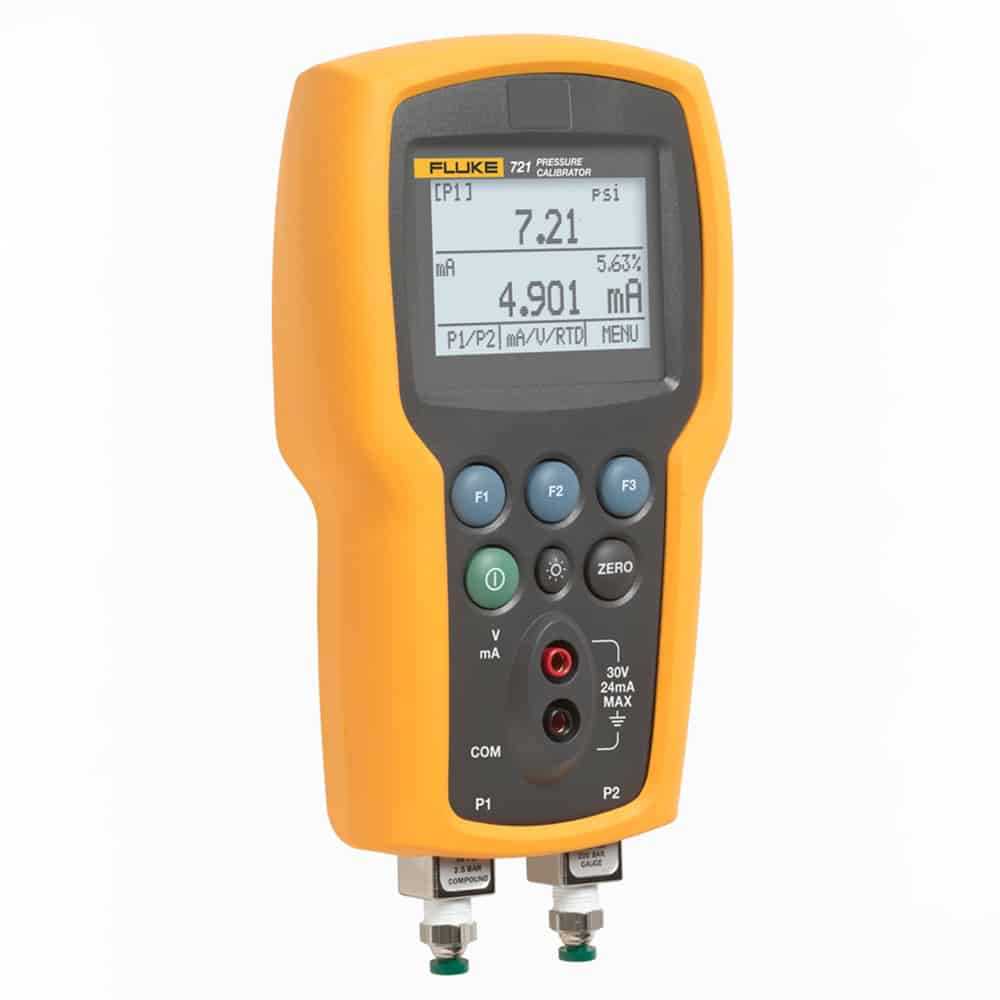

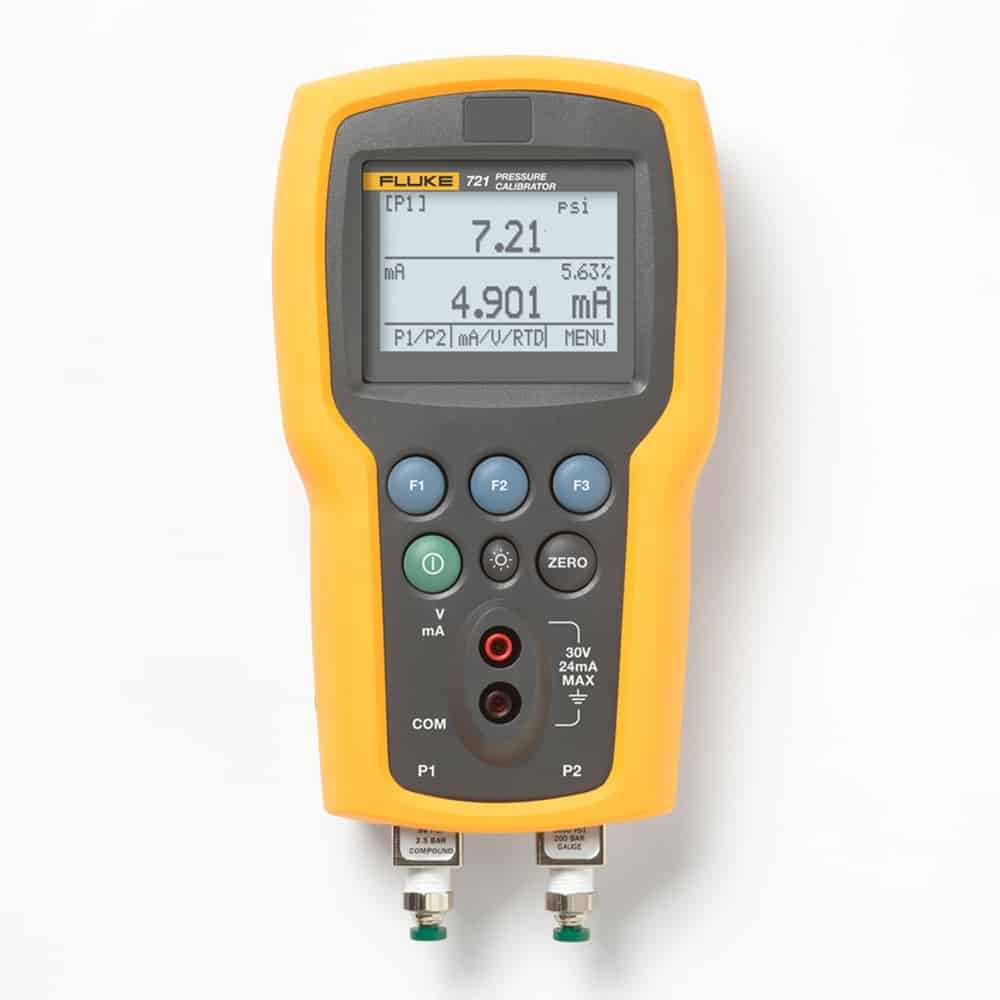

Dual Sensor Pressure Calibrator
16 PSIG
5000 PSIG Gentle carrying case Four (4) AA batteries Manual Trackable calibration certificates Cable testing
Specifications
Low Pressure Sensor-14 psi to +16 psi, -0.97 bar to 1.1 bar
High pressure sensor0 psi to +5000 psi, 0.00 bar to 345 bar
Current0 to 24 mA
Voltage0 to 30 VDC
Temperature measure-40 °C to 150 °C, (-40 °F to 302 °F) (RTD/Ohms)
Instrument setup recallLast used on power-up
Operating temperature-10°C to +50°C
Storage temperature (without batteries)-20°C to +60°C
Altitude2,000 m
Ingress protectionIP-40
Dimensions (H x W x D)7.9 x 4.3 x 2.3 in (20 x 11 x 5.8 cm)
Warranty3 years manufacturer's warranty
Low Pressure Sensor-14 psi to +16 psi, -0.97 bar to 1.1 bar
High pressure sensor0 psi to +5000 psi, 0.00 bar to 345 bar
Current0 to 24 mA
Voltage0 to 30 VDC
Temperature measure-40 °C to 150 °C, (-40 °F to 302 °F) (RTD/Ohms)
Instrument setup recallLast used on power-up
Operating temperature-10°C to +50°C
Storage temperature (without batteries)-20°C to +60°C
Altitude2,000 m
Ingress protectionIP-40
Dimensions (H x W x D)7.9 x 4.3 x 2.3 in (20 x 11 x 5.8 cm)
Warranty3 years manufacturer's warranty
