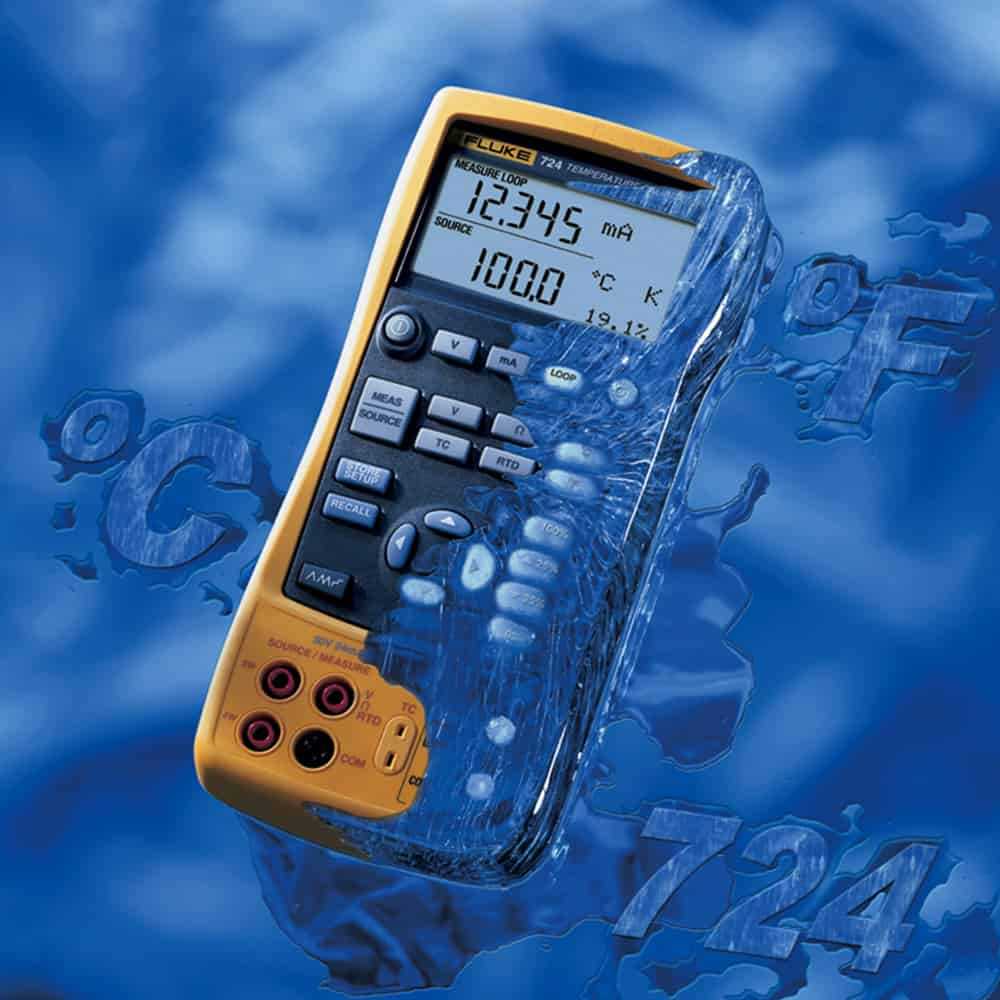

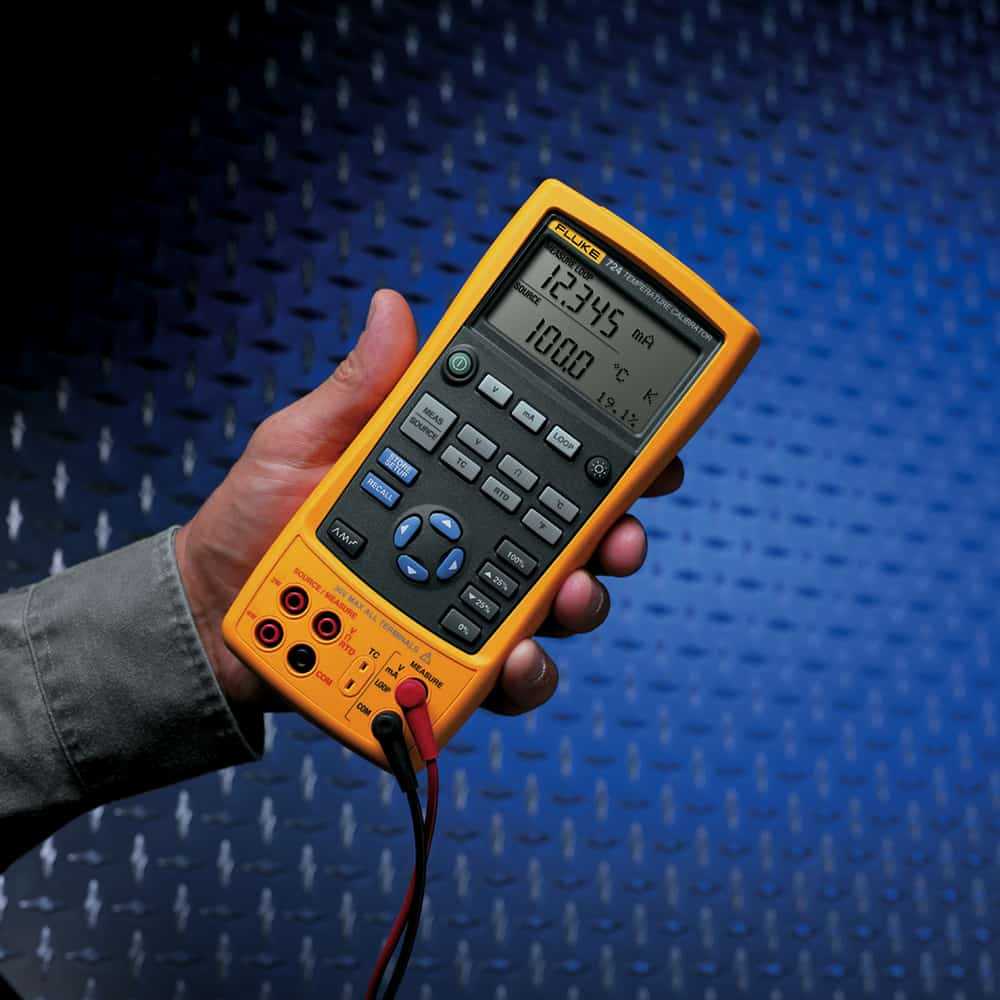

Fluke 724 Temperature Calibrator, 10 Thermocouple and 7 RTD Types is a product engineered with precision, delivering exceptional performance
with features like a splitscreen display The upper display allows you to measure volts current The lower display allows you to measure and source volts resistance temperature detectors thermocouples and ohms Backlight lets you work in poor light, a thermocouple TC inputoutput terminal and internal isothermal block with automatic referencejunction temperature compensation and store frequentlyused 8 test setups for later use.
Maintive brings to you 100% genuine Temperature Calibrators from Fluke at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order 724 Temperature Calibrator, 10 Thermocouple and 7 RTD Types today at the best price only from Maintive.
Features

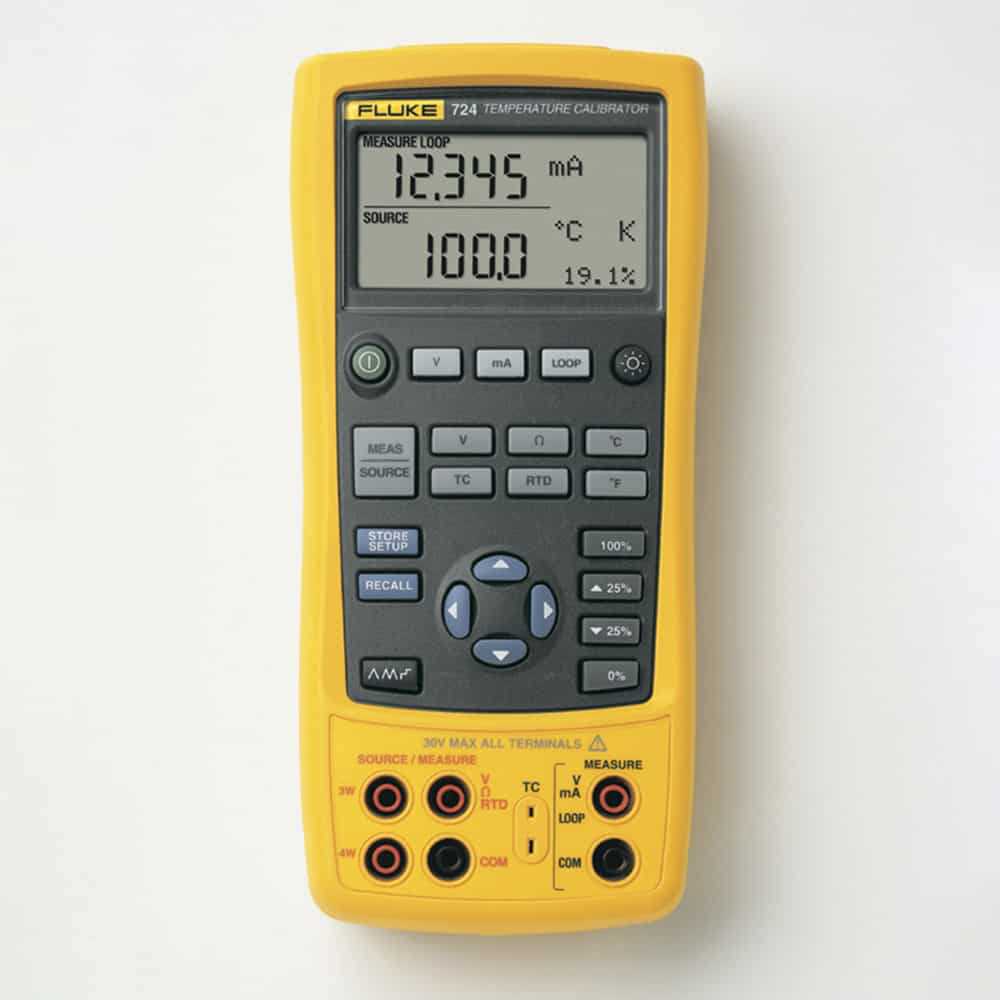

A split-screen display. The upper display allows you to measure volts; current. The lower display allows you to measure and source volts; resistance temperature detectors; thermocouples; and ohms. Backlight lets you work in poor light
A thermocouple (TC) input/output terminal and internal isothermal block with automatic reference-junction temperature compensation.
Store frequently-used 8 test setups for later use.
Manual stepping and execute remote tests with auto step and auto ramp
Items Included
AC70A Test Clips
One pair of stackable test leads
TL75 Test Leads
CE and CSA Markings
Printed User Manual
Users manuals on CD-ROM
NIST- traceable calibration report and data
Specifications
Voltage Measurement30.000 V DC
Current Measurement24.000 mA DC
Resistance0.0 to 400.0 Ω
AccuracyNI-120
Ramp functionsSource functions
RampsSlow ramp, Fast ramp, 25% step-ramp
Loop Power Voltage24V
Loop Power Current22mA
Operating temperature-10°C to 55°C
Storage temperature-20°C to 71°C
Humidity (without condensation)90%
Size96 x 200 x 47 mm
Warranty3 years manufacturer's warranty
Voltage Measurement30.000 V DC
Current Measurement24.000 mA DC
Resistance0.0 to 400.0 Ω
AccuracyNI-120
Ramp functionsSource functions
RampsSlow ramp, Fast ramp, 25% step-ramp
Loop Power Voltage24V
Loop Power Current22mA
Operating temperature-10°C to 55°C
Storage temperature-20°C to 71°C
Humidity (without condensation)90%
Size96 x 200 x 47 mm
Warranty3 years manufacturer's warranty
