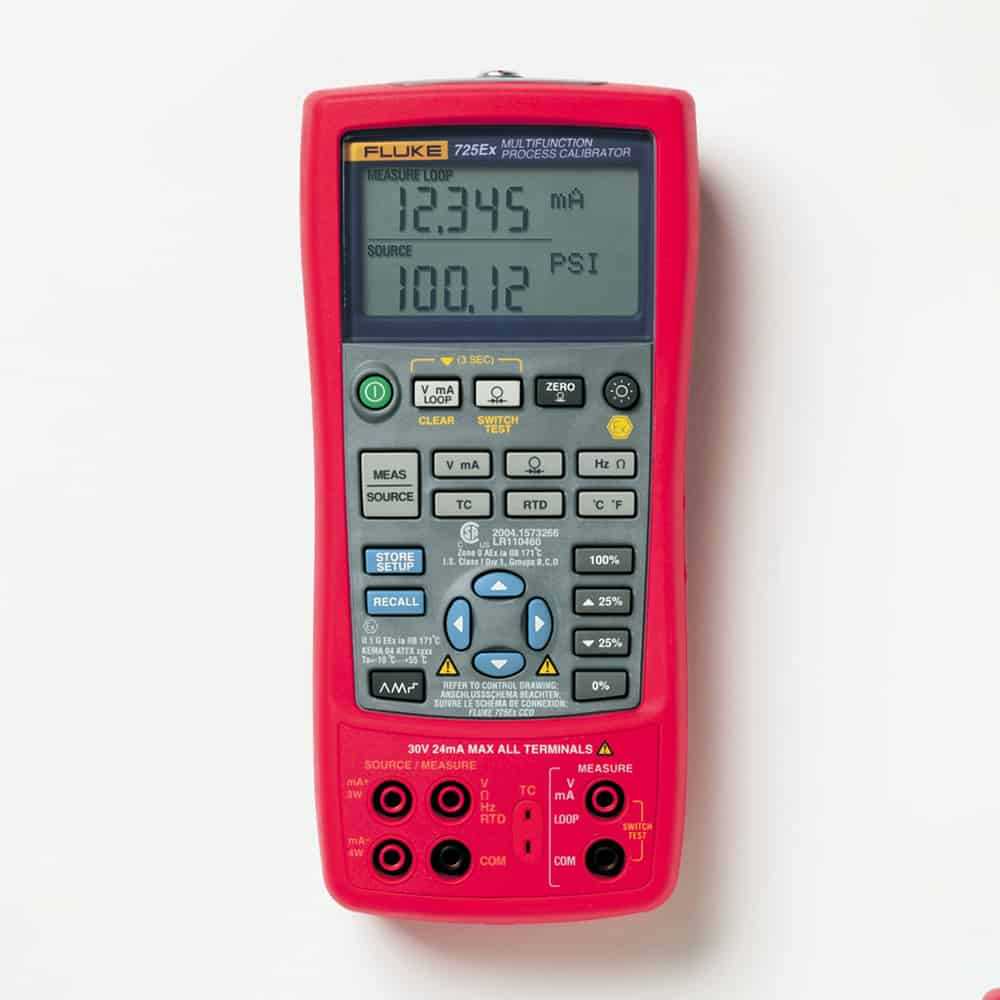

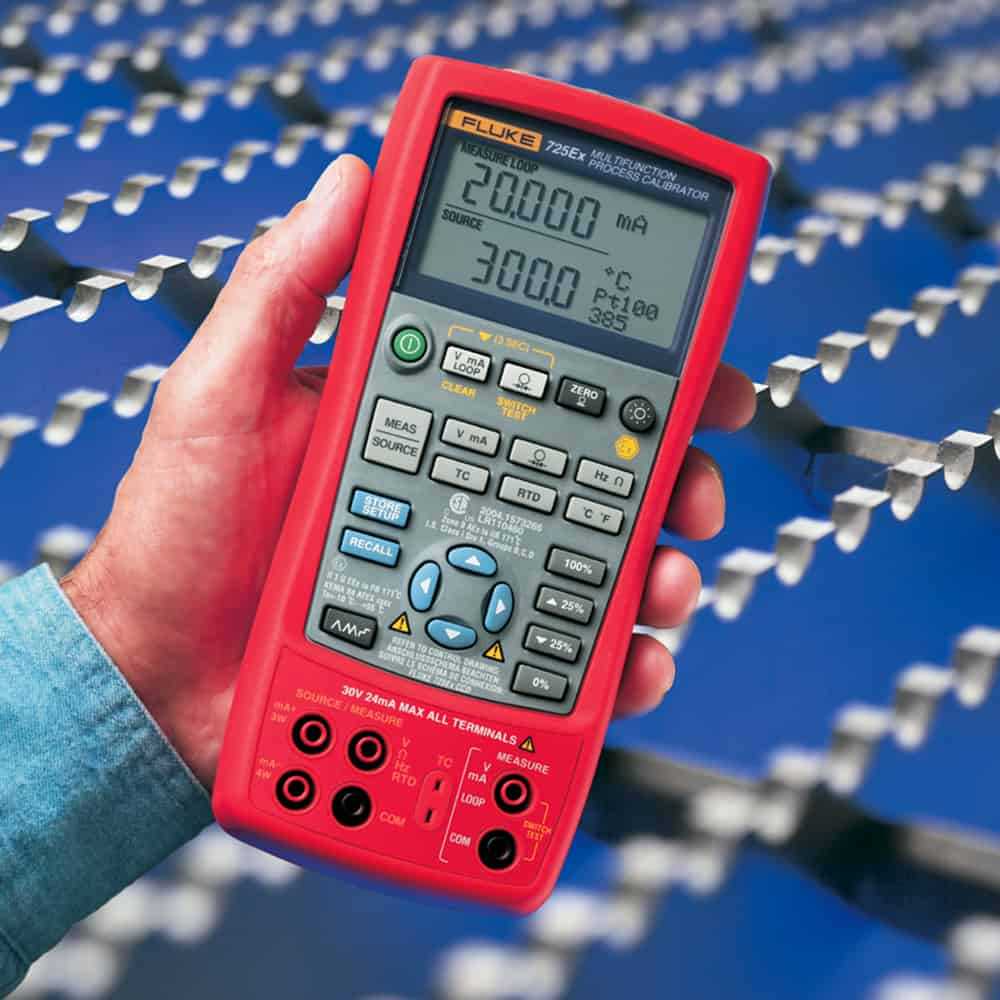

Fluke 725Ex
Fluke 725Ex
Fluke 725Ex
Fluke 725Ex
Fluke 725Ex
Fluke 725Ex
Fluke 725Ex

Intrinsically Safe Multifunction Process Calibrator, 30V, 24mA

Model # 725Ex
AED 25,200.00Incl. of VAT
Fluke Authorised Online Store
Buy with 0% installments and pay AED for months with select banks. Learn more
Use Coupon Code: WELCOME25

Important Information: Ensure Genuine Products and Warranty Coverage

This item is eligible for return.
Orders over AED 99 ship free in the UAE.
Want to know when it's back in stock?

You may also like...

Product Information

Fluke 725Ex Intrinsically Safe Multifunction Process Calibrator, 30V, 24mA is a product engineered with precision, delivering exceptional performance

with features like aTEX II 1 G Ex ia IIB 171°C KEMA 04ATEX 1303X, iS Class I Division 1 Groups BD 171°C compliance and measure Volts DC mA RTDs thermocouples frequency and ohms.
Maintive brings to you 100% genuine Multifunction Calibrators from Fluke at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order 725Ex Intrinsically Safe Multifunction Process Calibrator, 30V, 24mA today at the best price only from Maintive.

Features

  • ATEX II 1 G Ex ia IIB 171°C KEMA 04ATEX 1303X
  • I.S. Class I; Division 1 Groups B-D; 171°C compliance
  • Measure Volts DC; mA; RTDs; thermocouples; frequency and ohms
  • Source or simulate Volts dc; mA; RTDs; thermocouples; frequency and ohms
  • Pressure switch test function to capture set, reset, and deadband values
  • Small, streamlined shape, and rugged, reliable design that stands up to field use
  • Simple, push-button user interface for easy operation
  • Provides two-channel simultaneous source and measure capability to calibrate transmitters
  • Powers transmitters during test using loop supply

Items Included

  • 1 – Test Lead Set (TL75)
  • 1 – Test Clip Set (AC72)
  • 2 – Stackable Test Leads
  • 1 – Protective Red Holster
  • 1 – 725Ex CCD Control Drawing
  • 1 – 5/64 in. Short Arm Hex Key
  • 4 – AA Batteries
  • 1 – Statement of Quality Assurance Practices
  • 1 – User Manual

Specifications

  • Voltage Measurement-10mV to 30V
  • Current Measurement24mA
  • Resistance0 to 3200Ω
  • Frequency1 to 10kHz
  • RampsSlow ramp, Fast ramp, 25% step-ramp
  • Loop Power Voltage12V
  • Loop Power Current22mA
  • Steps25% of range, 100% of range
  • Size130 x 236 x 61 mm (5.188 x 9.291 x 2.402 in)
  • Warranty3 Years manufacturer's warranty

Downloads

pdf Thumbnail
Datasheet 1
pdf Thumbnail
User Manual 1
