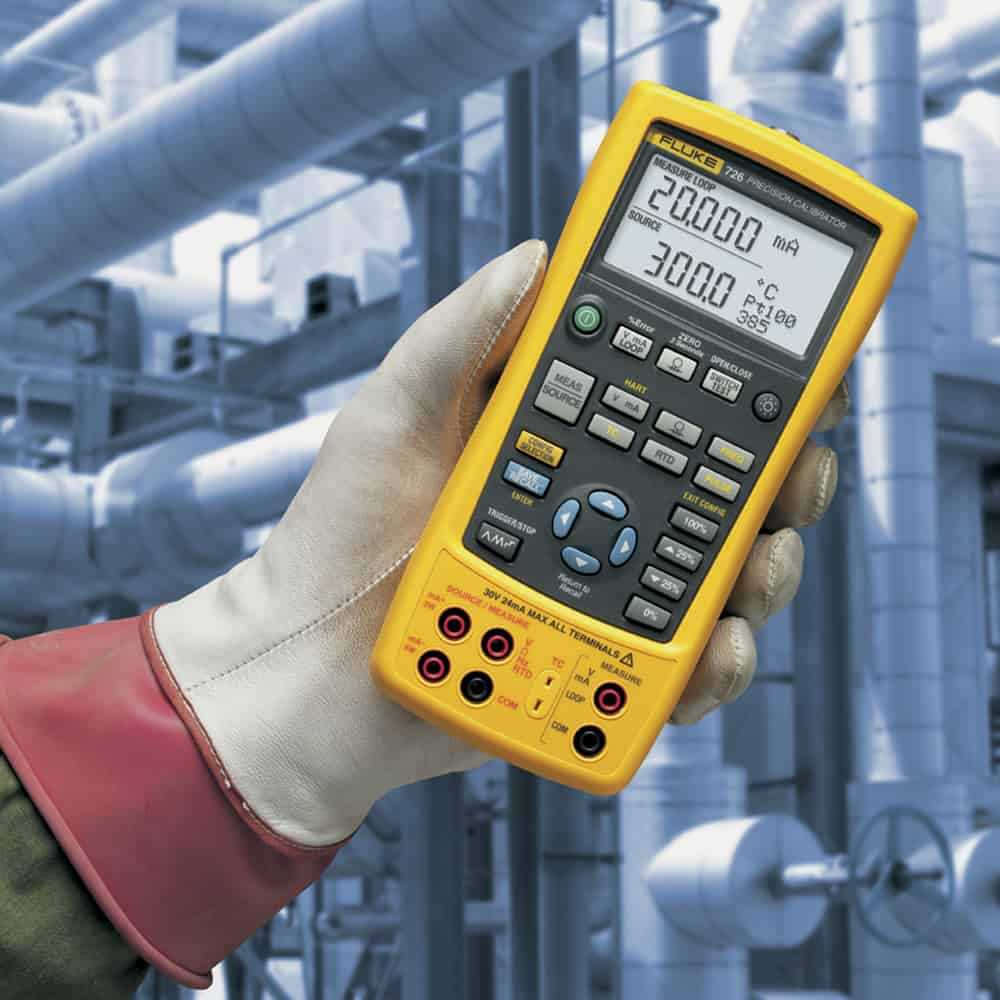

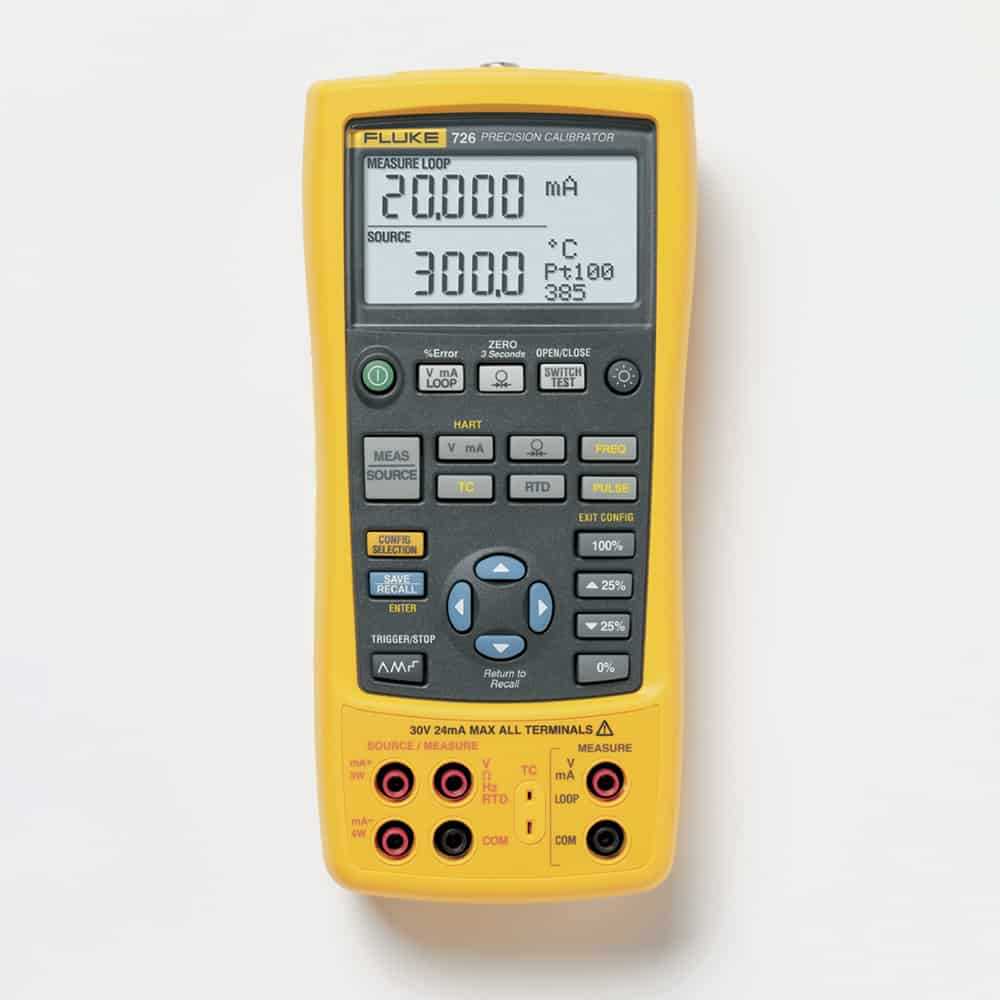

Fluke 726 Precision Multifunction Process Calibrator, -10mV to 30V, 24mA is a product engineered with precision, delivering exceptional performance
with features like more precise measurement and calibration source performance accuracies of 001, two separate channels measure source and view process signals simultaneously and measure volts mA RTDs thermocouples frequency and resistance to test sensors and transmitters.
Maintive brings to you 100% genuine Multifunction Calibrators from Fluke at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order 726 Precision Multifunction Process Calibrator, -10mV to 30V, 24mA today at the best price only from Maintive.
Features
More precise measurement and calibration source performance; accuracies of 0.01%.
Two separate channels; measure; source and view process signals simultaneously
Measure volts; mA; RTDs; thermocouples; frequency; and resistance to test sensors and transmitters
Source/simulate volts; mA; thermocouples; RTDs; frequency; and pressure to calibrate transmitters
Capture the set, reset, and deadband of a pressure switch with the integrated switch test
Calculate the transmitter error % to interpret calibration results without the use of a calculator
Perform fast linearity tests with the auto-step and auto-ramp features
Power a transmitter during test using 24 V loop supply and simultaneous mA measurement
Items Included
One set of AC72 alligator clips
One set of stackable test leads
One set of TL75 testleads
User manuals
NIST- traceable calibration report and data
Specifications
Voltage Measurement-10mV to 30V
Current Measurement24mA
Resistance0 to 4000Ω
Frequency1 to 15kHz
RampsSlow ramp, Fast ramp, 25% step-ramp
Loop Power Voltage24V
Loop Power Current22mA
Steps25% of range, 100% of range
Size130 x 236 x 61 mm (5.188 x 9.291 x 2.402 in)
Warranty3 years manufacturer's warranty
Voltage Measurement-10mV to 30V
Current Measurement24mA
Resistance0 to 4000Ω
Frequency1 to 15kHz
RampsSlow ramp, Fast ramp, 25% step-ramp
Loop Power Voltage24V
Loop Power Current22mA
Steps25% of range, 100% of range
Size130 x 236 x 61 mm (5.188 x 9.291 x 2.402 in)
Warranty3 years manufacturer's warranty
