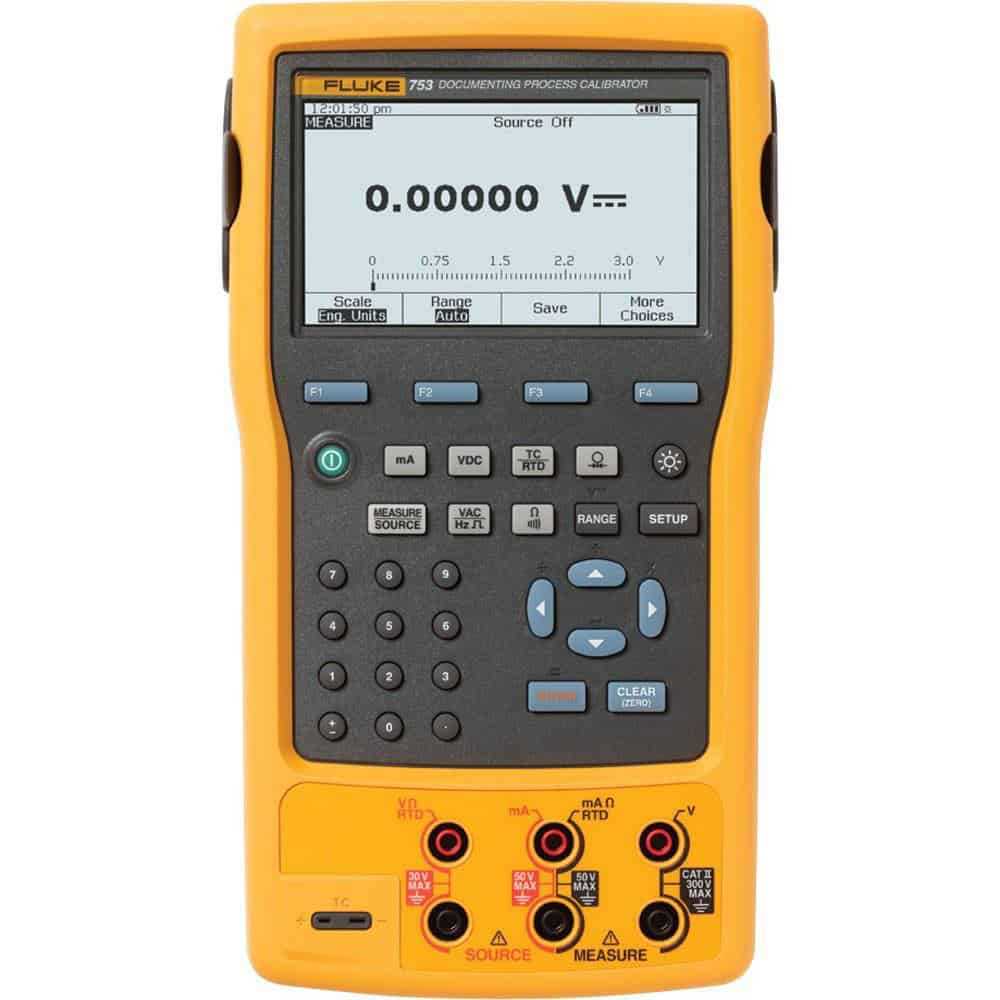

Fluke 753 Documenting Process Calibrator With Increased Accuracy, 100mV to 300V DC, 30 to 110mA is a product engineered with precision, delivering exceptional performance
with features like sourcesimulate volts mA thermocouples RTDs frequency ohms and pressure to calibrate transmitters, power transmitters during test using loop supply with simultaneous mA measurement and measuresource pressure using any of 29 Fluke 700Pxx Pressure Modules.
Maintive brings to you 100% genuine Multifunction Calibrators from Fluke at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order 753 Documenting Process Calibrator With Increased Accuracy, 100mV to 300V DC, 30 to 110mA today at the best price only from Maintive.
Features
Source/simulate volts; mA; thermocouples; RTDs; frequency; ohms; and pressure to calibrate transmitters
Power transmitters during test using loop supply with simultaneous mA measurement
Measure/source pressure using any of 29 Fluke 700Pxx Pressure Modules
Create and run automated as-found/as-left procedures to satisfy quality programs or regulations. Record and document results
Holds up to a full week of downloaded procedures and calibration results
Offers many flexible features like autostep, custom units, user-entered values during test, one-point and two-point switch testing, square root DP flow testing, programmable measurement delay and more.
Offers compatibility with DPCTrack2 and many other asset management software packages
Bright white dual display for reading both sourced and measured parameters simultaneously
Easy-to-use multi-lingual interface
Items Included
BC7240 battery charger
Li-on BP7240 battery pack
DPCTrack 2
Sample Software Instruction manual
NIST-traceable calibration report and data
Three sets of TP220 test probes with three sets of Ã’extended tooth” alligator clips
Two sets AC280 hook clips
C799 Soft Field Case
USB communication cable
Specifications
Voltage Measurement100 mV, 3 V, 30 V, 300 V DC
Voltage Measurement3(40 to 500 Hz)/0.001 V, 30 (40 to 500 Hz)/0.01 V, 300 (40 to 500 Hz)/0.1 V AC
Current Measurement30 mA, 110 mA DC
Resistance10Ω, 100Ω, 1 kΩ, 10 kΩ
Frequency1.00 to 110.00 Hz/0.01 Hz,
Ramp Rate4 steps/second
Data Logging1, 2, 5, 10, 20, 30, or 60 readings/minute
Loop Power VoltageSelectable, 26 V
Operating Temperature14 to 122°F (-10 to 50°C)
Storage Temperature-4 to 140°F (-20 to 60°C)
Dust/Water ResistanceMeets IP52, IEC 529
Dimensions5.4 x 9.6 x 2.5" (136 x 245 x 63 mm)
Warranty3 years manufacturer's warranty
Voltage Measurement100 mV, 3 V, 30 V, 300 V DC
Voltage Measurement3(40 to 500 Hz)/0.001 V, 30 (40 to 500 Hz)/0.01 V, 300 (40 to 500 Hz)/0.1 V AC
Current Measurement30 mA, 110 mA DC
Resistance10Ω, 100Ω, 1 kΩ, 10 kΩ
Frequency1.00 to 110.00 Hz/0.01 Hz,
Ramp Rate4 steps/second
Data Logging1, 2, 5, 10, 20, 30, or 60 readings/minute
