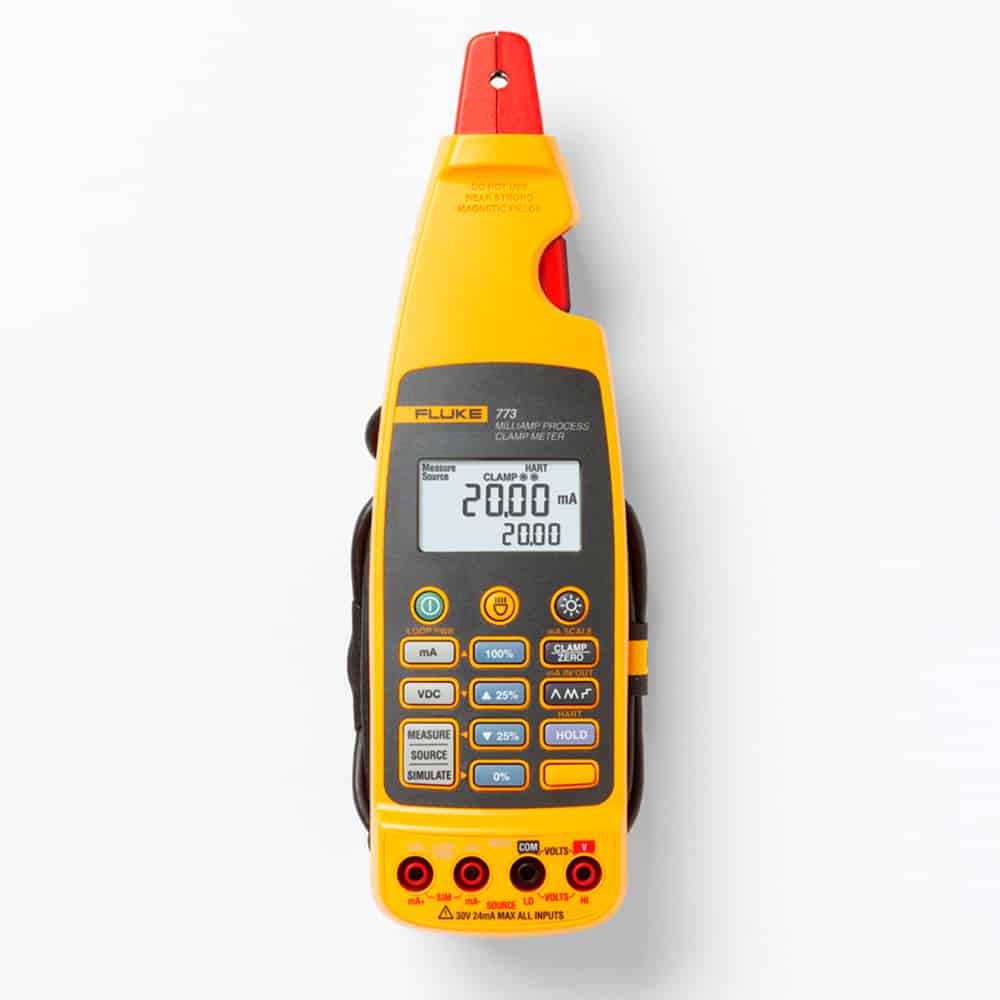

Milliamp Process Clamp Meter, 0 To 20.99mA

Model # 773
AED 5,906.00Incl. of VAT
AED 6,563.0010% Off
Use Coupon Code: WELCOME25
This item is eligible for return.
Orders over AED 99 ship free in the UAE.
Want to know when it's back in stock?

Features

  • Best in class 0.2 % accuracy
  • 0.01 mA resolution and sensitivity
  • Measure 4 to 20 mA signals without Inchbreaking the loop Inch
  • Measure mA signals for PLC and control system analog I/O
  • Simulates 4-20 mA signals for testing control system I/O
  • Sources 4 to 20 mA signals for testing control system I/O or I/Ps
  • Includes simultaneous mA in-circuit measurement with 24V loop power for powering and testing transmitters
  • Features a detachable clamp with extension cable for measurements in tight locations
  • Captures and displays changing measurements with Hold function

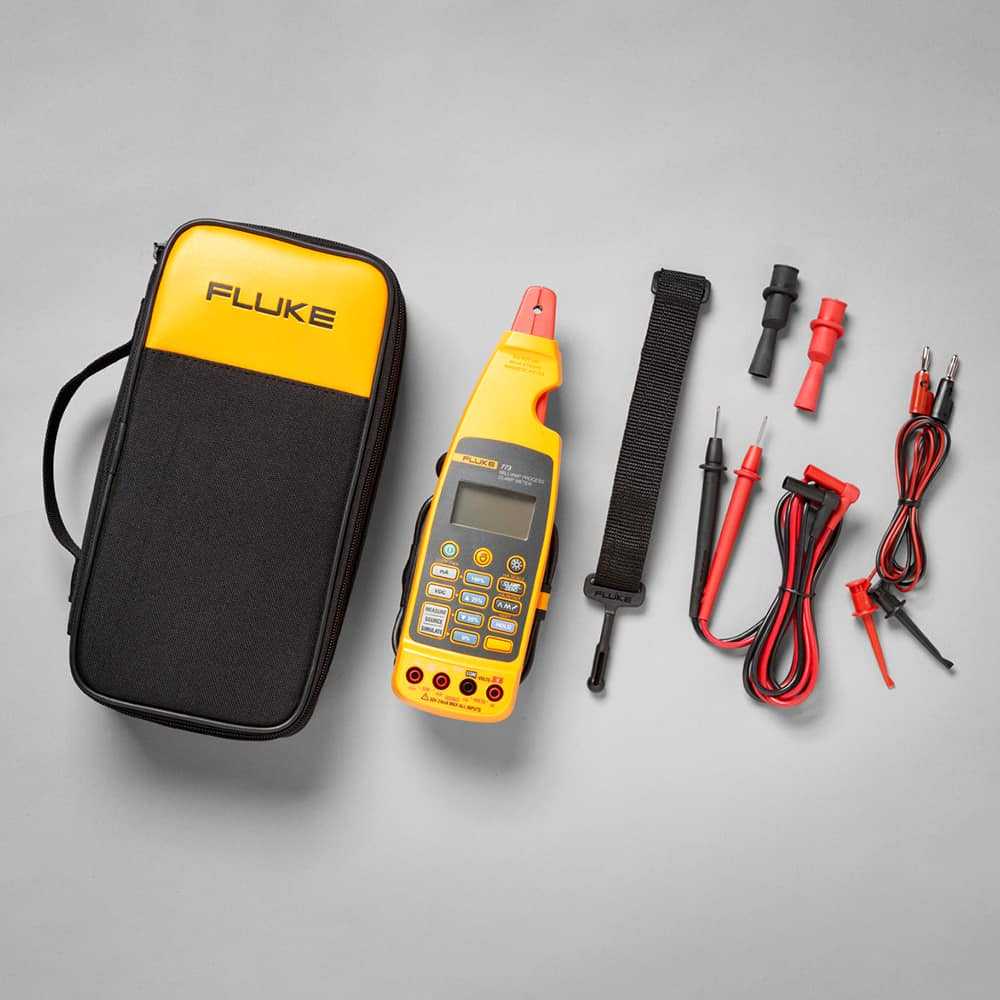

Items Included

  • Four AA alkaline batteries (installed) Soft carrying case
  • TL75 test leads
  • AC 72 detachable clip
  • TL 940 mini hook test leads
  • Instruction sheet

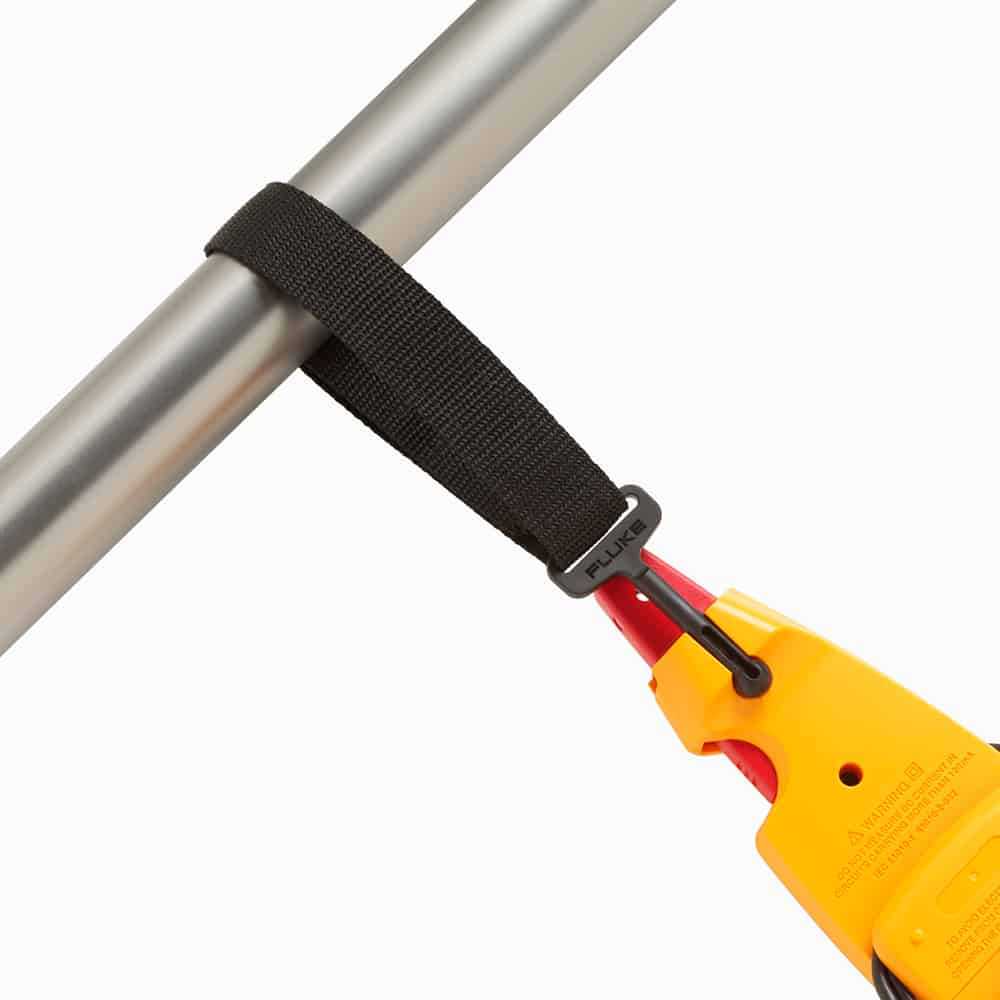

  • Hanging tool with hook and loop strap

Specifications

  • Current Measurement0 to 20.99 mA, measured with clamp
  • Current Measurement0 to 24 mA, measured in series with test jacks
  • Diameter of measurable conductor0.177" or 4.5 mm max
  • Operating temperature-10 to 50ºC
  • Storage temperature-25 to 60ºC
  • Operating humidity< 90% @ <30ºC, < 75% @ 30 to 55ºC
  • Operating altitude0 to 2000 m
  • Size44 x 70 x 246 mm (2 7/8 x 5 ¾ x 11 5/8 in)
  • VibrationRandom 2 g, 5 to 500 Hz
  • Temperature coefficient0.01% ºC (< 18ºC or > 28ºC)
  • Power, battery life(4) AA 1.5 V Alkaline, IEC LR6, 12 hours in mA source into 500 ohms
  • Resolution / range0 to 20.99 mA
  • Warranty3 years manufacturer's warranty
