Brand: Fluke

Process Meter, 20mA DC, 1000V DC

Name: Process Meter, 20mA DC, 1000V DC
Brand: Fluke
SKU: 787B
Rating: 4 (9 reviews)

Model # 787B

10+ Ratings

AED 5,250.00Incl. of VAT

Limited Stock

Add Certified Calibration (AED 263.00)

Buy with 0% installments and pay AED for months with select banks. Learn more

Use Coupon Code: WELCOME25

Key Features

Brand: Fluke
Model: 787B
Warranty: 3 years manufacturer's warranty

See Full Product Details

Important Information: Ensure Genuine Products and Warranty Coverage

AED 5,250.00Incl. of VAT

This item is eligible for return.

FREE delivery in the UAE

Delivery

Saturday, Sep 7

FREE

Delivery by Saturday, Sep 7*

When you order in 5 Hours, 14 minutes.

Click & Collect

Today, 9:00 AM - 4:30 PM

Want it Today?
Select Click & Collect on checkout within the next 8 Hours, 14 minutes.

4 Left In Stock

Secure Transaction

COD

Product Information

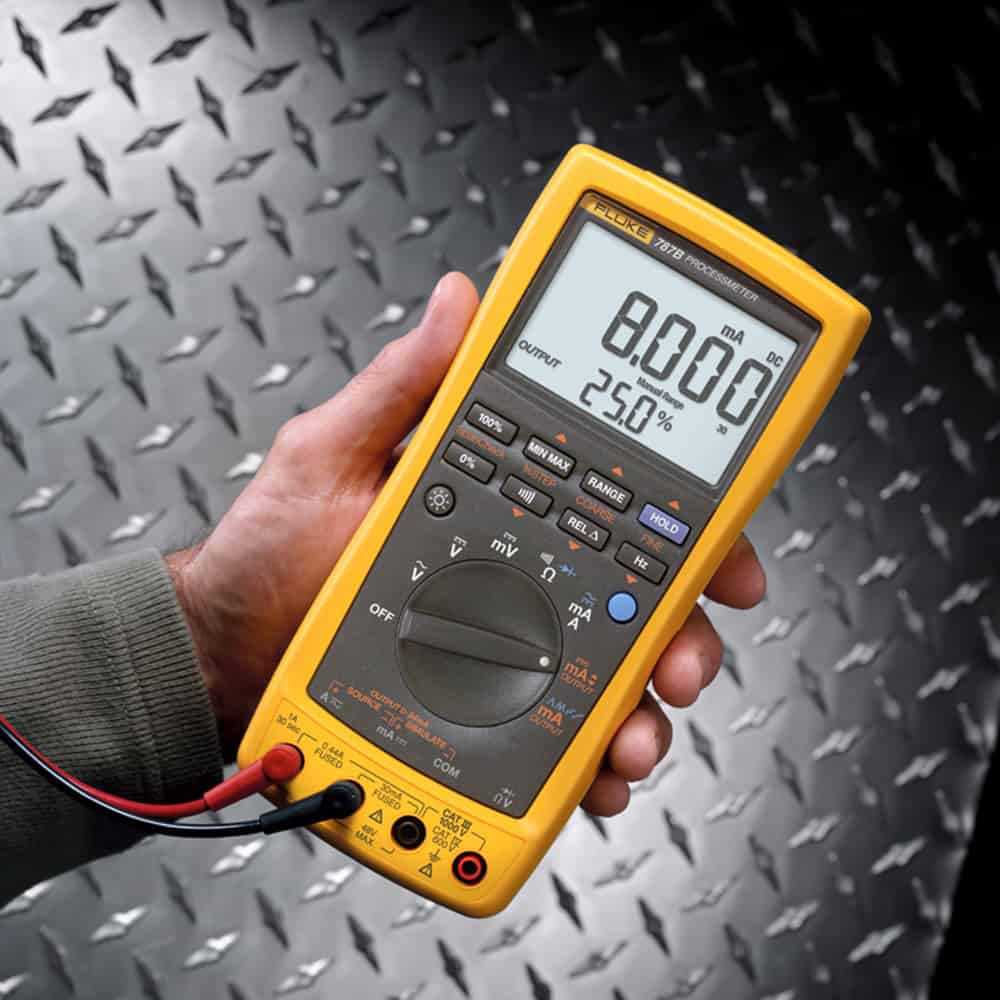

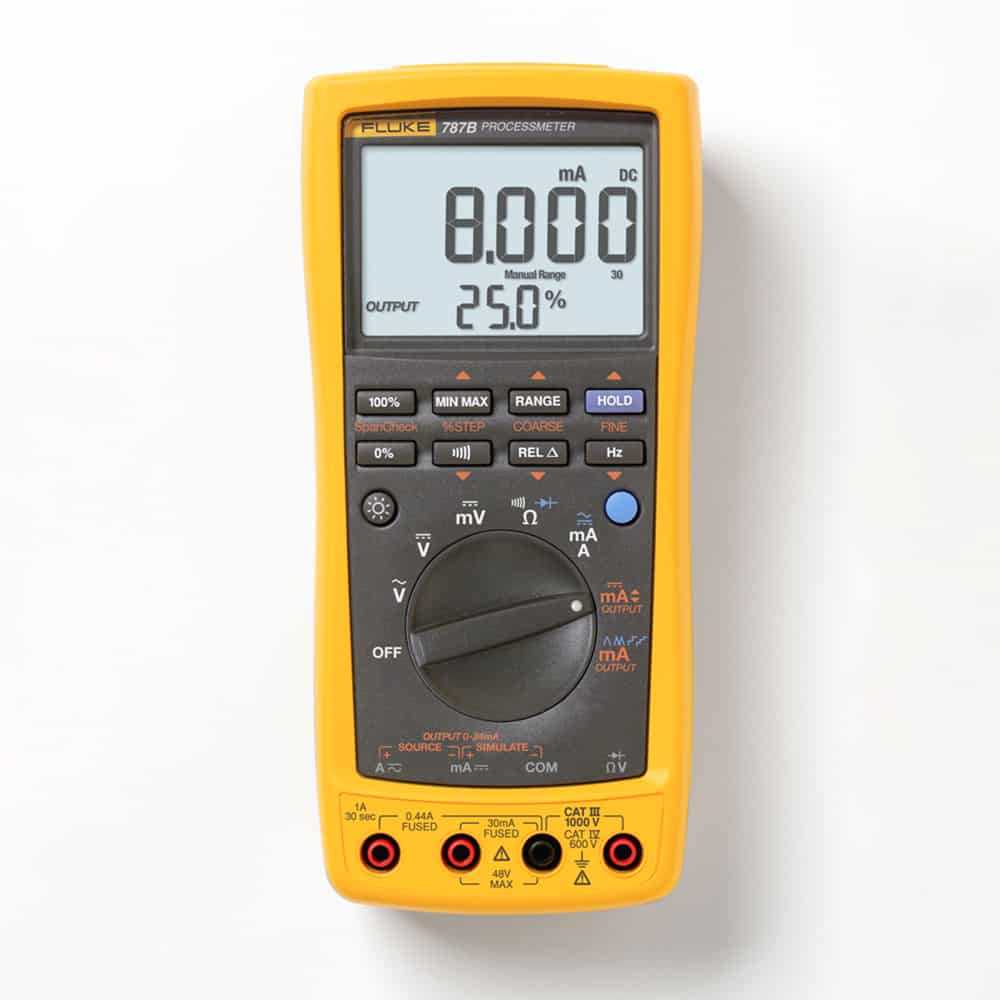

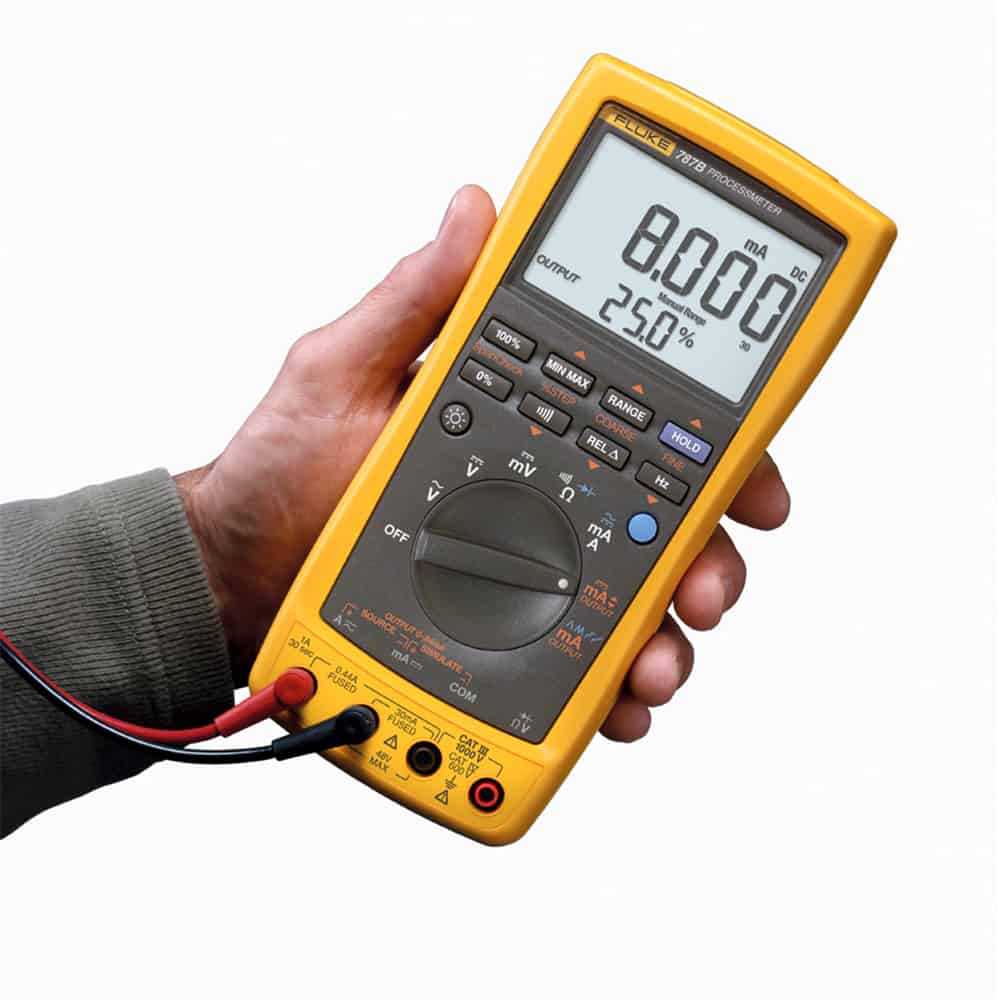

Fluke 787B Process Meter, 20mA DC, 1000V DC is a product engineered with precision, delivering exceptional performance

with features like 20 mA dc current sourcemeasuresimulate, simultaneous mA and of scale readout and dMM designed to meet 1000 volt IEC 61010 CAT III and 600 V CAT IV standards.

Maintive brings to you 100% genuine Loop Calibrators from Fluke at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order 787B Process Meter, 20mA DC, 1000V DC today at the best price only from Maintive.

Features

20 mA dc current source/measure/simulate
Simultaneous mA and % of scale readout
DMM designed to meet 1000 volt IEC 61010 CAT III and 600 V CAT IV standards
Fluke Connect® compatibility for wireless data logging (with IR3000FC module*)
Easy-to-read backlit display
Manual and automatic ramp up - ramp down functions

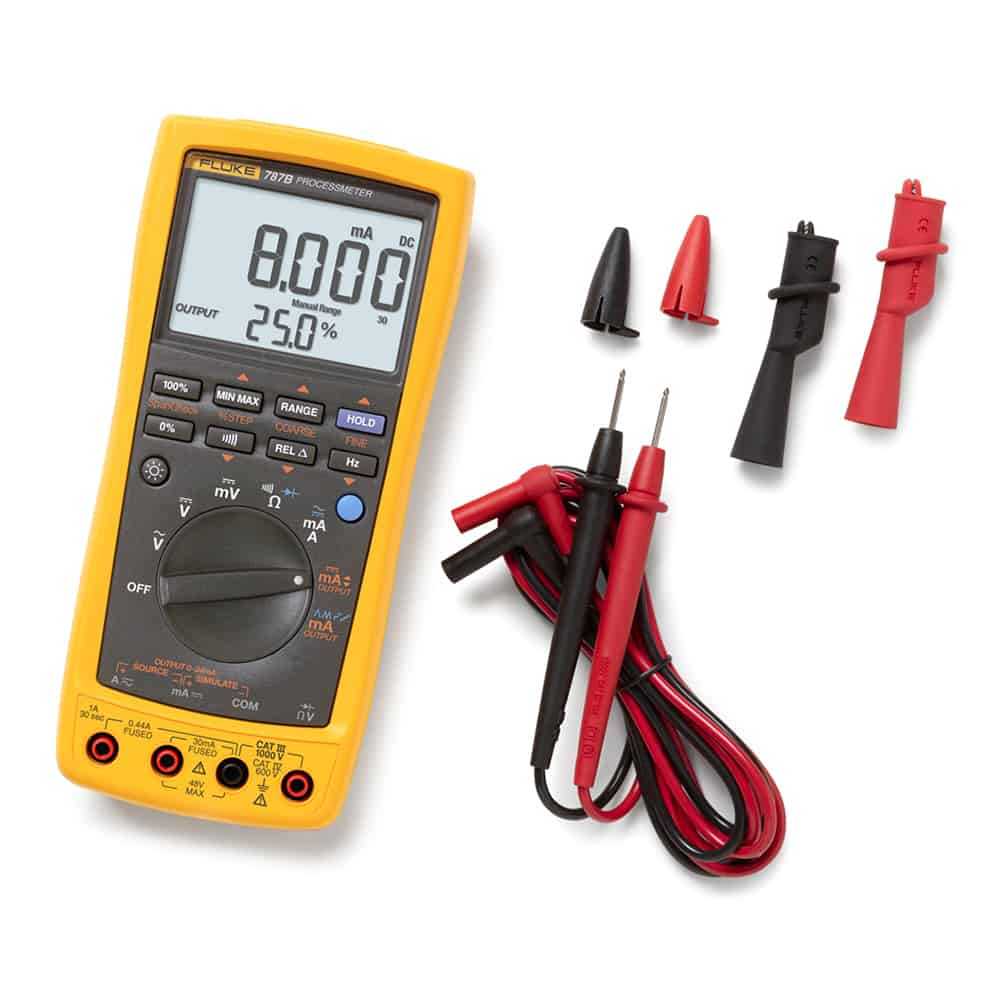

Items Included

TL71 Premium test lead set
AC72 Alligator clips
Four AA alkaline batteries (installed)
Quick reference guide

Specifications

Current Measurement30mA DC, 1.000 A (0.440 A continuous)
Voltage Measurement400.0 mV, 4.000 V, 40.00 V, 400.0 V, 1000 V DC
Resistance400.0Ω, 4.000 kΩ, 40.00 kΩ, 400.0 kΩ, 4.0MΩ, 40MΩ
Frequency (0.5 Hz to 20 kHz)199.99 Hz, 1999.9 Hz, 19.999 kHz
Maximum voltage applied between any jack and earth ground1000 V RMS
Storage temperature-40 °C to 60 °C
Operating temperature-20 °C to 55 °C
Temperature coefficient0.05 x (specified accuracy) per °C (for temperatures < 18 °C or > 28 °C)
Relative humidity95% up to 30 °C; 75% up to 40 °C; 45% up to 50 °C; 35% up to 55 °C
VibrationRandom, 2 g, 5-500 Hz
Shock1 meter drop test
Size50 x 100 x 203 mm (1.97 x 3.94 x 8.00 in)
Warranty3 years manufacturer's warranty

Current Measurement30mA DC, 1.000 A (0.440 A continuous)
Voltage Measurement400.0 mV, 4.000 V, 40.00 V, 400.0 V, 1000 V DC
Resistance400.0Ω, 4.000 kΩ, 40.00 kΩ, 400.0 kΩ, 4.0MΩ, 40MΩ
Frequency (0.5 Hz to 20 kHz)199.99 Hz, 1999.9 Hz, 19.999 kHz
Maximum voltage applied between any jack and earth ground1000 V RMS
Storage temperature-40 °C to 60 °C
Operating temperature-20 °C to 55 °C
Temperature coefficient0.05 x (specified accuracy) per °C (for temperatures < 18 °C or > 28 °C)
Relative humidity95% up to 30 °C; 75% up to 40 °C; 45% up to 50 °C; 35% up to 55 °C
VibrationRandom, 2 g, 5-500 Hz
Shock1 meter drop test
Size50 x 100 x 203 mm (1.97 x 3.94 x 8.00 in)
Warranty3 years manufacturer's warranty
