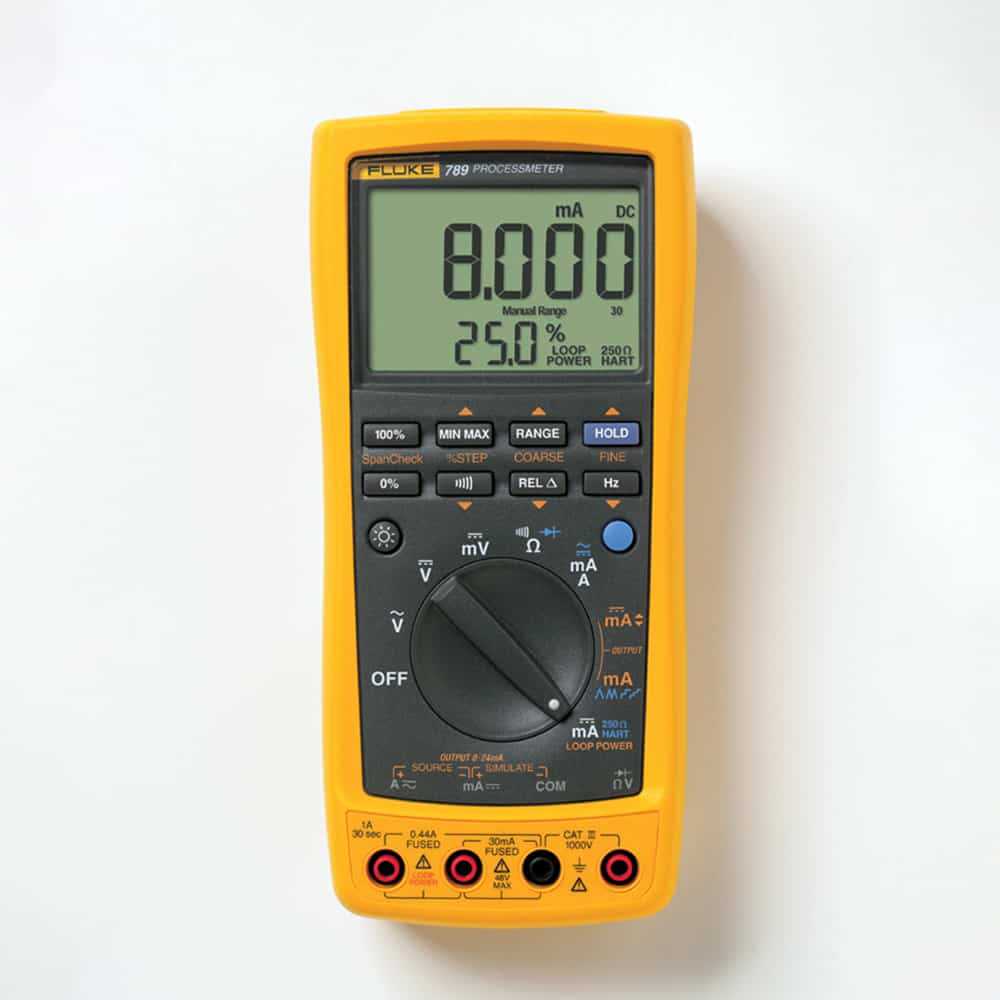

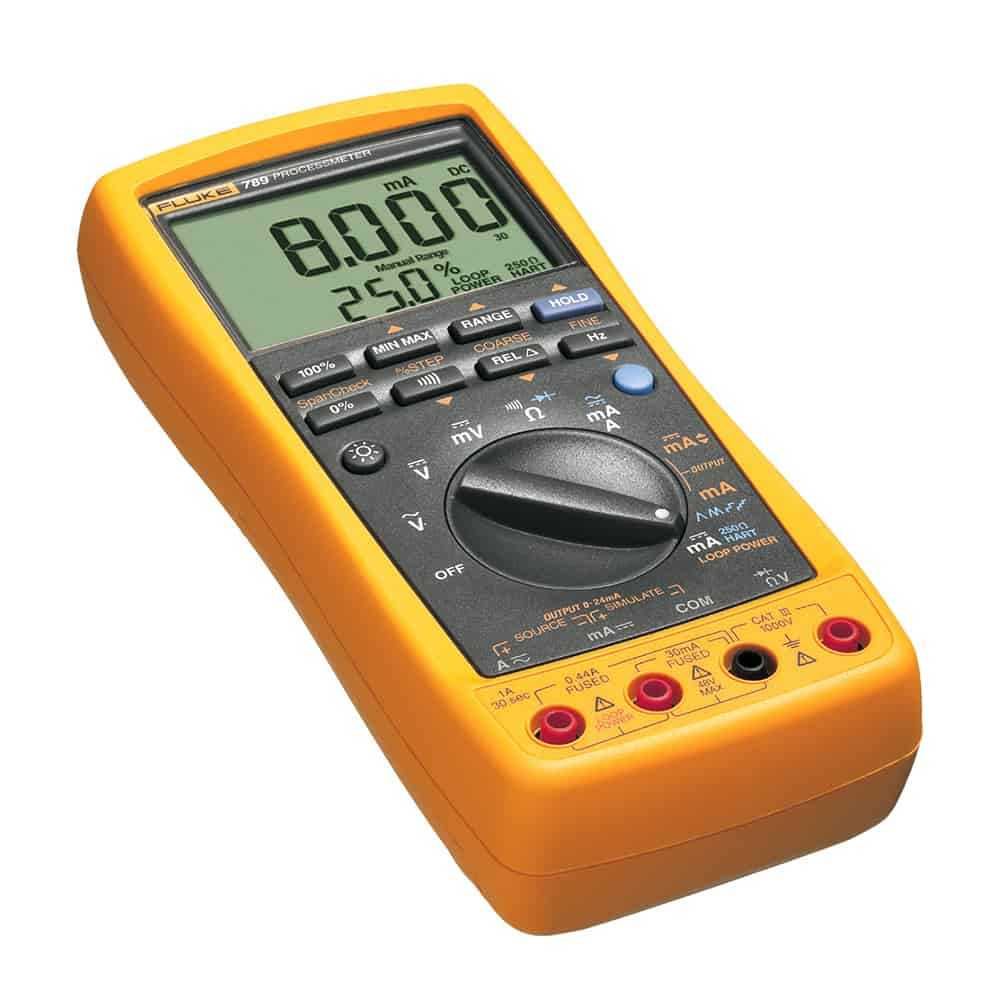

Fluke 789/E Process Meter, 0 to 30mA is a product engineered with precision, delivering exceptional performance
with features like 24 V Loop power supply, doublesized dual display and enhanced backlight with 2 brightness settings.
Maintive brings to you 100% genuine Loop Calibrators from Fluke at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order 789/E Process Meter, 0 to 30mA today at the best price only from Maintive.
Features
24 V Loop power supply
Double-sized; dual display
Enhanced backlight with 2 brightness settings
20mA drive into 1200 ohms
Compact digital multimeter and mA loop calibrator solution
Full-featured mA loop calibrator with built-in 24v Loop Power
Quickly and easily troubleshoot every part of a control loop
Large, bright dual-measurement display
Items Included
AC175 Alligator Clips
Four AA 1.5 V alkaline battery (installed)
TL71 Safety-Designed Test lead Set
Specifications
Current Measurement0-1 A AC or DC / 0 to 30 mA
Resolution1 mA / 0.001 mA
Accuracy0.2% + 2 LSD (DC) / 0.05% + 2 lSD
Voltage Measurement0 to 1000V
Resolution0.1 mV to 1.0 V
Accuracy0.1% Rdg + 1 LSD (VDC)
Frequencyto 19.999 kHz, 0.005% + 1 LSD
Resistance40 MΩ, 0.2% + 1 LSD
Operating temperature-20°C to 55°C
Storage temperature-40°C to 60°C
Size (H x W x L)50 x 100 x 203 mm (1.25 x 3.41 x 7.35 in)
Warranty3 years manufacturer's warranty
Current Measurement0-1 A AC or DC / 0 to 30 mA
Resolution1 mA / 0.001 mA
Accuracy0.2% + 2 LSD (DC) / 0.05% + 2 lSD
Voltage Measurement0 to 1000V
Resolution0.1 mV to 1.0 V
Accuracy0.1% Rdg + 1 LSD (VDC)
Frequencyto 19.999 kHz, 0.005% + 1 LSD
Resistance40 MΩ, 0.2% + 1 LSD
Operating temperature-20°C to 55°C
Storage temperature-40°C to 60°C
Size (H x W x L)50 x 100 x 203 mm (1.25 x 3.41 x 7.35 in)
