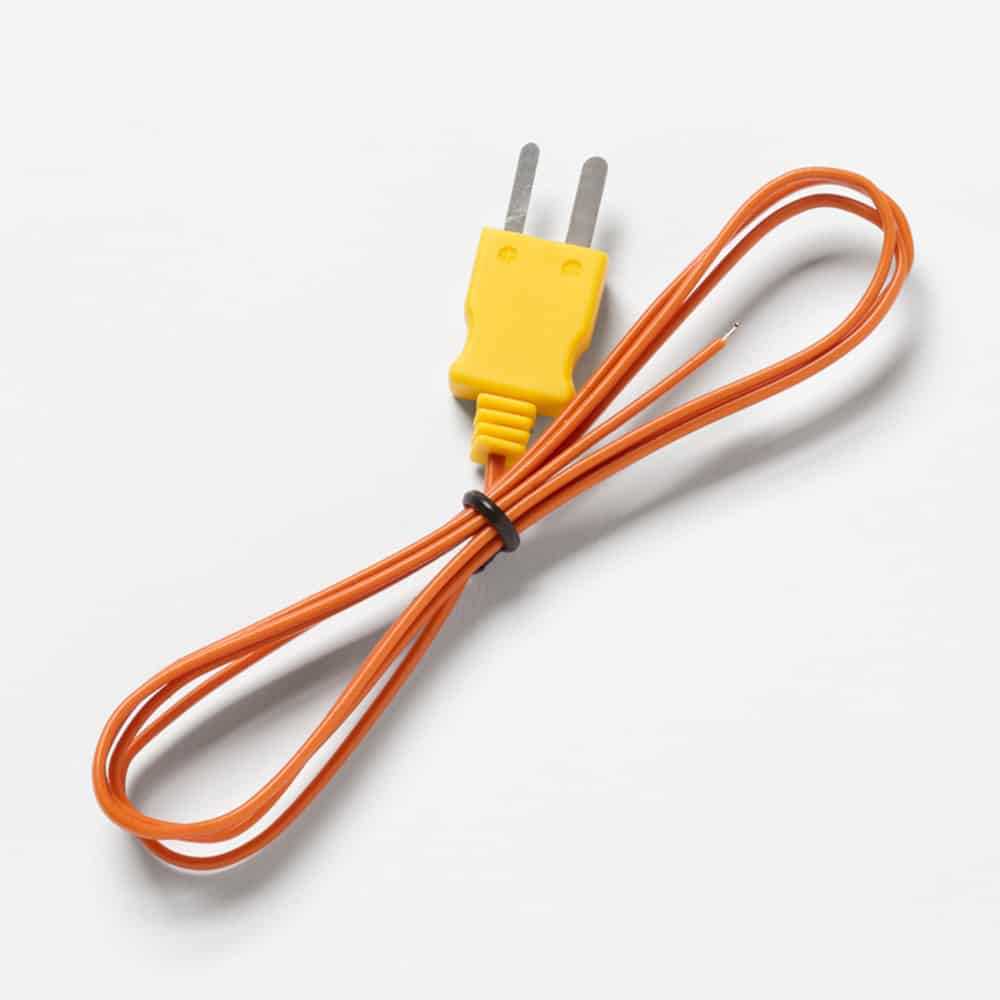

Fluke 80PK-1 Bead Probe (Type K) is a product engineered with precision, delivering exceptional performance. Maintive brings to you 100% genuine Current Clamps from Fluke at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order 80PK-1 Bead Probe (Type K) today at the best price only from Maintive.
Features
Measurement range: -40 to 260 °C
Items Included
Fluke 80PK-1 Bead Probe
Specifications
Type K special grade
Measurement Range -40 to 500°F (-40 to 260°C) continuous
Accuracy (with Respect to NBS Tables for Special Grade) ±2.0°F (1.1°C) over the range of 32 to 500°F (0 to 260°C)
Output 77°F (25°C) = 1.00 mV (reference junction at 0°C)
Seebeck Coefficient 77°F (25°C) = 40.50 µV /°C
Measurement Time 2 seconds (for air at room temperature and one atmosphere of pressure moving with a velocity of 65'/sec)
Maximum Voltage 24 V AC rms or 60 V DC maximum for proper safe operation
Maximum Temperature of Bead 500°F (260°C)
Cable Length 40" (1 m)
Material Teflon
Maximum Temperature 500°F (260°C)
Warranty1 year manufacturer's warranty
Type K special grade
Measurement Range -40 to 500°F (-40 to 260°C) continuous
Accuracy (with Respect to NBS Tables for Special Grade) ±2.0°F (1.1°C) over the range of 32 to 500°F (0 to 260°C)
Output 77°F (25°C) = 1.00 mV (reference junction at 0°C)
Seebeck Coefficient 77°F (25°C) = 40.50 µV /°C
Measurement Time 2 seconds (for air at room temperature and one atmosphere of pressure moving with a velocity of 65'/sec)
Maximum Voltage 24 V AC rms or 60 V DC maximum for proper safe operation
Maximum Temperature of Bead 500°F (260°C)
Cable Length 40" (1 m)
Material Teflon
Maximum Temperature 500°F (260°C)
Warranty1 year manufacturer's warranty
