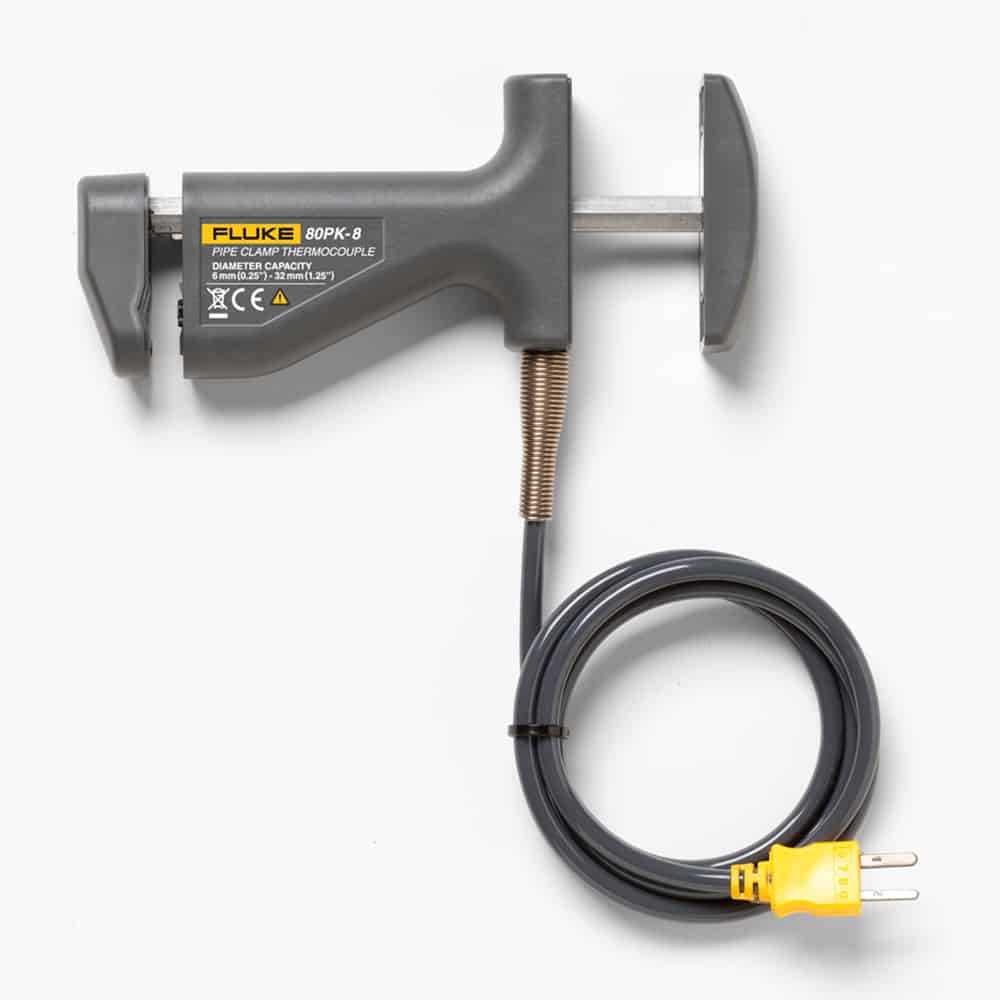

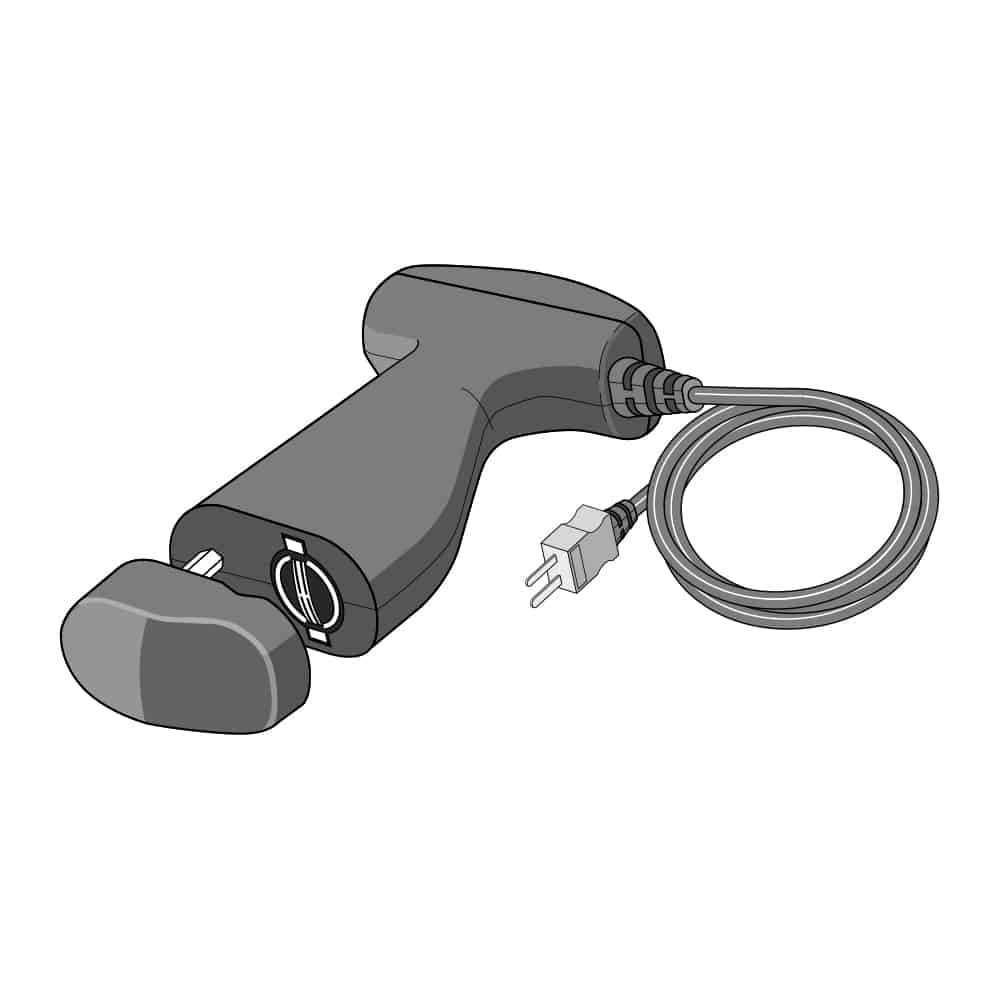

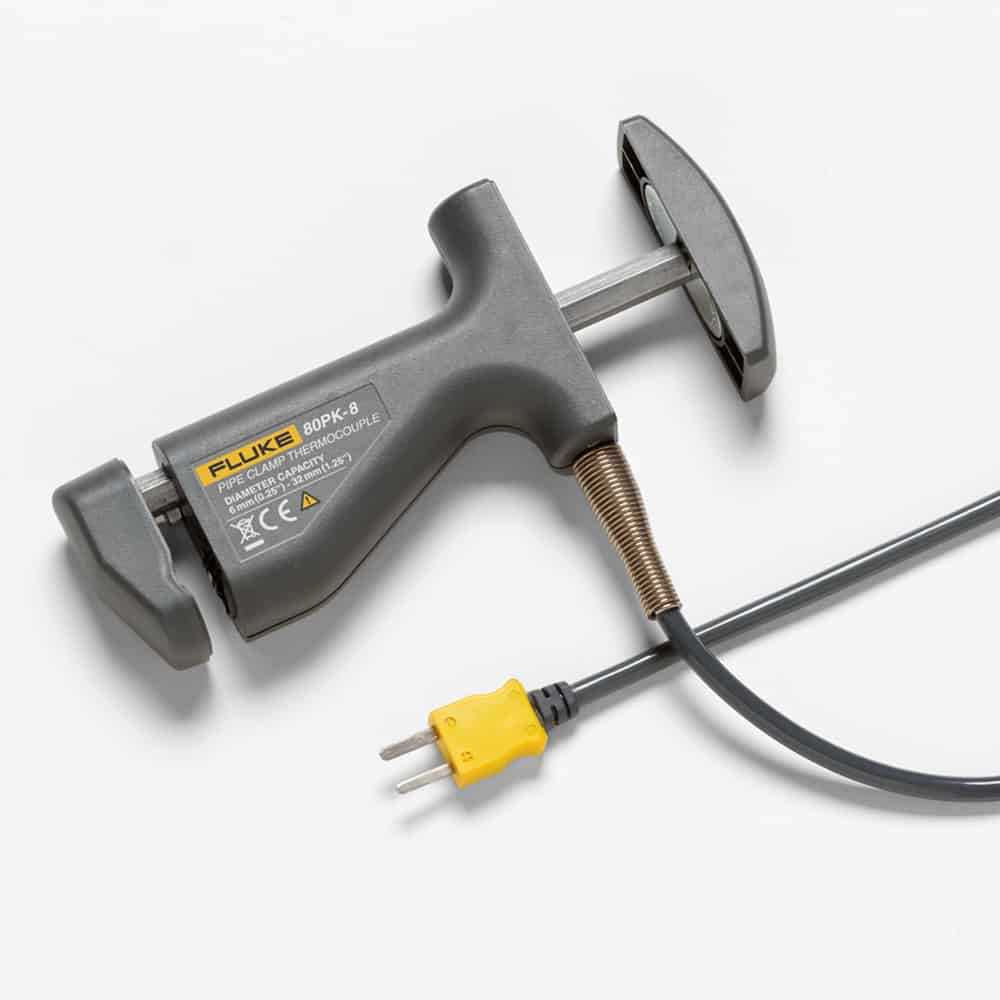

Fluke 80PK-8 Pipe Clamp Temperature Probe, Type K Thermocouple is a product engineered with precision, delivering exceptional performance
with features like typeK thermocouple for fast temperature and superheat measurements of pipe surfaces, for pipe diameters 32 mm to 64 mm 125 in to 25 in and measurement range 29C to 49C 20F to 300F.
Maintive brings to you 100% genuine Current Clamps from Fluke at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order 80PK-8 Pipe Clamp Temperature Probe, Type K Thermocouple today at the best price only from Maintive.
Features
Type-K thermocouple for fast temperature and superheat measurements of pipe surfaces
For pipe diameters: 32 mm to 64 mm (1.25 in to 2.5 in)
Measurement range: -29C to 49C (-20F to 300F)
Measurements are repeatable to 0.56 ¡C (1 ¡F)
Durable ribbon sensor
Items Included
Fluke 80PK-8 Pipe Clamp Temperature Probe
Specifications
Measurement Range -20 and 300°F (-29 and 149°C)
Accuracy ±1.9°C (±3.4°F)
Repeatability ±1°F (±0.56°C)
Output At 77°F (25°C) = 1.00 mV (Reference junction at 0°C)
Seebeck Coefficient At 77°F (25°C) = 40.50 V/°C
Measurement Time (Time Constant) 0.5 seconds (5 time constants = 1 complete step change, i.e. 2.5 seconds)
Maximum Voltage Rating 24 V ac rms, or 60 V dc
Cable Length 40" (1 m)
Warranty1 year manufacturer's warranty
Measurement Range -20 and 300°F (-29 and 149°C)
Accuracy ±1.9°C (±3.4°F)
Repeatability ±1°F (±0.56°C)
Output At 77°F (25°C) = 1.00 mV (Reference junction at 0°C)
Seebeck Coefficient At 77°F (25°C) = 40.50 V/°C
Measurement Time (Time Constant) 0.5 seconds (5 time constants = 1 complete step change, i.e. 2.5 seconds)
Maximum Voltage Rating 24 V ac rms, or 60 V dc
Cable Length 40" (1 m)
Warranty1 year manufacturer's warranty
