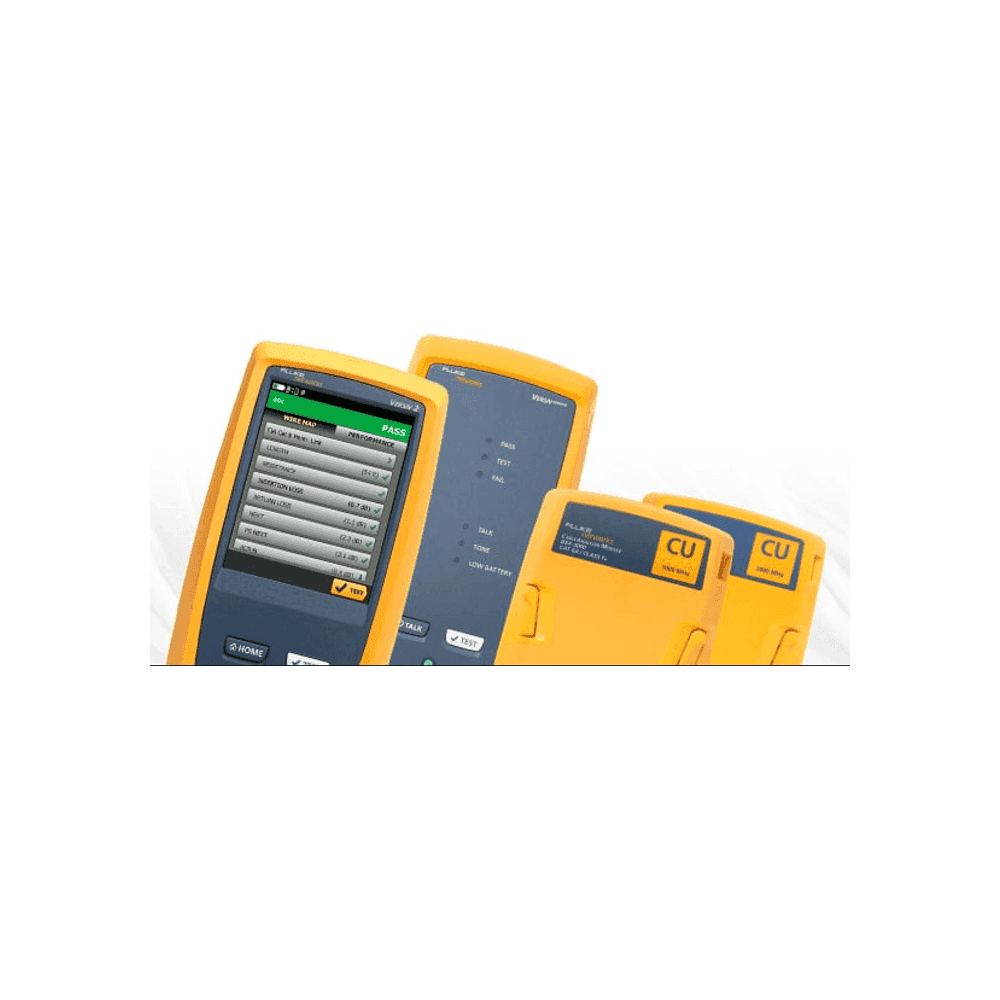

Fluke DSX2-8000-INTL Cable Analyzer for Twisted Pair Cat 5e, 6, 6A and Class FA cabling is a product engineered with precision, delivering exceptional performance
with features like versiv enables users to accomplish more than ever with a cable tester by accelerating every step of the testing process, linkWare Live cloud service lets the Project Manager remotely set up the testers monitor job progress and even locate tester from any smart device and projX™ management system eases tasks from initial setup of a job to system acceptance It eliminates redundant steps and ensures that all tests are completed correctly the first time and every time.
Maintive brings to you 100% genuine Cable Testers from Fluke at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order DSX2-8000-INTL Cable Analyzer for Twisted Pair Cat 5e, 6, 6A and Class FA cabling today at the best price only from Maintive.
Features
Versiv enables users to accomplish more than ever with a cable tester, by accelerating every step of the testing process
LinkWare Live cloud service lets the Project Manager remotely set up the testers, monitor job progress and even locate tester from any smart device
ProjX™ management system eases tasks from initial set-up of a job to system acceptance. It eliminates redundant steps, and ensures that all tests are completed correctly the first time, and every time
Taptive™ user interface puts advanced data analysis and easy set-up and operation at the fingertips of technicians of all skill levels
LinkWare PC management software provides unmatched analysis of test results and professional test reports
The DSX reduces the time required to fix cabling faults with dedicated diagnostics, a simple test that locates the problem
Specifications
Cat 6A / Class EA test time8 seconds
Cat 8 / Class I/II test time16 seconds
HDTDX/HDTDR diagnostic test times≈ 3 seconds
Internal memory≈ 5.000 Cat 8 with plots; ≈ 12,000 Cat 6A with plots
>Level V Accuracy (1 GHz)✓
Level VI/2G Accuracy (2 GHz)✓
Resistance Unbalance measurement✓
Shield integrity check and distance to fault✓
TCL measurement✓
ELTCTL measurement✓
CDNEXT measurement✓
CMRL measurement✓
Built-in Alien XTalk capability✓
Channel Adapter2 GHz Range
Permanent Link Adapter2 GHz Range
Warranty2 years manufacturer's warranty
Cat 6A / Class EA test time8 seconds
Cat 8 / Class I/II test time16 seconds
HDTDX/HDTDR diagnostic test times≈ 3 seconds
Internal memory≈ 5.000 Cat 8 with plots; ≈ 12,000 Cat 6A with plots
>Level V Accuracy (1 GHz)✓
Level VI/2G Accuracy (2 GHz)✓
Resistance Unbalance measurement✓
Shield integrity check and distance to fault✓
TCL measurement✓
ELTCTL measurement✓
CDNEXT measurement✓
CMRL measurement✓
Built-in Alien XTalk capability✓
Channel Adapter2 GHz Range
Permanent Link Adapter2 GHz Range
Warranty2 years manufacturer's warranty
