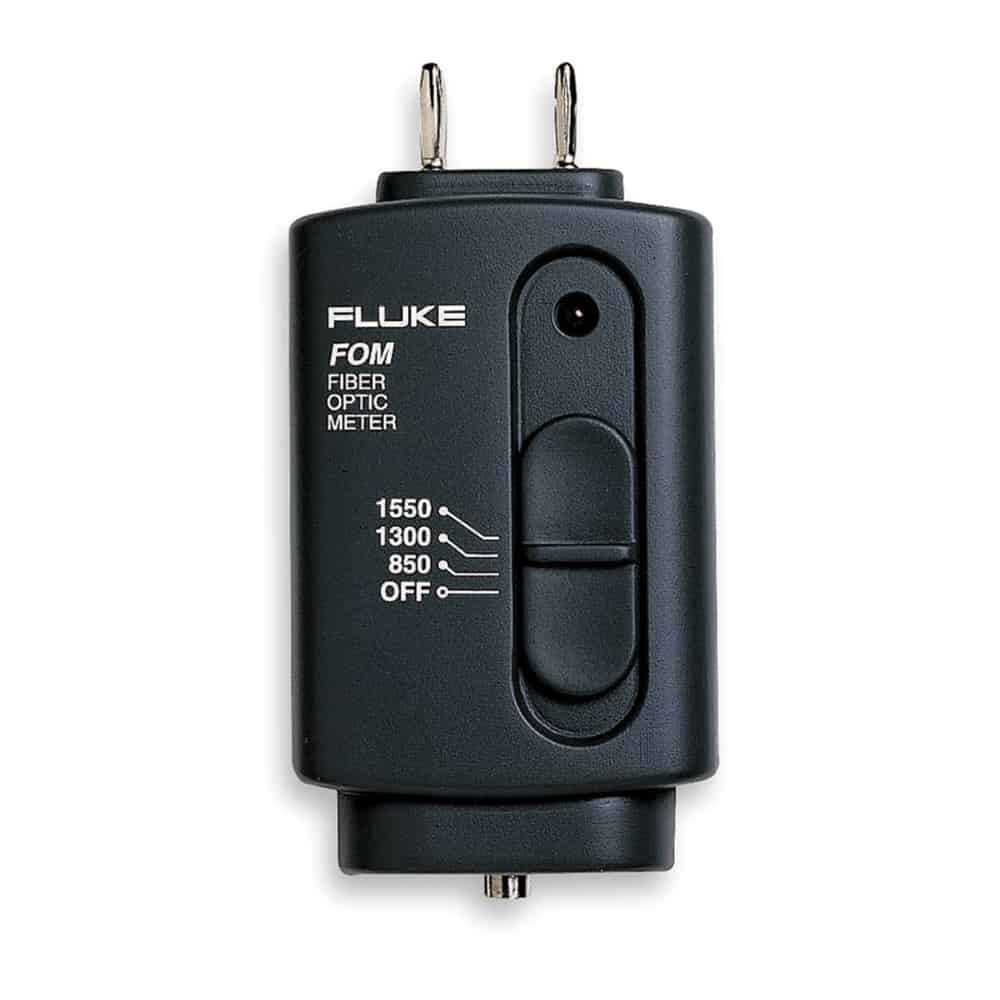

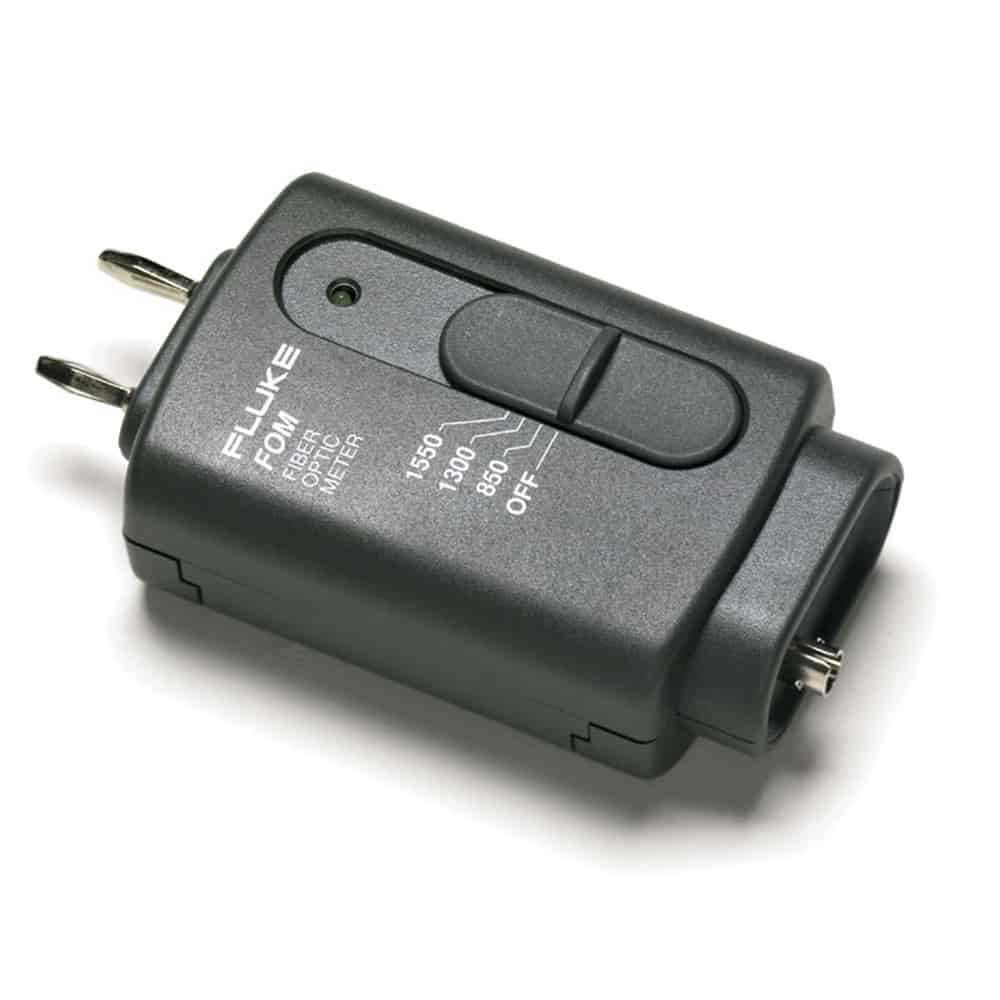

The Fluke Fiber Optic Meter (FOM) helps you test and maintain fiber optic cable without having to buy a whole new meter. Plug the FOM directly into any DMM with a mV dc function and a 10 MΩ input impedance and quickly and accurately verify fiber optic cable system loss. Light sources and patch cords sold separately.
Items Included
Fluke FOM - Fiber Optic Meter
Specifications
Calibrated Wavelengths 850 nm, 1300 nm (used also for 1310 nm), and 1550 nm
Dynamic Range +3 to -50 dBm
Measurement Accuracy ±0.25 dB at -10.0 dBm and 25°C
Display Resolution 0.01 dB (0.001 µW)
Detector Type Germanium
Operating Temperature 0° C to +40°C
Storage Temperature -20° C to +70°C
Dimensions 4.5 x 2.5 x 1.5 in (11.4 x 6.4 x 3.8 cm)
Weight 5.0 oz (142g)
Calibrated Wavelengths 850 nm, 1300 nm (used also for 1310 nm), and 1550 nm
Dynamic Range +3 to -50 dBm
Measurement Accuracy ±0.25 dB at -10.0 dBm and 25°C
Display Resolution 0.01 dB (0.001 µW)
Detector Type Germanium
Operating Temperature 0° C to +40°C
Storage Temperature -20° C to +70°C
Dimensions 4.5 x 2.5 x 1.5 in (11.4 x 6.4 x 3.8 cm)
Weight 5.0 oz (142g)
