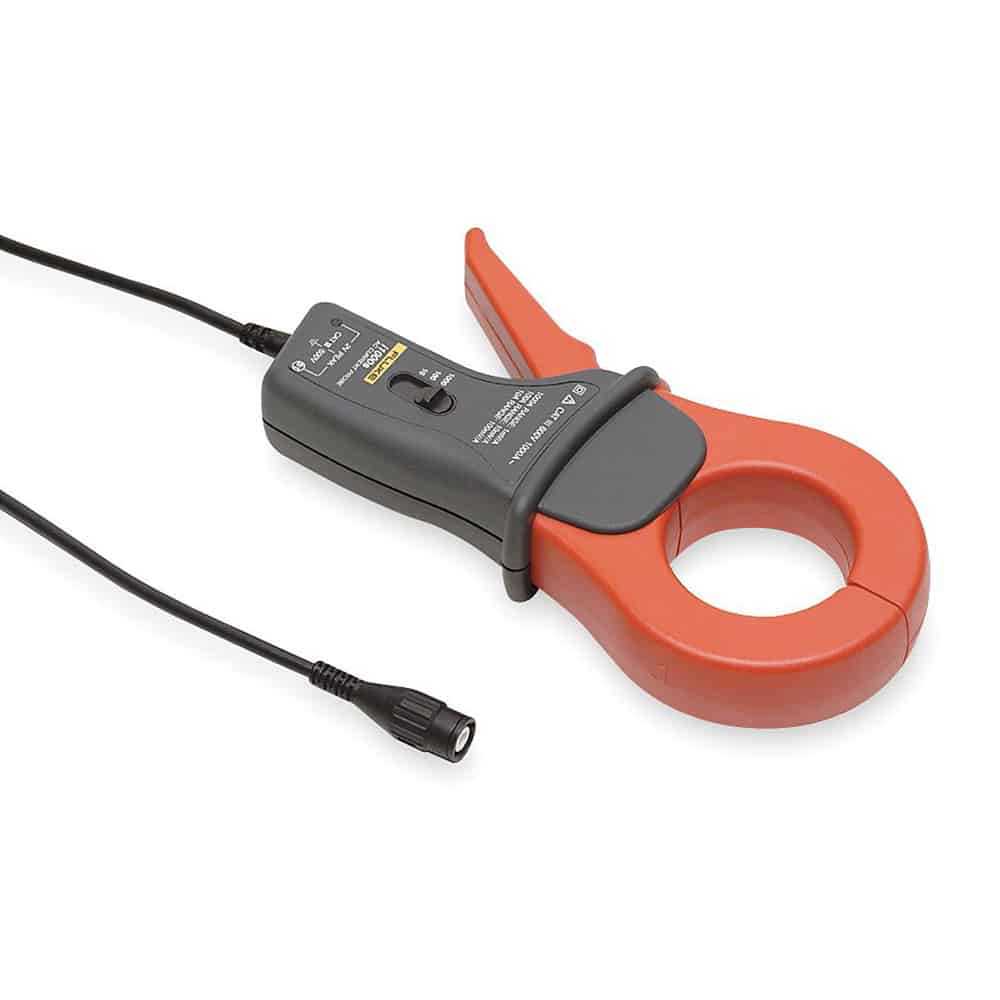

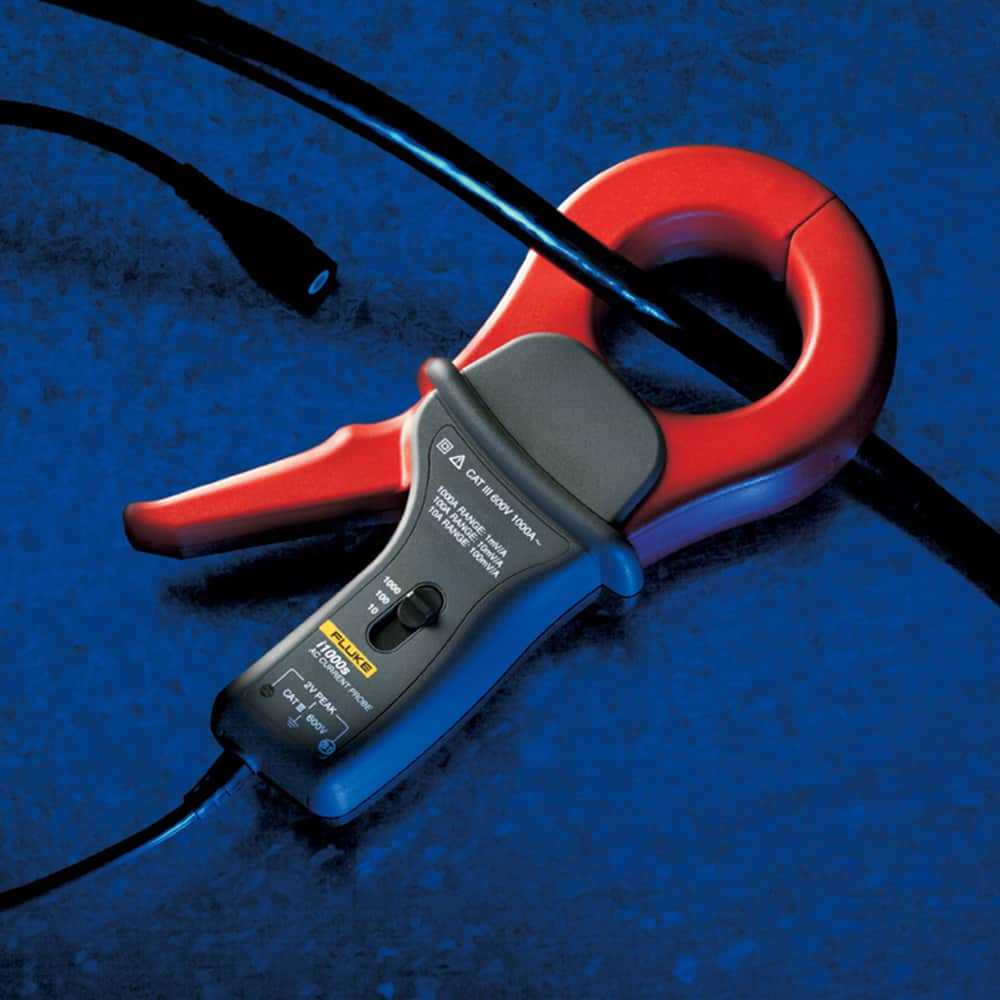

Fluke i1000s AC Current Clamp 1000A is a product engineered with precision, delivering exceptional performance
with features like allows accurate measurement of currents from 100 mA to 1000 A rms 5 Hz to 100 kHz without breaking into the circuit, a passive filter eliminates noise and ring on rapidly rising didt waveform ensuring accurate screen displays and connects directly to an oscilloscope through a reinforced coaxial cable and an insulated BNC connector.
Maintive brings to you 100% genuine Current Clamps from Fluke at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order i1000s AC Current Clamp 1000A today at the best price only from Maintive.
Features
Allows accurate measurement of currents from 100 mA to 1000 A rms, 5 Hz to 100 kHz without breaking into the circuit
A passive filter eliminates noise and ring on rapidly rising di/dt waveform, ensuring accurate screen displays

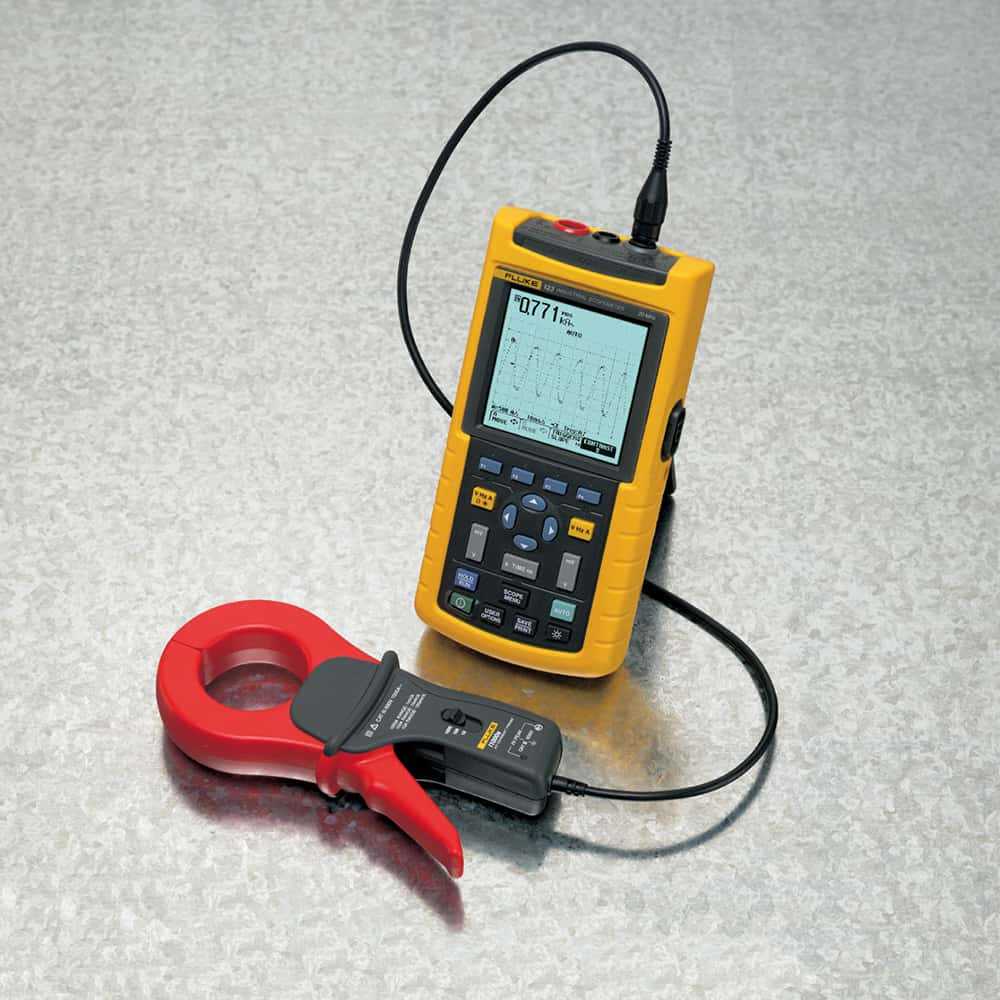

Connects directly to an oscilloscope through a reinforced coaxial cable and an insulated BNC connector
Can be used with multimeters with optional PM9081/001 BNC/Banana adapter
Items Included
Fluke i1000s AC Current Probe
Specifications
Nominal Current Range 10 A, 100 A, 1000 A
Continuous Current Range 0.1 to 10 A
Maximum Non-Destructive Current 2000 A
Lowest Measurable Current 0.1
Basic Accuracy 1% + 1 A (48 to 65 Hz) (% reading + floor spec)
Useable Frequency 5 Hz to 100 kHz
Output Level(s) 100 mv/A
Maximum Voltage 600 V AC
Maximum Conductor Diameter 2.12" (54 mm)
Output Cable Length 5.25' (1.6 m)
Warranty1 year manufacturer's warranty
Nominal Current Range 10 A, 100 A, 1000 A
Continuous Current Range 0.1 to 10 A
Maximum Non-Destructive Current 2000 A
Lowest Measurable Current 0.1
Basic Accuracy 1% + 1 A (48 to 65 Hz) (% reading + floor spec)
