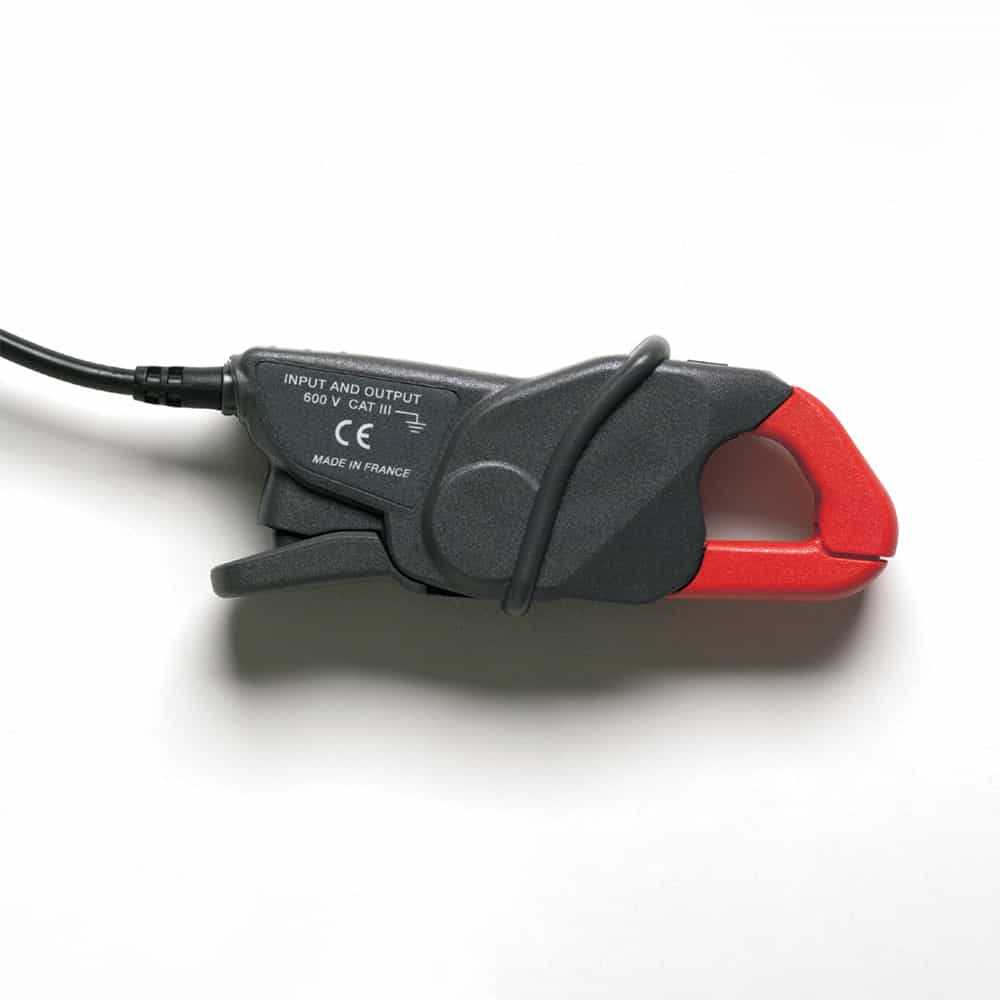

Fluke i200 Ac Current Clamp (200 A) Cat III 600 V Safety Rating is a product engineered with precision, delivering exceptional performance
with features like companion to a DMM for measuring up to 200 A AC, 1 mA per Amp output guarantees easy reading on you meter and take accurate current readings without breaking the circuit.
Maintive brings to you 100% genuine Current Clamps from Fluke at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order i200 Ac Current Clamp (200 A) Cat III 600 V Safety Rating today at the best price only from Maintive.
Features
Companion to a DMM for measuring up to 200 A AC
1 mA per Amp output guarantees easy reading on you meter
Take accurate current readings without breaking the circuit
Max. conductor Ø 20 mm
CAT III 600 V safety rating
Items Included
Fluke i200 AC Current Clamp
Specifications
Nominal Current Range 200 A
Continuous Current Range 0.5 to 200 A
Maximum Non-Destructive 240 A
Lowest Measurable Current 0.5 A
Basic Accuracy 1.5% + 0.5 A (48 to 65 Hz) (% reading + floor spec)
Useable Frequency 40 Hz to 10 kHz
Output Level(s) 1 mA/A
Maximum Voltage 600 V AC
Maximum Conductor Diameter 0.8" (20 mm)
Maximum Conductor Size (busbar) 0.8 x 0.2" (20 x 5 mm)
Warranty1 year manufacturer's warranty
Nominal Current Range 200 A
Continuous Current Range 0.5 to 200 A
Maximum Non-Destructive 240 A
Lowest Measurable Current 0.5 A
Basic Accuracy 1.5% + 0.5 A (48 to 65 Hz) (% reading + floor spec)
Useable Frequency 40 Hz to 10 kHz
Output Level(s) 1 mA/A
Maximum Voltage 600 V AC
Maximum Conductor Diameter 0.8" (20 mm)
Maximum Conductor Size (busbar) 0.8 x 0.2" (20 x 5 mm)
Warranty1 year manufacturer's warranty
