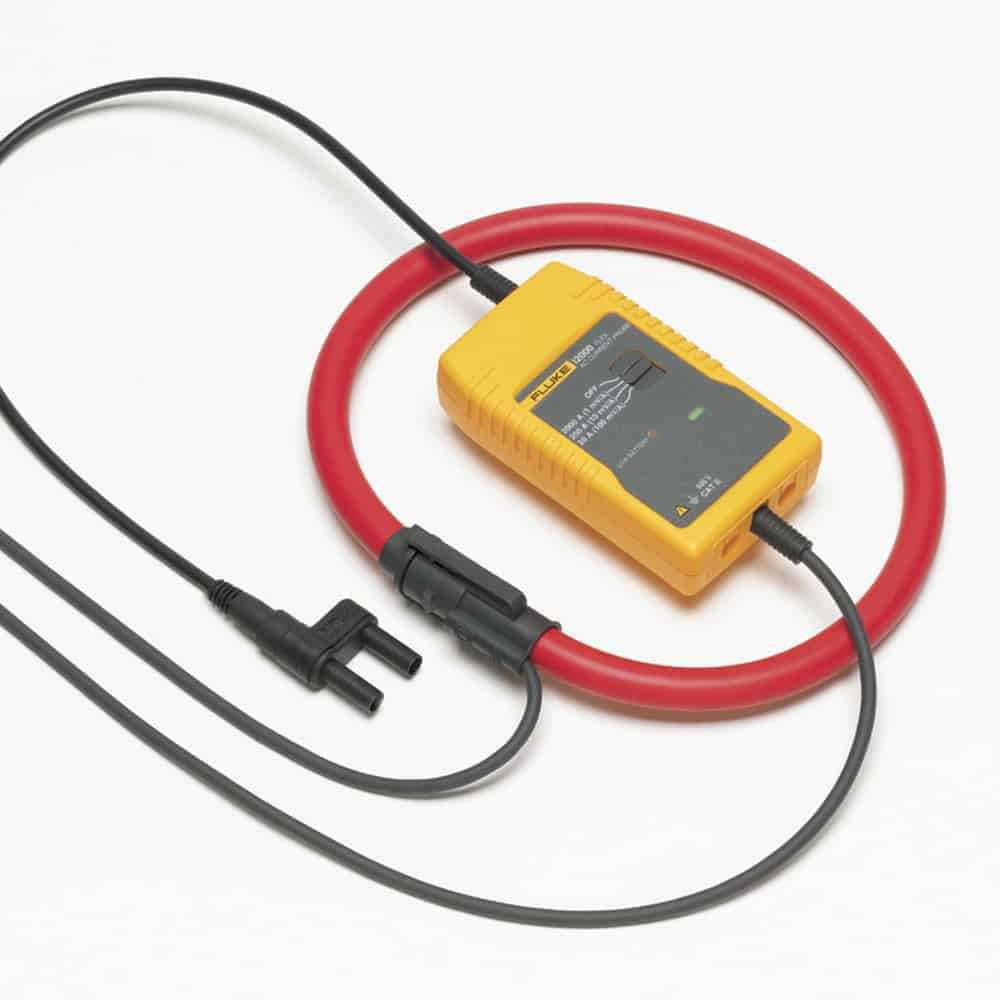

Fluke i2000 flex Ac Flexible Current Clamp (2000 A) is a product engineered with precision, delivering exceptional performance
with features like three ranges 20A 200 A x26 2000 A 100 mVA 10 mVA x26 1 mVA output, ideal for current measurement on thick and hard to reach conductors without breaking the circuit and maximum conductor diameter 178 mm.
Maintive brings to you 100% genuine Current Clamps from Fluke at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order i2000 flex Ac Flexible Current Clamp (2000 A) today at the best price only from Maintive.
Features
Three ranges: 20A, 200 A & 2000 A, 100 mV/A, 10 mV/A & 1 mV/A output
Ideal for current measurement on thick and hard to reach conductors without breaking the circuit
Maximum conductor diameter 178 mm
CAT III 600 V safety rating
Specifications
Head Circumference 610 mm (24 in)
Head cable diameter 14.3 mm (0.56 in)
Head bend radius 38.1 mm (1.5 in)
Cable length (head to electronics) 2 m (6.56 ft)
Output connection Molded 4 mm safety plugs (not integrated)
Operating temperature range 0°C to +70°C (32°F to 158°F) (head and electronics)
Storage temperature range -40°C to +105°C (-40°F to 221°F) (head)
Operating humidity 15% to 85% (non-condensing)
Weight 180 g (6.34 oz) (head)
EMC standards EN 61326: 1998 +A1, A2, and A3
Dimensions (H x W x D) 116 x 68.5 x 30 mm (4.56 x 2.69 x 1.18 in)
Warranty1 year manufacturer's warranty
Head Circumference 610 mm (24 in)
Head cable diameter 14.3 mm (0.56 in)
Head bend radius 38.1 mm (1.5 in)
Cable length (head to electronics) 2 m (6.56 ft)
Output connection Molded 4 mm safety plugs (not integrated)
Operating temperature range 0°C to +70°C (32°F to 158°F) (head and electronics)
Storage temperature range -40°C to +105°C (-40°F to 221°F) (head)
Operating humidity 15% to 85% (non-condensing)
Weight 180 g (6.34 oz) (head)
EMC standards EN 61326: 1998 +A1, A2, and A3
Dimensions (H x W x D) 116 x 68.5 x 30 mm (4.56 x 2.69 x 1.18 in)
Warranty1 year manufacturer's warranty
