Expands the measurement range to 2500 A ac while providing increased display flexibility; ability to measure awkward sized conductors and improved wire access
CAT IV 600 V; CAT III 1000 V
7.5 mm coil diameter allows measurement in tight spaces
Ergonomic design allows easy operation with one hand
1.8 m (6 ft) cable
Items Included

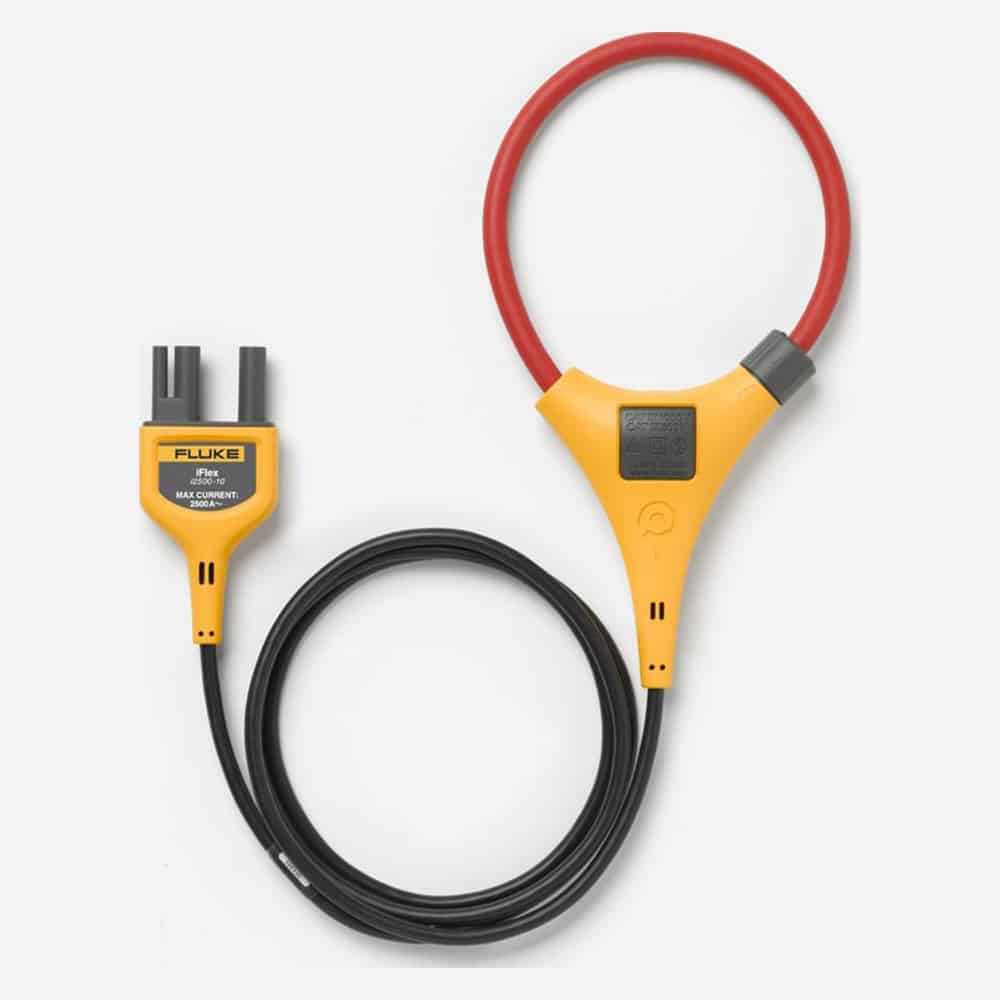

Fluke i2500-10 iFlex Flexible 10" Current Probe
Specifications
AC Current Range 2500 A
Resolution 0.1 A
Accuracy 3% ± 5 digits
Frequency Range 500 Hz
External magnetic field rejection (with cable >10 cm from the coupling) 40 dB
Safety rating CAT III 1000 V, CAT IV 600 V
Warranty3 years manufacturer's warranty
AC Current Range 2500 A
Resolution 0.1 A
Accuracy 3% ± 5 digits
Frequency Range 500 Hz
External magnetic field rejection (with cable >10 cm from the coupling) 40 dB
Safety rating CAT III 1000 V, CAT IV 600 V
Warranty3 years manufacturer's warranty
