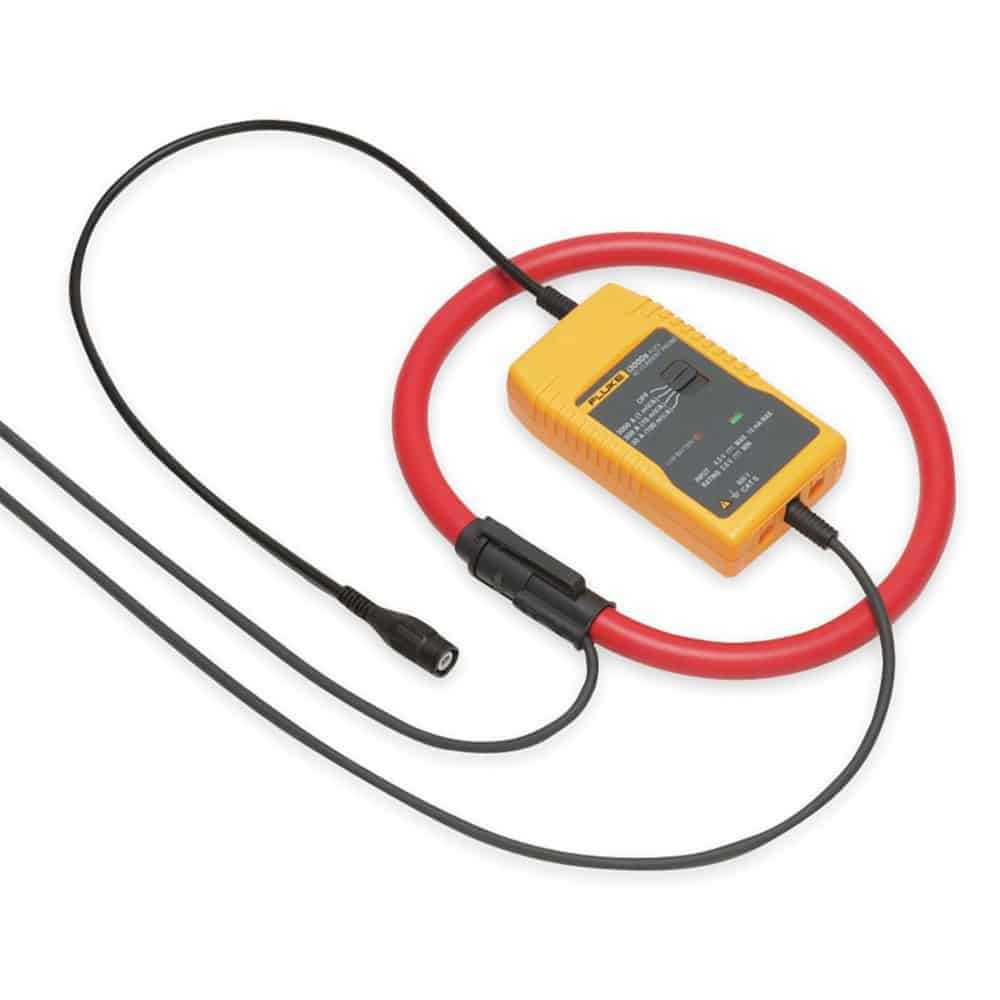

Fluke i3000s flex-36 Ac Current Clamp, 36 Inch Length, (3000 A); 915 mm is a product engineered with precision, delivering exceptional performance
with features like three ranges 30 A 300 A 3000 A 1 10 or 100 mVA output, ideal for current measurement on thick and hard to reach conductors without breaking the circuit and maximum conductor diameter 178 mm 7 in.
Maintive brings to you 100% genuine Current Clamps from Fluke at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order i3000s flex-36 Ac Current Clamp, 36 Inch Length, (3000 A); 915 mm today at the best price only from Maintive.
Features
Three ranges 30 A 300 A 3000 A, 1, 10 or 100 mV/A output
Ideal for current measurement on thick and hard to reach conductors without breaking the circuit
Maximum conductor diameter 178 mm (7 in.)
CAT III 600 V safety rating
Items Included
Fluke i3000s Flex-36 AC Current Clamp
36 inch length
Specifications
Current ranges 30 A
Output sensitivity (AC-coupled) 1 mV per A
Load impedance 100 kΩ minimum
Accuracy at +25 °C ± 1 % of range (45 Hz to 65 Hz)
Linearity 10 % to 100 % of range ± 0.2 % of reading
Noise 8 mV ac rms (30 A)
Frequency range 10 Hz to 50 kHz (-3 dB)
Head cable diameter 14.3 mm (0.56 in)
Head bend radius 38.1 mm (1.5 in)
Cable length (head to electronics) 2 m (6.56 ft)
Warranty1 year manufacturer's warranty
Current ranges 30 A
Output sensitivity (AC-coupled) 1 mV per A
Load impedance 100 kΩ minimum
Accuracy at +25 °C ± 1 % of range (45 Hz to 65 Hz)
Linearity 10 % to 100 % of range ± 0.2 % of reading
Noise 8 mV ac rms (30 A)
Frequency range 10 Hz to 50 kHz (-3 dB)
Head cable diameter 14.3 mm (0.56 in)
Head bend radius 38.1 mm (1.5 in)
Cable length (head to electronics) 2 m (6.56 ft)
Warranty1 year manufacturer's warranty
