Fluke i310s AC/DC Current Clamp Measuring Ranges: ±45 A And 450 A is a product engineered with precision, delivering exceptional performance. Maintive brings to you 100% genuine Current Clamps from Fluke at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order i310s AC/DC Current Clamp Measuring Ranges: ±45 A And 450 A today at the best price only from Maintive.
Features
The i310s current probe is based on Hall Effect technology for use in measurement of both DC and AC current.

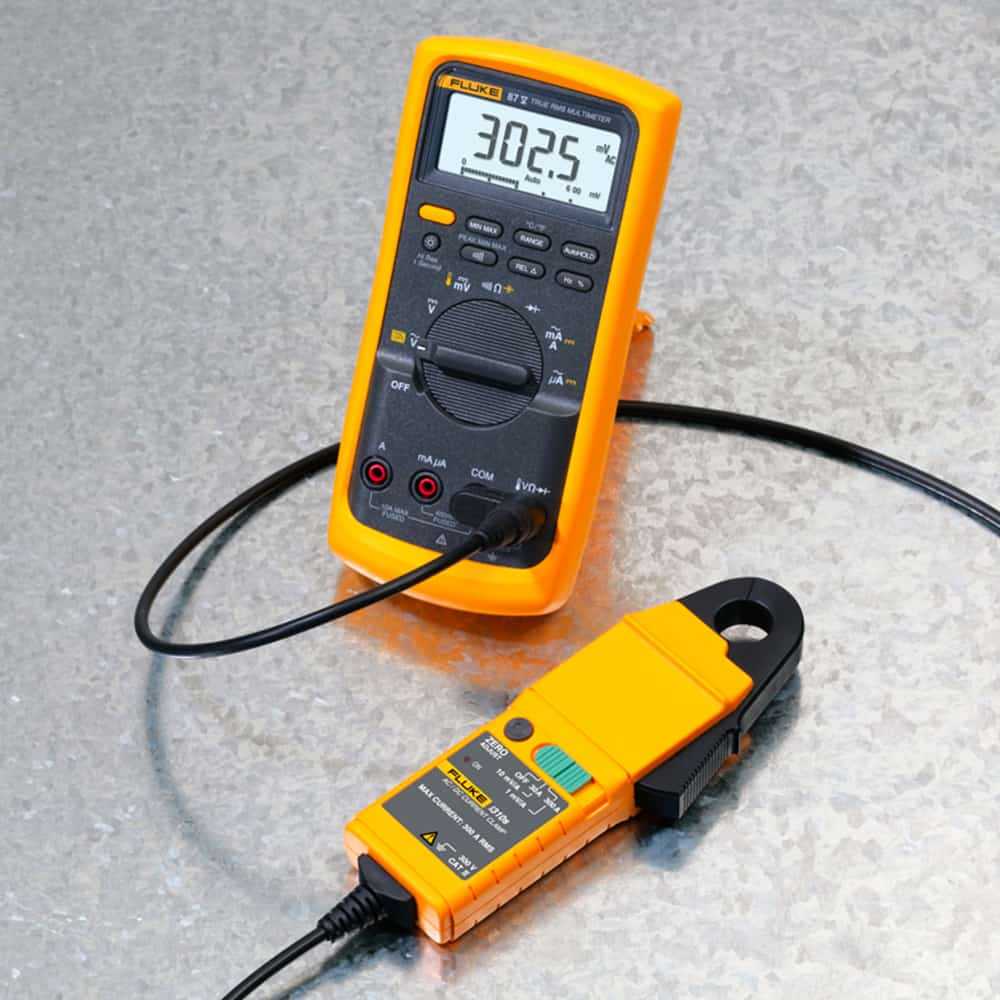

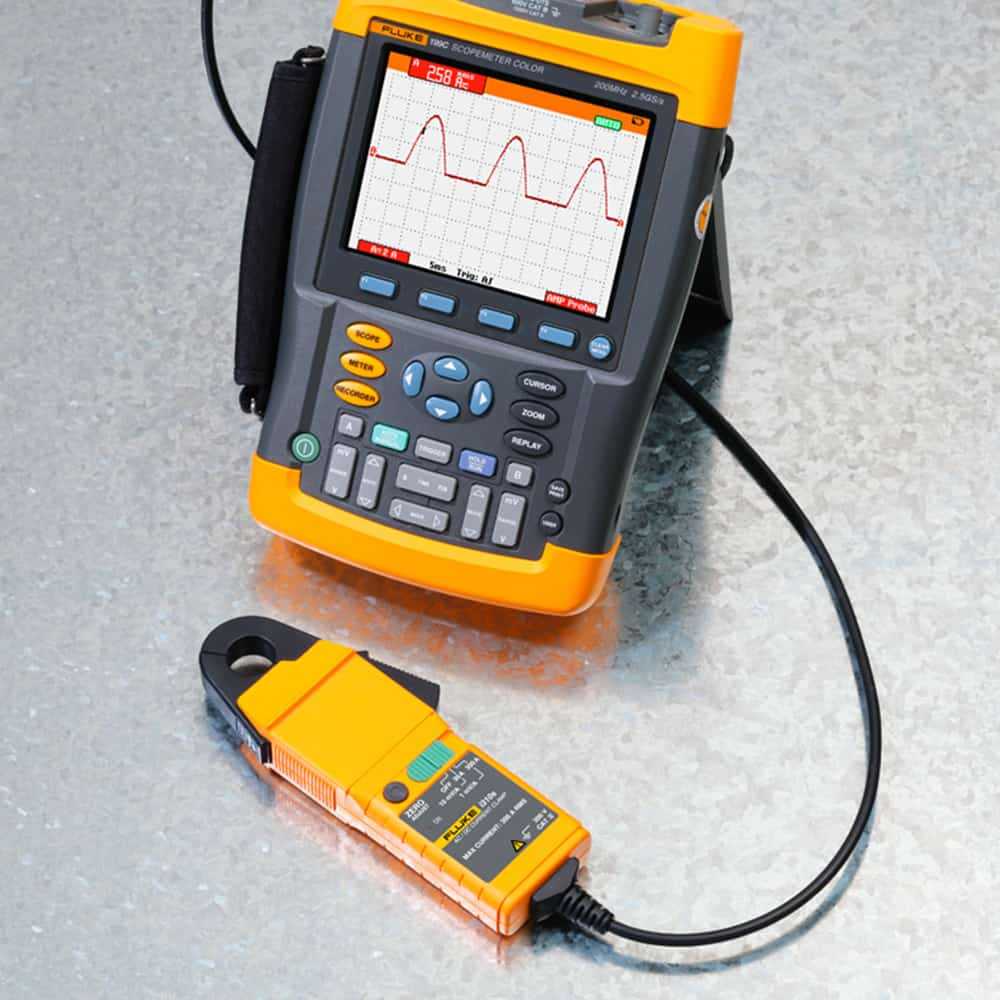

The i310s may be used in conjunction with oscilloscopes and other suitable recording instruments for accurate non-intrusive current measurement.
Items Included

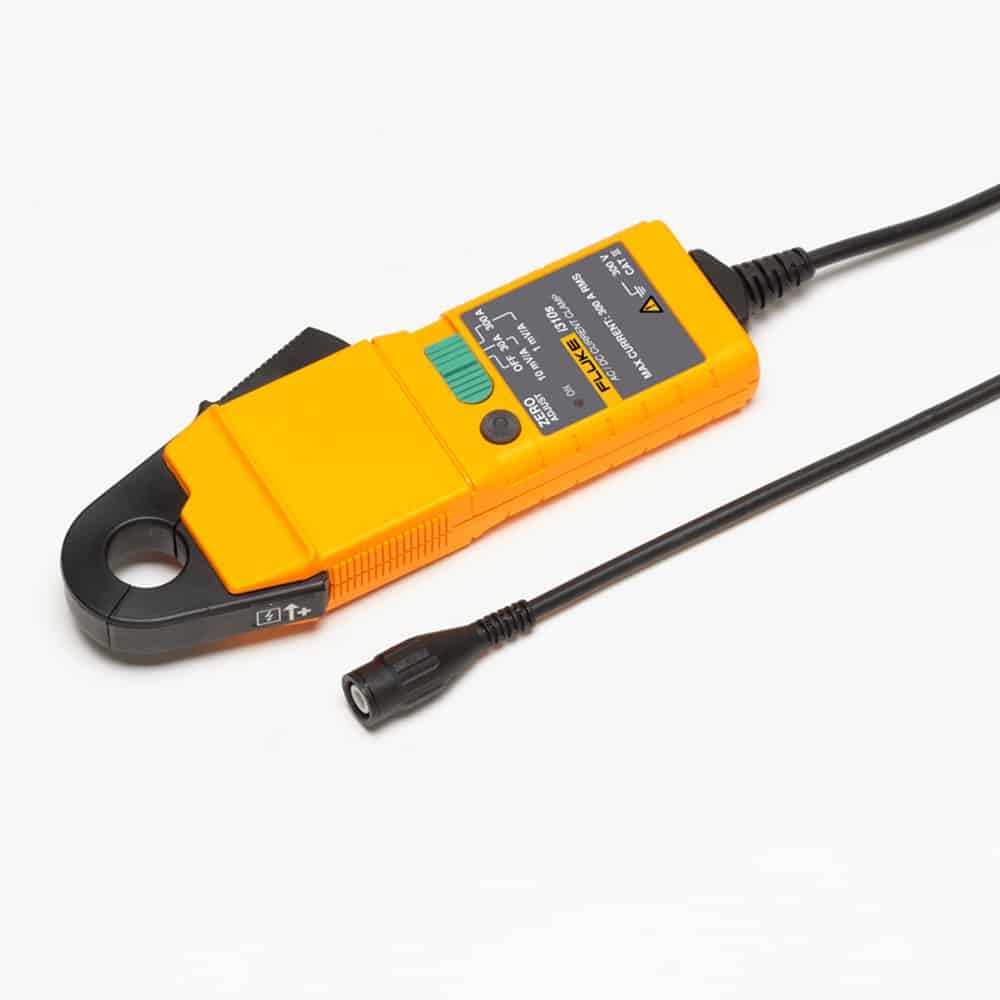

Fluke i310s Current Probe
Specifications
Current Ranges 30 A and 300 A ACRMS or ±45 A and 450 A DC
ACRMS or DC ±45 A and 450 A
Inrush Current 600A ACRMS MAX
Output Sensitivity 10 mV/A (30 A)
Accuracy (at +25°C) (30A range) ±1% of reading ±50 mA
Bandwidth to meet accuracy specification 1 kHz
Phase Shift below 1 kHz < 2 degrees
Resolution ±50 mA (30 A)
Operating Temperature Range -10 to +50 °C
Storage Temperature Range (with battery removed) -20 to +85 °C
Operating Humidity 15% to 85% (non-condensing)
Warranty1 year manufacturer's warranty
Current Ranges 30 A and 300 A ACRMS or ±45 A and 450 A DC
ACRMS or DC ±45 A and 450 A
Inrush Current 600A ACRMS MAX
Output Sensitivity 10 mV/A (30 A)
Accuracy (at +25°C) (30A range) ±1% of reading ±50 mA
Bandwidth to meet accuracy specification 1 kHz
Phase Shift below 1 kHz < 2 degrees
Resolution ±50 mA (30 A)
Operating Temperature Range -10 to +50 °C
Storage Temperature Range (with battery removed) -20 to +85 °C
Operating Humidity 15% to 85% (non-condensing)
Warranty1 year manufacturer's warranty
