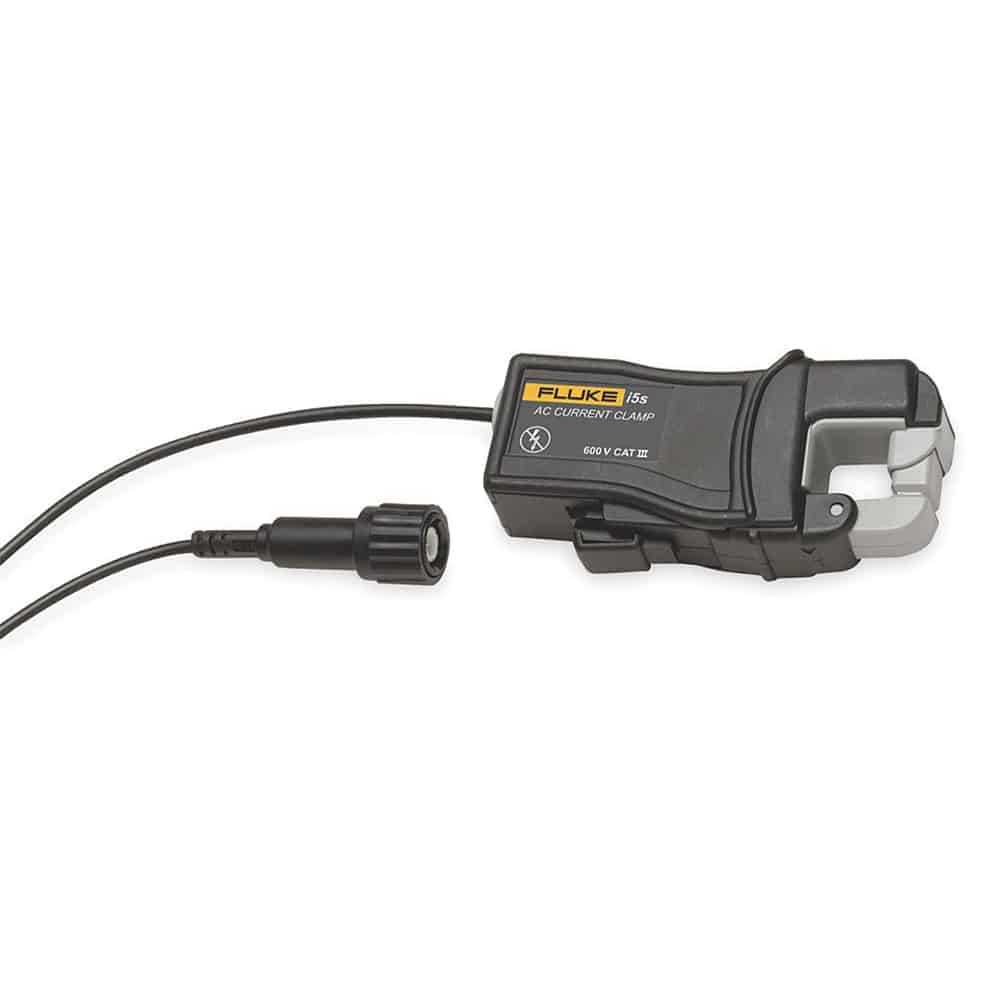

Fluke i5s Current Clamp, 5A AC is a product engineered with precision, delivering exceptional performance
with features like low level current clamp measures up to 5 A ac, compact shape makes transporting and storing convenient the clamp measures only 116 x 43 x 23 mm 4 6 x 17 x 9 inches and take accurate readings without breaking the circuit.
Maintive brings to you 100% genuine Power Quality Tools Accessories from Fluke at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order i5s Current Clamp, 5A AC today at the best price only from Maintive.
Features
Low level current clamp measures up to 5 A ac
Compact shape makes transporting and storing convenient; the clamp measures only 116 x 43 x 23 mm (4. 6 x 1.7 x .9 inches)
Take accurate readings without breaking the circuit
CAT III 600 V (For insulated conductors only)
Items Included
Fluke i5S AC Current Clamp 5A
Specifications
Nominal current range5 A
Continuous current range10 mA to 6 A
Maximum Non-Destructive Current70 A
Lowest measurable current10 mA
Basic Accuracy48 Hz to 65 Hz
Useable frequency40 Hz to 5 kHz
Output level(s)400 mV/A
Input Load Impedance> 1 MΩ in parallel with up to 47 pF
Crest Factor3, add 0.7% to accuracy
SafetyCAT III 600 V per IEC/EN61010-1, Pollution Degree 2
Warranty1 year manufacturer's warranty
Nominal current range5 A
Continuous current range10 mA to 6 A
Maximum Non-Destructive Current70 A
Lowest measurable current10 mA
Basic Accuracy48 Hz to 65 Hz
Useable frequency40 Hz to 5 kHz
Output level(s)400 mV/A
Input Load Impedance> 1 MΩ in parallel with up to 47 pF
Crest Factor3, add 0.7% to accuracy
SafetyCAT III 600 V per IEC/EN61010-1, Pollution Degree 2
Warranty1 year manufacturer's warranty
