Fluke i800 Ac Current Clamp (800 A) Cat III 600 V Rating is a product engineered with precision, delivering exceptional performance
with features like measures AC current from 100 mA to 800 A rms, 30 Hz to 10 kHz frequency range and cAT III 600 V rating.
Maintive brings to you 100% genuine Current Clamps from Fluke at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order i800 Ac Current Clamp (800 A) Cat III 600 V Rating today at the best price only from Maintive.
Features
Measures AC current from 100 mA to 800 A rms
30 Hz to 10 kHz frequency range
CAT III 600 V rating
Accepts up to 54 mm (2.1 in) diameter conductor size
1000:1 conversion factor for easy calculation
Items Included

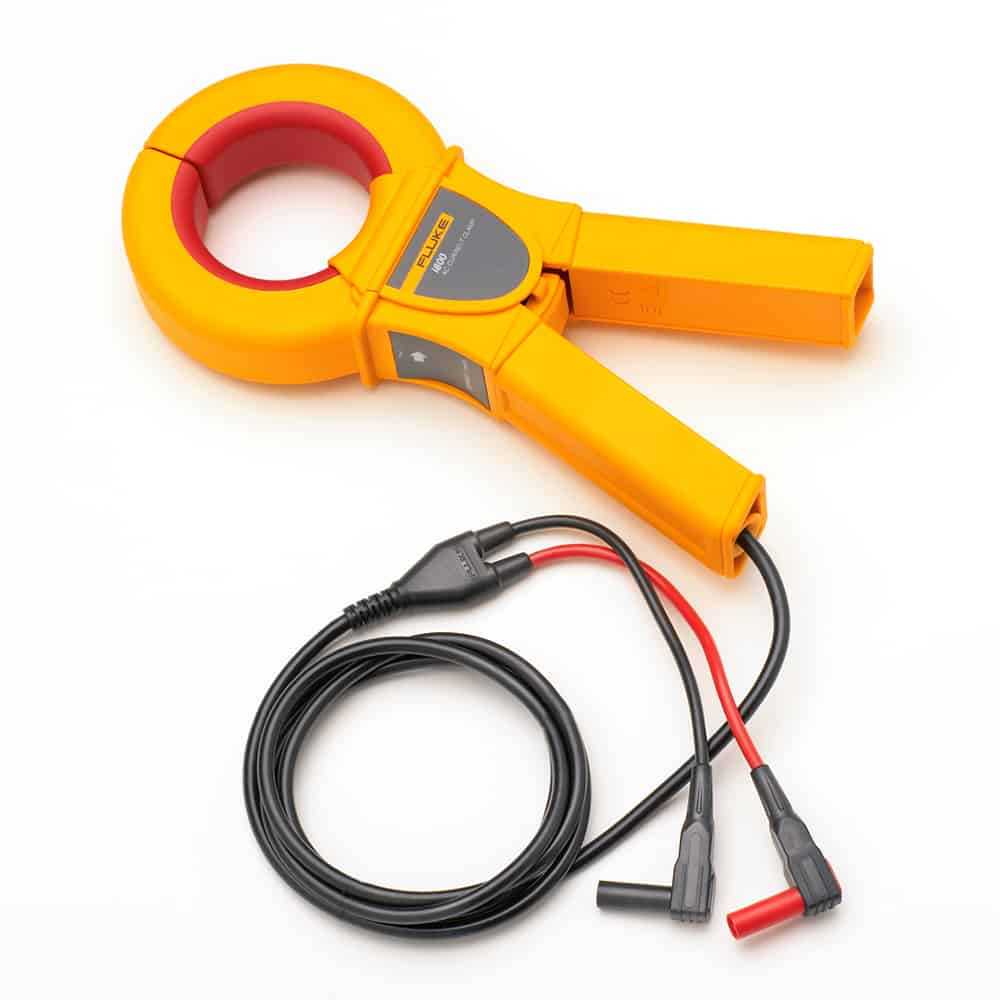

Fluke i800 AC Current Clamp Probe
Specifications
Nominal current range 800 A rms
Continuous current range 100 mA to 800 A rms
Maximum Non-Destrucive Current 1500 A rms (50/60 Hz)
Lowest measurable current 100 mA
Basic accuracy ±1% of reading
Useable frequency 30 Hz - 10 kHz (-3dB)
Output level(s) 1 mA / A
Maximum conductor diameter 54 mm (2.13 inches)
Output cable length 1.6 m (63 inches)
Warranty1 year manufacturer's warranty
Nominal current range 800 A rms
Continuous current range 100 mA to 800 A rms
Maximum Non-Destrucive Current 1500 A rms (50/60 Hz)
Lowest measurable current 100 mA
Basic accuracy ±1% of reading
Useable frequency 30 Hz - 10 kHz (-3dB)
Output level(s) 1 mA / A
Maximum conductor diameter 54 mm (2.13 inches)
Output cable length 1.6 m (63 inches)
Warranty1 year manufacturer's warranty
