Key Features
- Brand: Fluke
- Model: PRV240
- Warranty: 1 year manufacturer's warranty
Important Information: Ensure Genuine Products and Warranty Coverage
Select Click & Collect on checkout within the next 7 Hours, 32 minutes.
You may also like...
Product Information

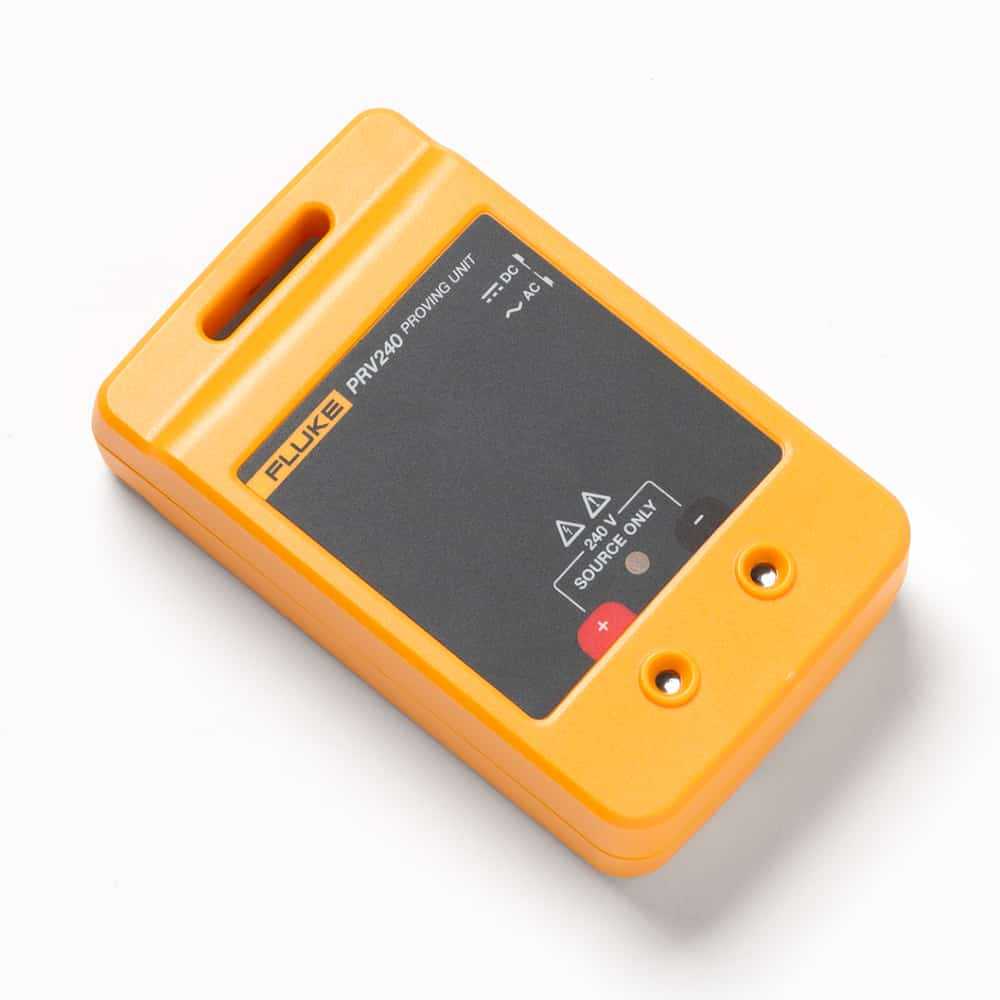

Fluke PRV240 Proving Unit, 240V DC/AC is a product engineered with precision, delivering exceptional performance. Maintive brings to you 100% genuine Voltage Testers from Fluke at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order PRV240 Proving Unit, 240V DC/AC today at the best price only from Maintive.
Features
-

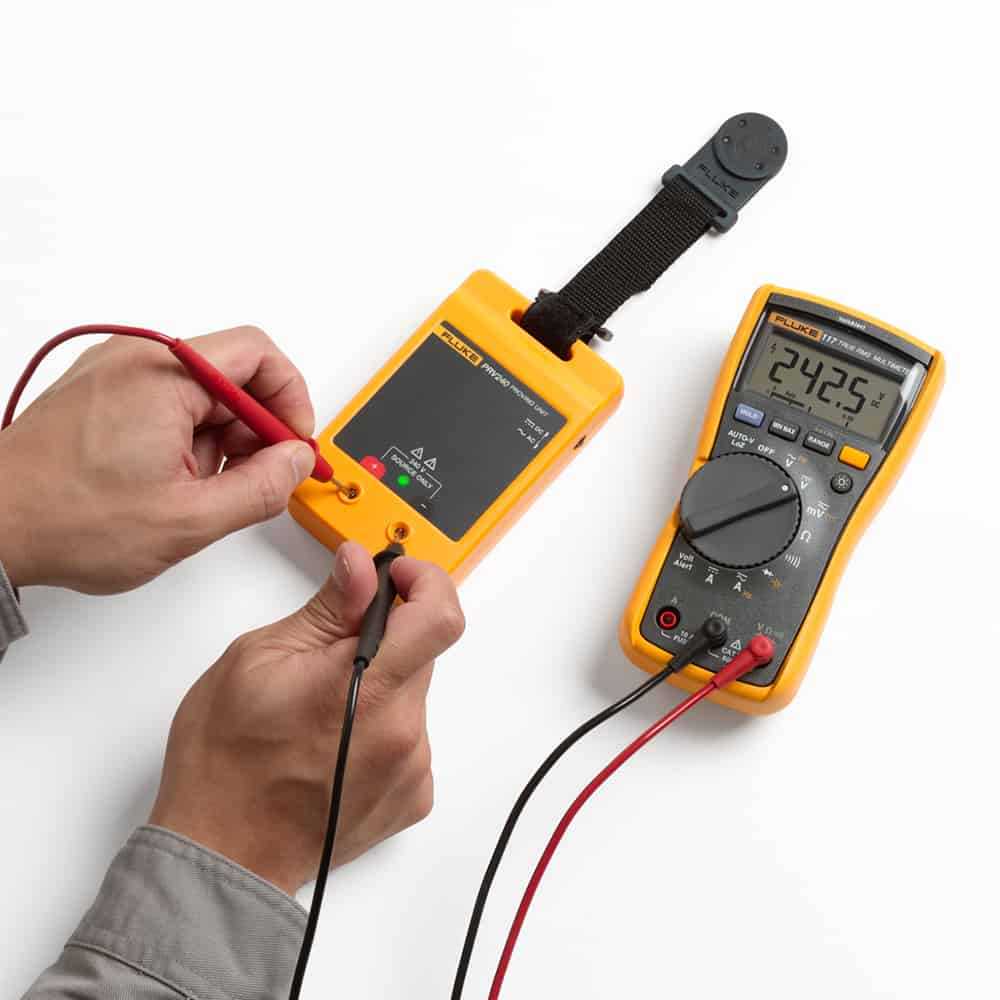

Compatible with both high impedance or low impedance multimeters; clamp meters or two pole testers
-
Voltage is sourced through recessed contacts that are activated when tested probes are inserted to avoid accidental contact
-

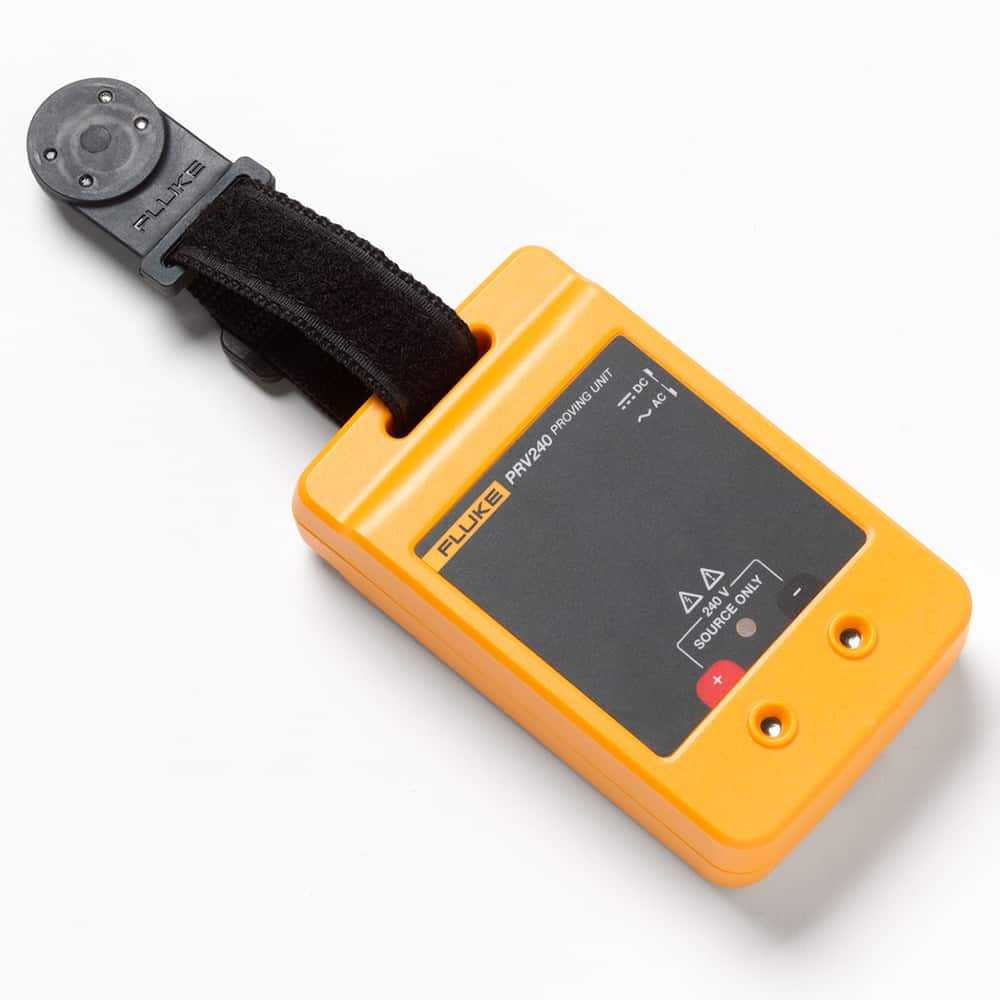

Includes Magnetic Hanging Strap
-
Validate test tool functionality outside of hazardous zones
-
Long battery life—5,000 tests per set of four AA batteries
-
Designed for safety and compliance
Items Included
- Fluke PRV240 Proving Unit
- TPAK Magnetic hanging strap
- AA Batteries (x4)
- Instruction Sheet
Specifications
- Voltage240 V AC RMS or DC: ±10 % ≥1 MΩ
- Output voltageLoZ >3 kΩ load: 60 V AC typical; 50 V AC RMS minimum
- LED power indicatorTurns on when output voltage is present
- Battery4 x AA Alkaline batteries NEDA (24 A IEC LR03)
- Battery life5000 (5-second duration) test cycles with >1 MΩ load, 300 tests minimum with >3 kΩ load
- Operating temperature-10 to +50 °C
- Operating humidity0 % to 90 % (0 to 35 °C)
- Operating altitude2000 m
- Dimensions11.7 cm x 7.4 cm x 2.8 cm (4.6 in x 2.9 in x 1.1 in)
- Weight0.23 kg (8 oz)
- Warranty1 year manufacturer's warranty
- Voltage240 V AC RMS or DC: ±10 % ≥1 MΩ
- Output voltageLoZ >3 kΩ load: 60 V AC typical; 50 V AC RMS minimum
- LED power indicatorTurns on when output voltage is present
- Battery4 x AA Alkaline batteries NEDA (24 A IEC LR03)
- Battery life5000 (5-second duration) test cycles with >1 MΩ load, 300 tests minimum with >3 kΩ load
- Operating temperature-10 to +50 °C
- Operating humidity0 % to 90 % (0 to 35 °C)
- Operating altitude2000 m
- Dimensions11.7 cm x 7.4 cm x 2.8 cm (4.6 in x 2.9 in x 1.1 in)
- Weight0.23 kg (8 oz)
- Warranty1 year manufacturer's warranty
