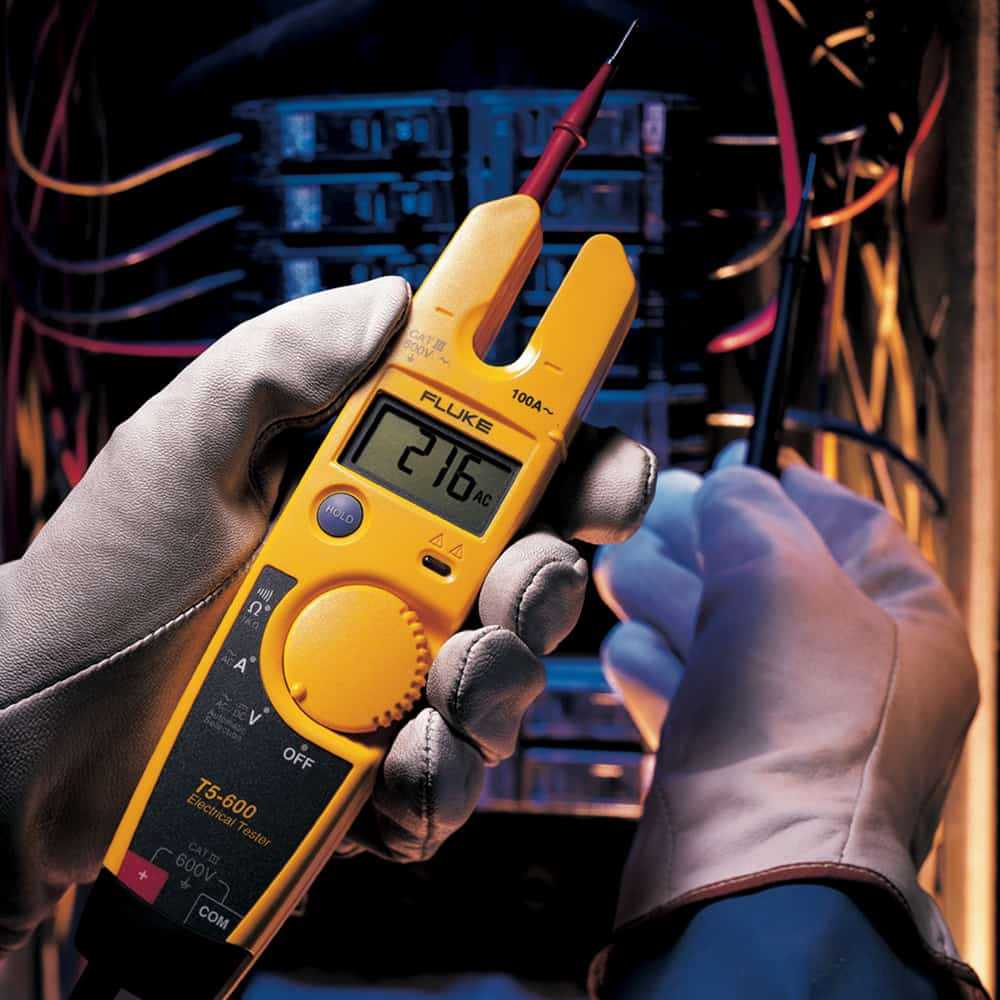

Voltage, Continuity And Current Tester With Open Jaw™, CAT III 600V, 0 to 600V

Model # T5-600
AED 601.00Incl. of VAT
AED 667.0010% Off
Use Coupon Code: WELCOME25
This item is eligible for return.
Orders over AED 99 ship free in the UAE.
Want to know when it's back in stock?

Features

  • Automatically measures volts ac and volts dc with precise digital resolution
  • Displays resistance to 1000"
  • Easy and accurate OpenJaw™ current measurement
  • Continuity beeper
  • Measure current more safely without metallic contact
  • Measure resistance when troubleshooting motors, HVAC systems or electrical systems
  • Built-in continuity beeper provides fast and easy go/no-go tests
  • This continuity tester features a compact design with handy probe storage, easily fits in one hand
  • The test lead slot in the back makes the meter an “extended handle” for the probe, leaving the other hand free to place the second lead

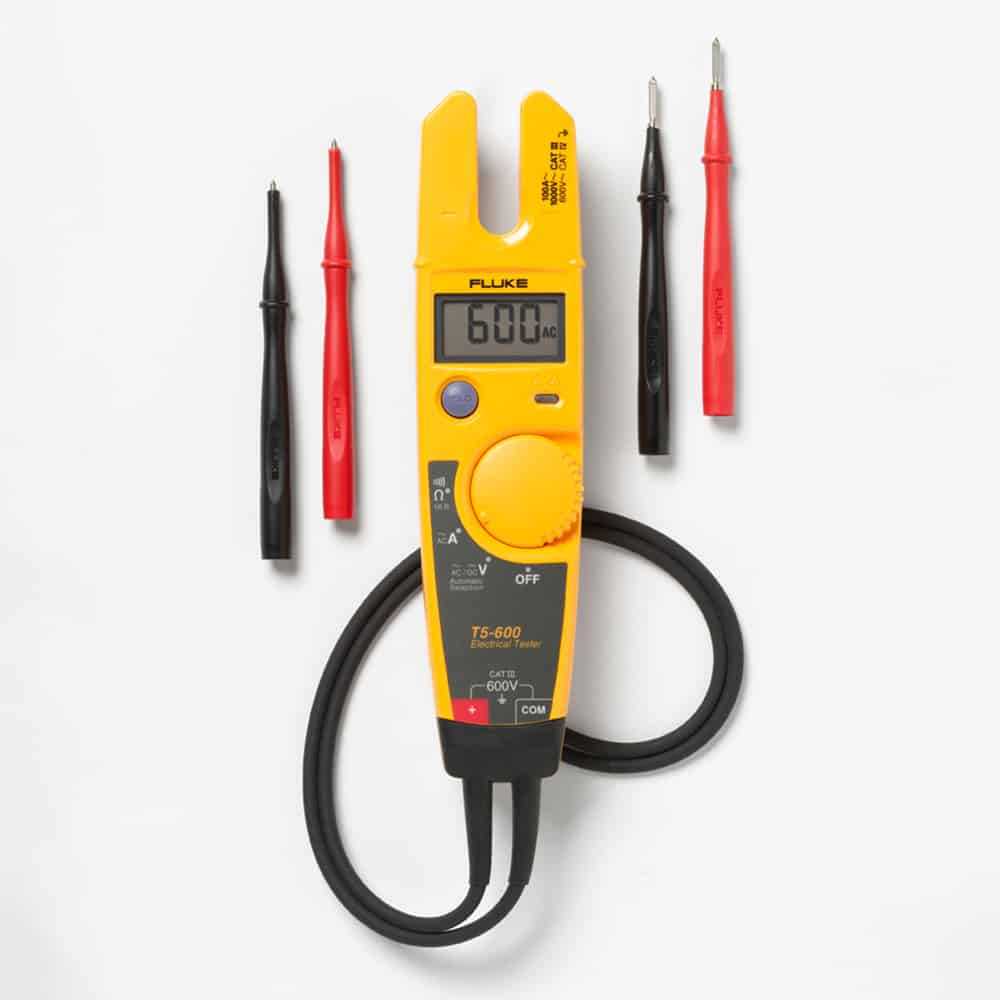

Items Included

  • 600 V Voltage
  • continuity and current tester 4 mm detachable probes Instruction sheet

Specifications

  • Jaw Opening0.5" (12.9 mm)
  • Max Wire Size1/0 THHN Cable
  • Current Range0 to 100.0 A AC RMS
  • Accuracy AC Current3% ± 3 counts (50/60 Hz)
  • AC ResponseAveraging
  • Voltage0 to 600 V
  • Accuracy AC Voltage1.5% ± 2 counts
  • Resistance Range0 to 1000 Ω
  • Operating Temperature50 to 122°F (10 to 50°C)
  • Storage Temperature-22 to 140°F (-30 to 60°C)
  • Temperature Coefficient0.1 x (specified accuracy)/°C (<18°C or >28°C)
  • Dimensions1.2 x 2 x 8" (30.5 x 51 x 203 mm)
  • Warranty2 years manufacturer's warranty
