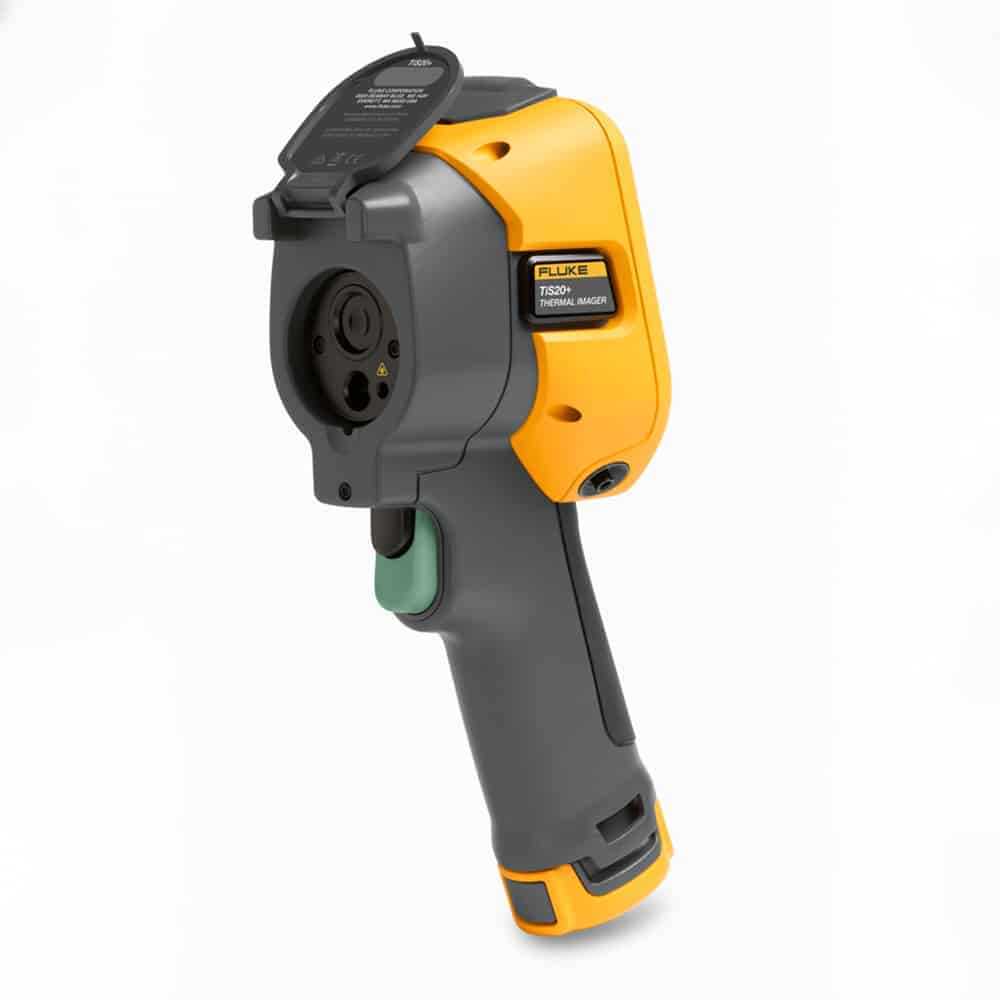

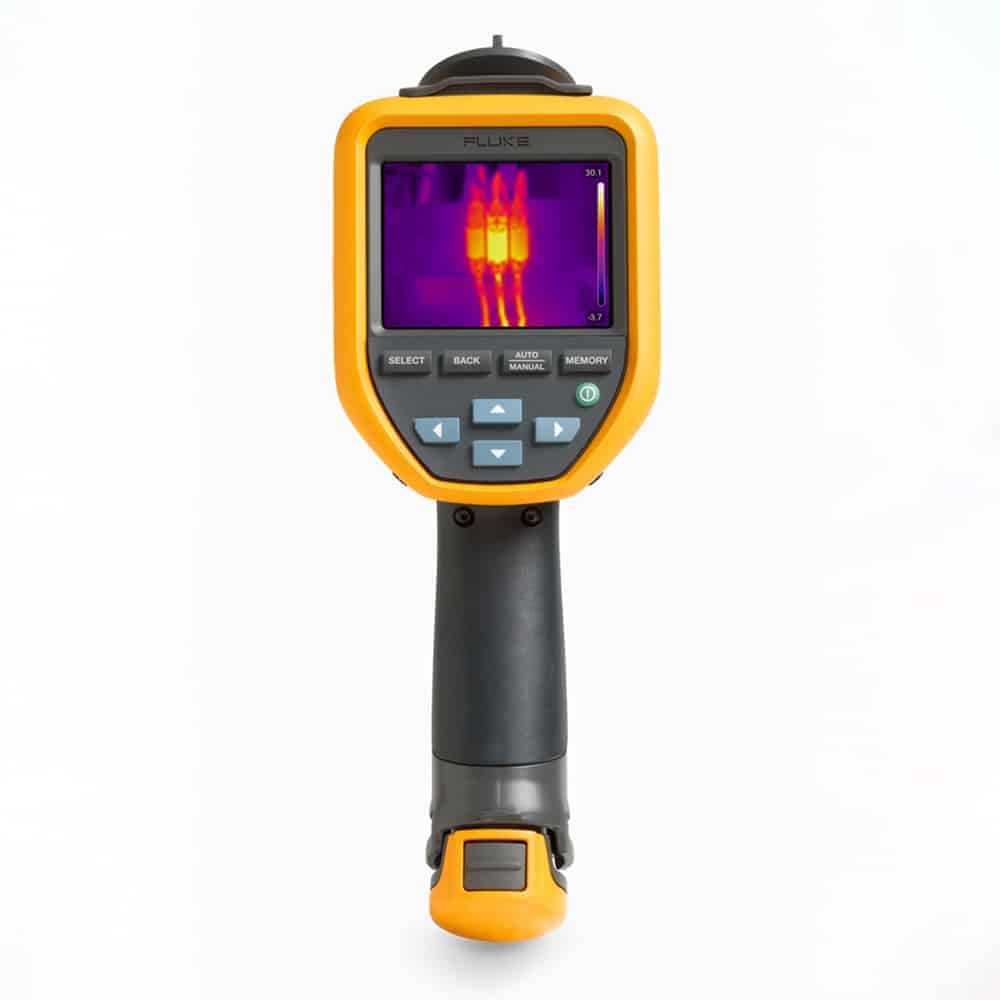

Fluke TIS20+ 9Hz Thermal Imaging Camera, 120x90, 9Hz, -20 to 150 °C is a product engineered with precision, delivering exceptional performance
with features like continuous touchscreen IRFusion™, 5 hours battery life and can withstand drop up to 2 meter.
Maintive brings to you 100% genuine Thermal Cameras from Fluke at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order TIS20+ 9Hz Thermal Imaging Camera, 120x90, 9Hz, -20 to 150 °C today at the best price only from Maintive.
Features
Continuous touchscreen IR-Fusion™
5 hours battery life
Can withstand drop up to 2 meter
Water and dust resistant—IP54 enclosure rating
Automatically organize and file thermal images with Fluke Connect™ Asset Tagging
120 x 90 infrared resolution
2 meter drop tested
Items Included
Thermal imager AC power supply Rugged lithium ion smart battery
USB cable
Soft transport bag
Specifications
IFOV (spatial resolution)7.6 mRad, D:S 130:1
Infrared resolution120 x 90 (10,800pixels)
Field of view50° H x 38° V
Minimum focus distance50cm (20 Inches)
Thermal sensitivity (NETD)60 mK
Frame rate9 Hz
Temperature-20 °C to 150 °C
Infrared spectral band8 μm to 14 μm (long wave)
Operating temperature-10 °C to 50 °C (14 °F to 122 °F)
Storage temperature-40 °C to 70 °C (-40 °F to 158 °F)
Relative humidity95 % non-condensing
Vibration and shock10 Hz to 150 Hz, 0.15 mm, IEC 60068-2-6; 30 g, 11 ms, IEC 60068-2-27
Size (H x W x L)26.7 cm x 10.1 cm x 14.5 cm (10.5 Inches x 4.0 Inches x 5.7 Inches)
Warranty2 years manufacturer's warranty
IFOV (spatial resolution)7.6 mRad, D:S 130:1
Infrared resolution120 x 90 (10,800pixels)
Field of view50° H x 38° V
Minimum focus distance50cm (20 Inches)
Thermal sensitivity (NETD)60 mK
Frame rate9 Hz
Temperature-20 °C to 150 °C
Infrared spectral band8 μm to 14 μm (long wave)
Operating temperature-10 °C to 50 °C (14 °F to 122 °F)
Storage temperature-40 °C to 70 °C (-40 °F to 158 °F)
Relative humidity95 % non-condensing
Vibration and shock10 Hz to 150 Hz, 0.15 mm, IEC 60068-2-6; 30 g, 11 ms, IEC 60068-2-27
Size (H x W x L)26.7 cm x 10.1 cm x 14.5 cm (10.5 Inches x 4.0 Inches x 5.7 Inches)
