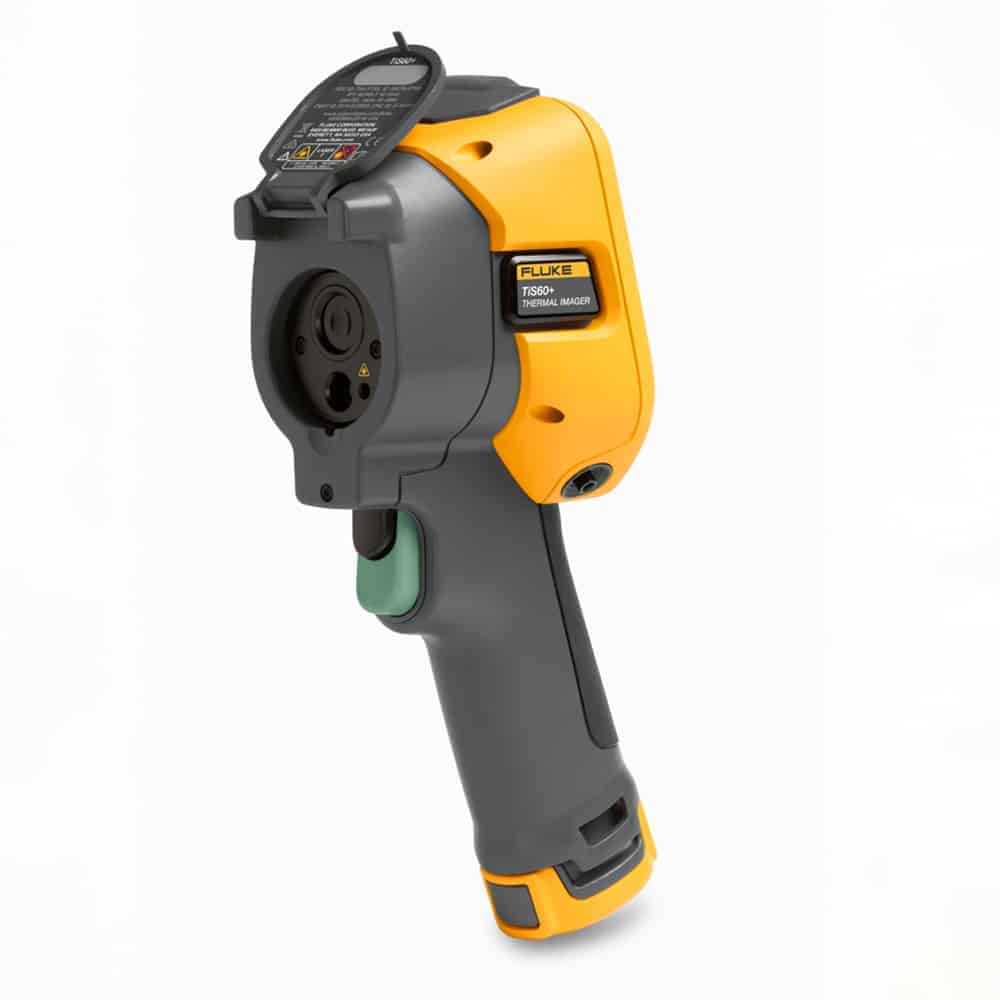

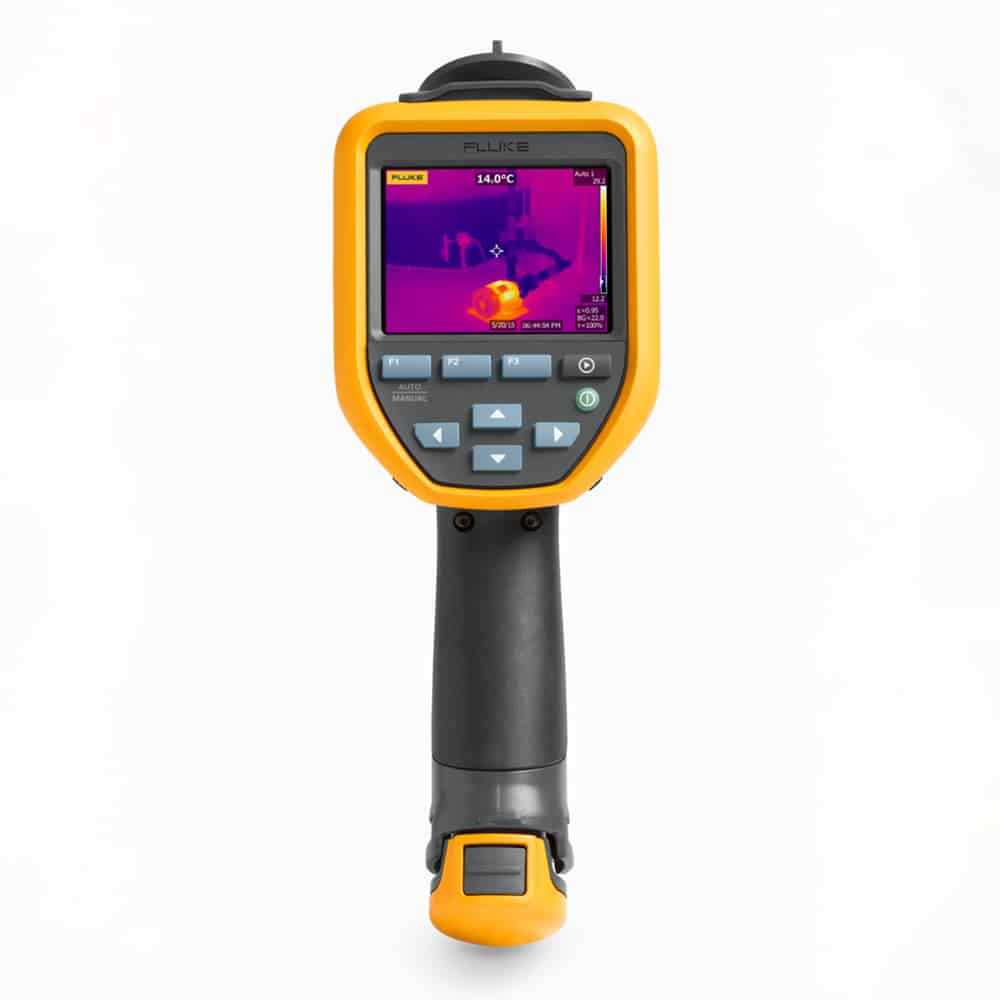

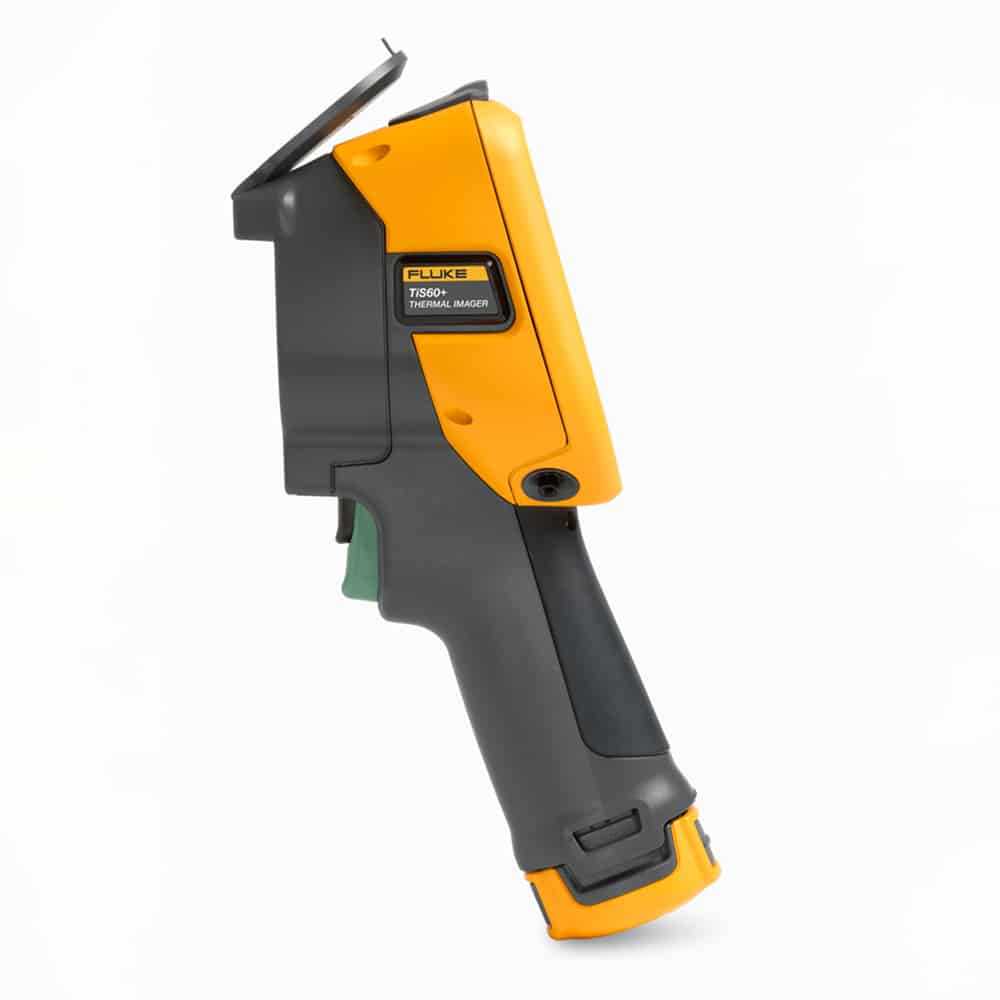

Fluke TIS60+ 9Hz Thermal Imaging Camera, 320x240, 9Hz, -20 to 400 °C is a product engineered with precision, delivering exceptional performance
with features like adjustable display illumination, adjustable display illumination and autoBlend function.
Maintive brings to you 100% genuine Thermal Cameras from Fluke at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order TIS60+ 9Hz Thermal Imaging Camera, 320x240, 9Hz, -20 to 400 °C today at the best price only from Maintive.
Features
adjustable display illumination
adjustable display illumination
AutoBlend function
color alarms
IR Fusion™ technology for context
3.5 inch LCD screen
One-handed image capture, review and save capability
Fluke Connect™ compatibility for sharing wirelessly
Items Included
Thermal imager AC power supply (including universal AC adapters)
Two-bay smart battery charger
Two rugged lithium ion smart batteries
USB cable
4 GB micro SD card
Rugged hard carrying case with soft transport bag and adjustable hand strap
Available by free download: Fluke Connect™ software and user manual
Specifications
IFOV (spatial resolution)1.86 mRad, D:S 532:1
Infrared resolution320 x 240 (76,800 pixels)
Field of view34.1 °H x 25.6 °H
Minimum focus distance46 cm (18 Inches)
Thermal sensitivity (NETD)≤ 0.045 °C at 30 °C target temp (45 mK)
Frame rate< 9 Hz or 30 Hz
Temperature-20 °C to 400 °C (-4 °F to 752 °F)
Color alarmsHigh temperature, low temperature, isotherms (within range)
Infrared spectral band7.5 μm to 14 μm
Operating temperature-10 °C to +50 °C (14 °F to 122 °F)
Storage temperature-20 °C to +50 °C (-4 °F to 122 °F) without batteries
Relative humidity10 % to 95 %, non-condensing
Vibration2G, IEC 68-2-6
Shock25G, IEC 68-2-29
Size(H x W x L)
Warranty2 years manufacturer's warranty
IFOV (spatial resolution)1.86 mRad, D:S 532:1
Infrared resolution320 x 240 (76,800 pixels)
Field of view34.1 °H x 25.6 °H
Minimum focus distance46 cm (18 Inches)
Thermal sensitivity (NETD)≤ 0.045 °C at 30 °C target temp (45 mK)
Frame rate< 9 Hz or 30 Hz
Temperature-20 °C to 400 °C (-4 °F to 752 °F)
Color alarmsHigh temperature, low temperature, isotherms (within range)
Infrared spectral band7.5 μm to 14 μm
Operating temperature-10 °C to +50 °C (14 °F to 122 °F)
Storage temperature-20 °C to +50 °C (-4 °F to 122 °F) without batteries
