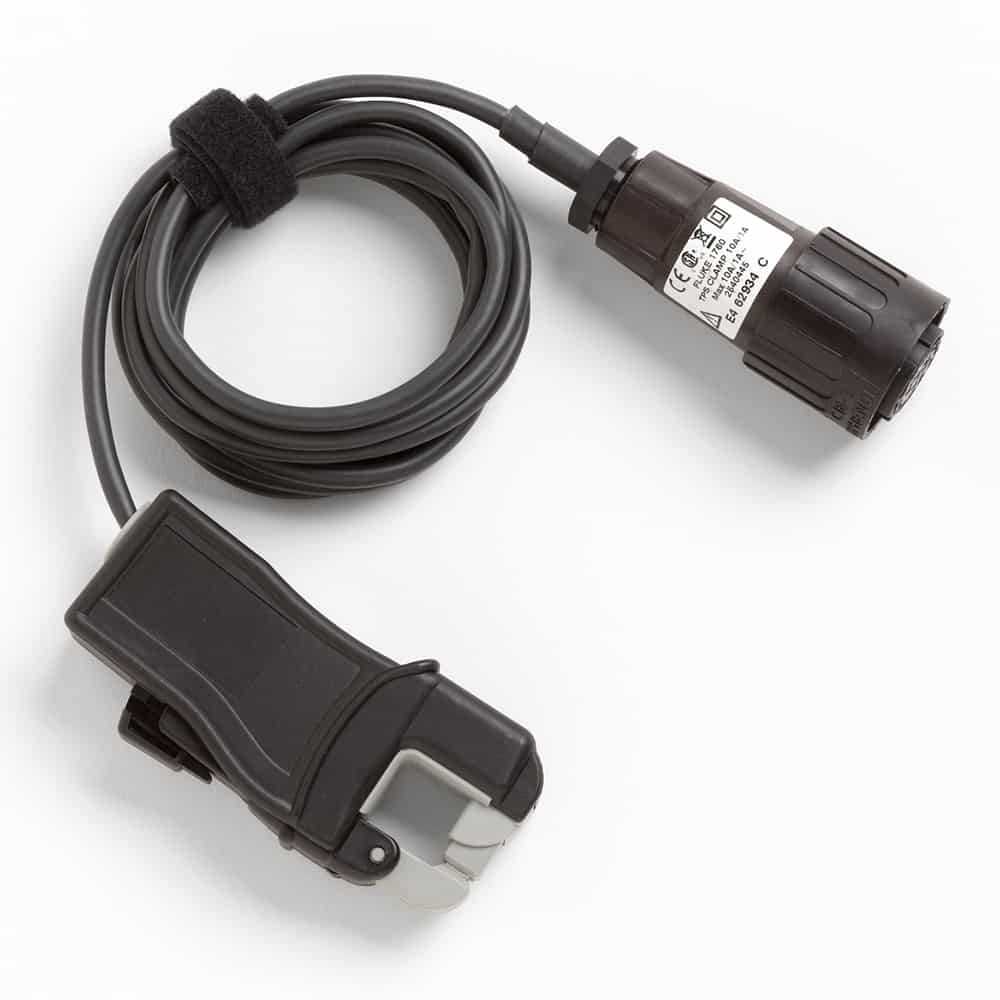

Fluke TPS CLAMP 10A/1A Clip-On Current Transformer, 10A/1A, for Fluke 1760 Power and Energy Loggers is a product engineered with precision, delivering exceptional performance
with features like measurement range 001A to 1A01A to 10A AC, peak current for sinusoidal currents 37A 37A and intrinsic error 05.
Maintive brings to you 100% genuine Power Quality Tools Accessories from Fluke at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order TPS CLAMP 10A/1A Clip-On Current Transformer, 10A/1A, for Fluke 1760 Power and Energy Loggers today at the best price only from Maintive.
Features
Measurement range: 0.01A to 1A/0.1A to 10A AC
Peak current for sinusoidal currents: 3.7A /37A
Intrinsic error: 0.5%
Frequency Range: 40Hz to 10kHz
Specifications
Measuring Range selectable per software0.01 A to 1 A
Peak current for sinusoidal currents3.7A
Intrinsic error0.5%
Frequency Range40 Hz to 10 kHz
Operating Voltage300 V CAT IV
Phase Error0.5°
Jaw Opening15 mm diameter or 15 x 17 mm bus bars
Warranty1 year manufacturer's warranty
Measuring Range selectable per software0.01 A to 1 A
Peak current for sinusoidal currents3.7A
Intrinsic error0.5%
Frequency Range40 Hz to 10 kHz
Operating Voltage300 V CAT IV
Phase Error0.5°
Jaw Opening15 mm diameter or 15 x 17 mm bus bars
Warranty1 year manufacturer's warranty
