Fluke VPS40-III Voltage Probe is a product engineered with precision, delivering exceptional performance
with features like voltage probe 101 with safetydesigned shrouded 4mm test pin, use with 120 Series ScopeMeter and hook clip and ground lead included.
Maintive brings to you 100% genuine Portable Oscilloscopes Accessories from Fluke at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order VPS40-III Voltage Probe today at the best price only from Maintive.
Features
Voltage probe, 10:1, with safety-designed shrouded 4mm test pin
use with 120 Series ScopeMeter
Hook clip and ground lead included
The shrouded 4mm banana test pin makes this probe also compatible with standard safety-designed alligator clips
600V CAT III / 1000V CAT II rated

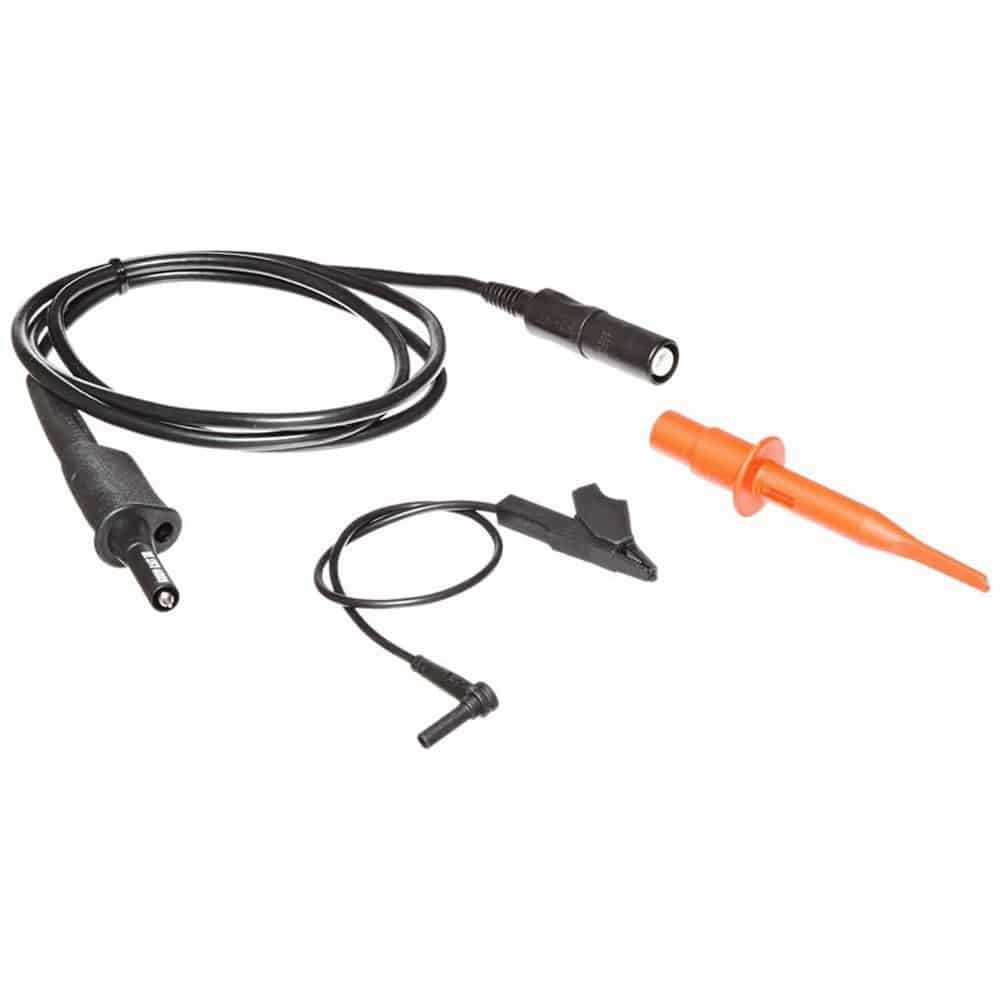

Items Included
10:1 Voltage Probe
1 Black Hook Clip
1 Red (HC120-III) Ground Lead with Mini Alligator
1 Black
Specifications
Attenuation 10x
Bandwidth DC to 40 MHz (-3 dB)
Max input voltage 600 V CAT III / 1000 V CAT II as per IEC61010-031:2008
V*Hz product 500*10^6 VHz
Max floating voltage See instrument manual
Input resistance / Capacitance 5 MΩ / 15.5 pF
Compensation Fixed for ScopeMeter 120 Series (14 pF)
Instrument connector 4 mm shielded banana plug
Cable length 1.2 m
Warranty1 year manufacturer's warranty
Attenuation 10x
Bandwidth DC to 40 MHz (-3 dB)
Max input voltage 600 V CAT III / 1000 V CAT II as per IEC61010-031:2008
V*Hz product 500*10^6 VHz
Max floating voltage See instrument manual
Input resistance / Capacitance 5 MΩ / 15.5 pF
Compensation Fixed for ScopeMeter 120 Series (14 pF)
Instrument connector 4 mm shielded banana plug
Cable length 1.2 m
Warranty1 year manufacturer's warranty
