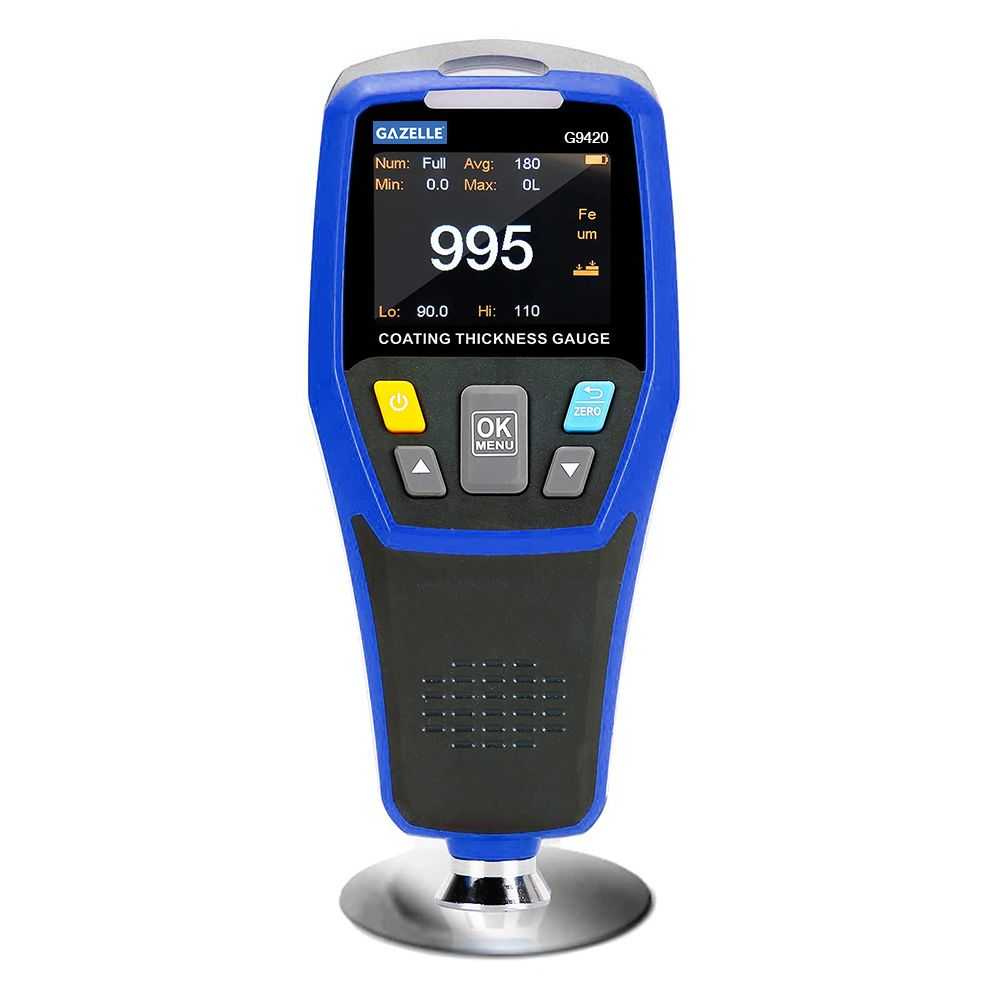

Gazelle G9420
Gazelle G9420
Gazelle G9420

Coating Thickness Gauge

Model # G9420
AED 546.00Incl. of VAT
In Stock
Gazelle Authorised Online Store
Buy with 0% installments and pay AED for months with select banks. Learn more
Use Coupon Code: WELCOME25
This item is eligible for return.
delivery
Delivery
Saturday, Sep 7
FREE
Click & Collect
Click & Collect
Today, 9:00 AM - 4:30 PM

You may also like...

Product Information

Gazelle G9420 Coating Thickness Gauge is a product engineered with precision, delivering exceptional performance

with features like can measure coating thickness on ferrous and nonferrous materials, designed with a unique quick test feature which allows users to set thickness range and a 3color LED and audio alarm helps quickly determine if the coating being tested falls within the preset range.
Maintive brings to you 100% genuine Thickness And Hardness Testers from Gazelle at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order G9420 Coating Thickness Gauge today at the best price only from Maintive.

Features

  • Can measure coating thickness on ferrous and non-ferrous materials.
  • Designed with a unique quick test feature, which allows users to set thickness range.
  • A 3-color LED and audio alarm helps quickly determine if the coating being tested falls within the preset range
  • Auto rotating display with LCD brightness control

Specifications

  • Measuring range0~1250µm
  • Accuracy±(3%H+1)µm
  • Resolution0.1µm (0~99.9µm); 1µm (100~1250µm)
  • Measurement methodSingle/Continuous
  • Measurement modeMax/Min/Avg
  • Metal typeFerrous/ non-ferrous
  • Display type2.0-inches TFT LCD (320 x 240 pixels)
  • LCD brightness controlYes
  • Auto rotatable screenYes
  • Unit conversionYes
  • Audio alarmYes
  • LED alarmYes
  • PC analysis softwareYes
  • USB communicationYes
  • Quick test modeYes
  • Data storage500 groups
  • Auto power offYes
  • Low battery indicationYes
  • Power1.5V AA battery x 2
  • Display48mm x 36mm
  • Product net weight175g
  • Product size153.5mm x 64.5mm x 41mm
  • Warranty1 year manufacturer's warranty

Downloads

pdf Thumbnail
Datasheet 1
