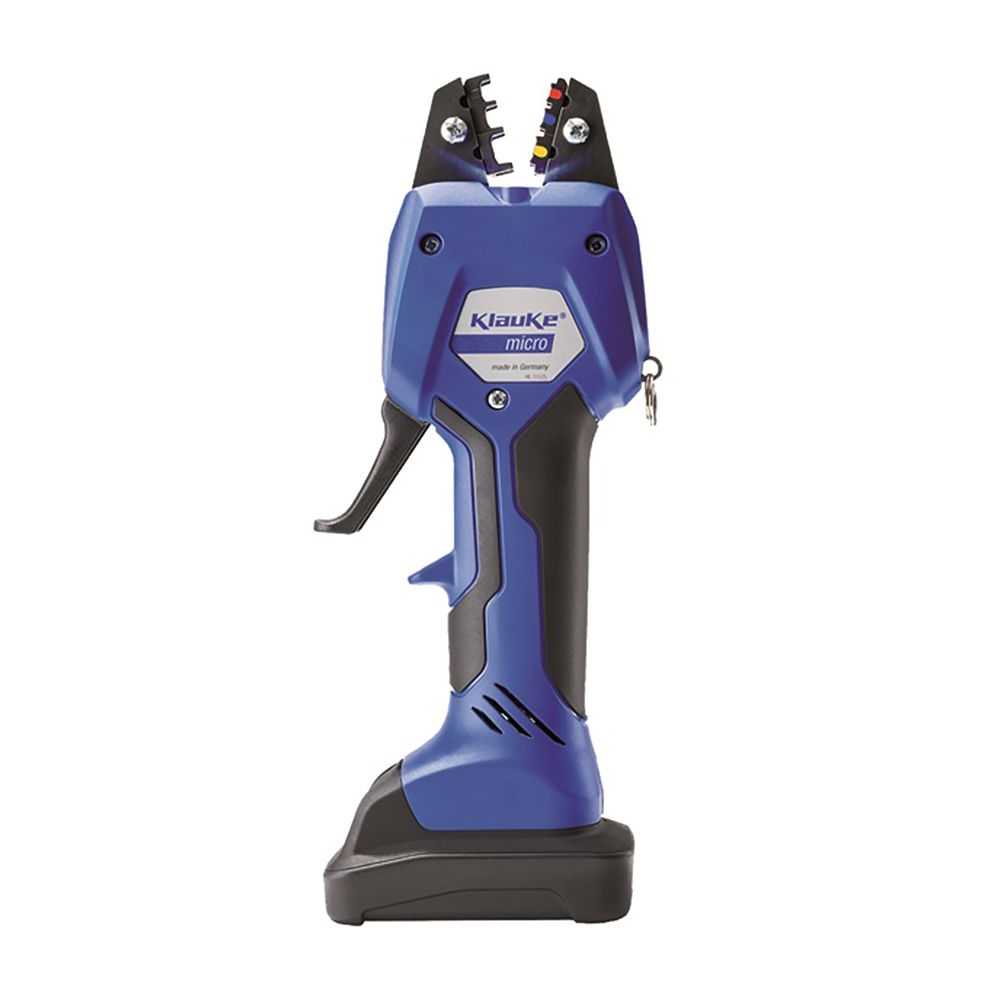

Klauke EK50ML 10.8V Electromechanical Crimping Tool, 50mm² is a product engineered with precision, delivering exceptional performance
with features like simple and safe onebutton operating concept for controlling all tool functions, electronic control with locking function monitors full closing of the dies and simple and safe automatic retraction when operation is complete.
Maintive brings to you 100% genuine Cordless Hydraulic Crimpers from Klauke at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order EK50ML 10.8V Electromechanical Crimping Tool, 50mm² today at the best price only from Maintive.
Features
Simple and safe: one-button operating concept for controlling all tool functions
Electronic control with locking function monitors full closing of the dies
Simple and safe: automatic retraction when operation is complete
Manual retract as required
Motor stall protection
Ergonomic 2C housing in the Klauke "In-line Design"
Fastening eye for use with balancer or as fall protection in field applications
Very low weight and high speed for maximum efficiency
Powerful drive technology for fatigue proof operations
Powerful 10.8V Li-Ion battery with charge status display
LED for work area illumination
Maintenance display via LED
Items Included
RAML1–10.8V / 1.5Ah, Li-Ion (16.2 Wh) battery
LGML1–Charger for 10.8V Li-Ion batteries, 230V
IS5071–Crimping die for insulated connector 0.5 - 6mm²
KKEK50ML–Hard plastic carrying case
Specifications
Crimping Force15kN
Crimping Capacity0.14-50mm²
Crimping Cycle<1.5s (based on connection material)
Number of crimps300 (At 10mm² Cu DIN 46234 / per battery charge, approx)
Voltage10.8V
Battery Capacity1.5Ah
Battery Charging Time40min.
Weight Including Battery0.96kg
Ambient Temperature-10 to 40°C
Warranty1 year manufacturer's warranty
Crimping Force15kN
Crimping Capacity0.14-50mm²
Crimping Cycle<1.5s (based on connection material)
Number of crimps300 (At 10mm² Cu DIN 46234 / per battery charge, approx)
Voltage10.8V
Battery Capacity1.5Ah
Battery Charging Time40min.
Weight Including Battery0.96kg
Ambient Temperature-10 to 40°C
Warranty1 year manufacturer's warranty
