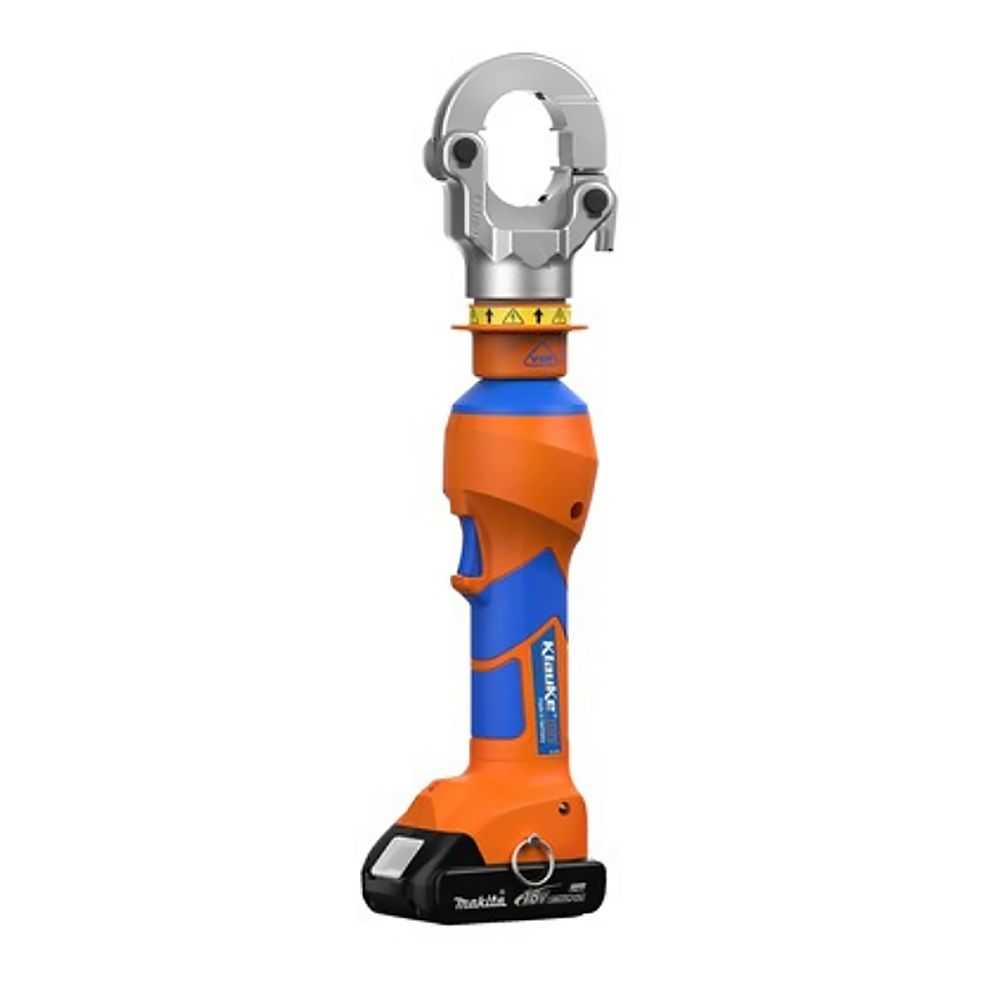

Klauke EKM6022ISM 1000V Insulated Cordless Hydraulic Crimping Tool, 300mm² with Copper Dies (6-300mm²) is a product engineered with precision, delivering exceptional performance
with features like insulated and VDE certified up to 1000V for increased safety when working on potentially live parts, large crimping range up to 300mm² and closed head with bolt interlock rotatable flip top style.
Maintive brings to you 100% genuine Cordless Hydraulic Crimpers from Klauke at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order EKM6022ISM 1000V Insulated Cordless Hydraulic Crimping Tool, 300mm² with Copper Dies (6-300mm²) today at the best price only from Maintive.
Features
Insulated and VDE certified up to 1000V for increased safety when working on potentially live parts
Large crimping range up to 300mm²
Closed head with bolt interlock, rotatable, flip top style
Quality assurance via visual and audible signals in case of error
Simple and safe: one-button operating concept for controlling all tool functions
Effortless working due to balanced centre of gravity
LED for work area illumination
Simple and safe: automatic retraction when operation is complete
Automatic retract stop (ARS) for positioning control in case of multiple crimps
Always ready-to-use thanks to battery charge and service display
All data can be easily read via Bluetooth
Items Included
RAL1–Makita battery 18V / 1.5Ah, Li-Ion
LGL1–Makita quick-charger for 18V Li-Ion batteries
L22 Crimping Dies Set, 13-Pieces (6, 10, 16, 25, 35, 50, 70, 95, 120, 150, 185, 240 and 300mm²)
KK50IS–Hard plastic carrying case
Specifications
Crimping Force60kN
Stroke17.5mm
Crimping Capacity6-300mm²
Crimping Cycle2s (for ARS) to 5s (depending on crimp cross-section)
Number of crimps150-200 (At 150mm² Cu DIN, approx)
Voltage18V
Battery Capacity1.5Ah
Battery Charging Time15min.
Weight Including Battery3.0kg
Ambient Temperature-10 to 40°C
Warranty1 year manufacturer's warranty
Crimping Force60kN
Stroke17.5mm
Crimping Capacity6-300mm²
Crimping Cycle2s (for ARS) to 5s (depending on crimp cross-section)
Number of crimps150-200 (At 150mm² Cu DIN, approx)
Voltage18V
Battery Capacity1.5Ah
Battery Charging Time15min.
Weight Including Battery3.0kg
Ambient Temperature-10 to 40°C
Warranty1 year manufacturer's warranty
