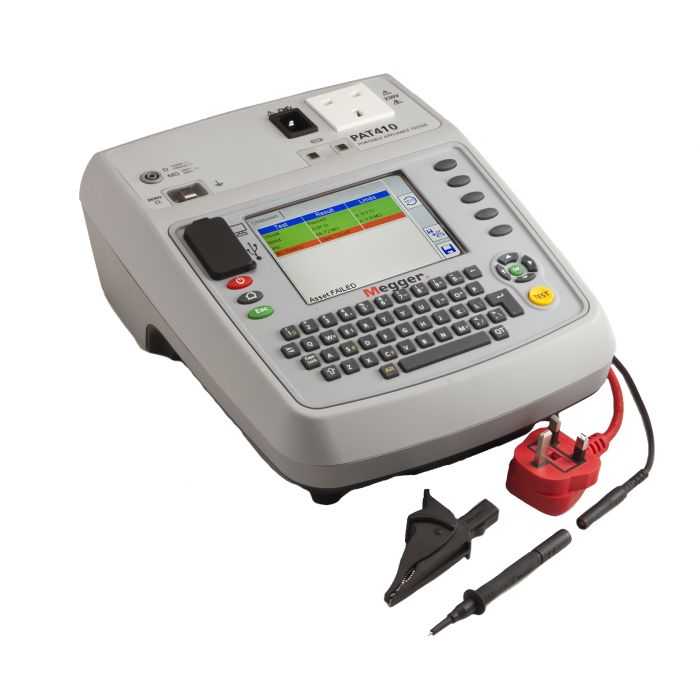

Megger 1000-745 PAT410-UK Portable Appliance Testers, 200 mA Bond Test with High Duty Cycle for Repetitive Testing is a product engineered with precision, delivering exceptional performance
with features like vast onboard memory to keep you the job longer, continuous operation no need to stop and wait for the tester to cool down and instant restart as you move from room to room testing.
Maintive brings to you 100% genuine Portable Appliance Testers from Megger at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order 1000-745 PAT410-UK Portable Appliance Testers, 200 mA Bond Test with High Duty Cycle for Repetitive Testing today at the best price only from Maintive.
Features
Vast on-board memory to keep you the job longer
Continuous operation, no need to stop and wait for the tester to cool down
Instant re-start as you move from room to room testing
Soft keys to speed you through the testing process
Full PAT testing including RCD testing
Most productive tester in its class

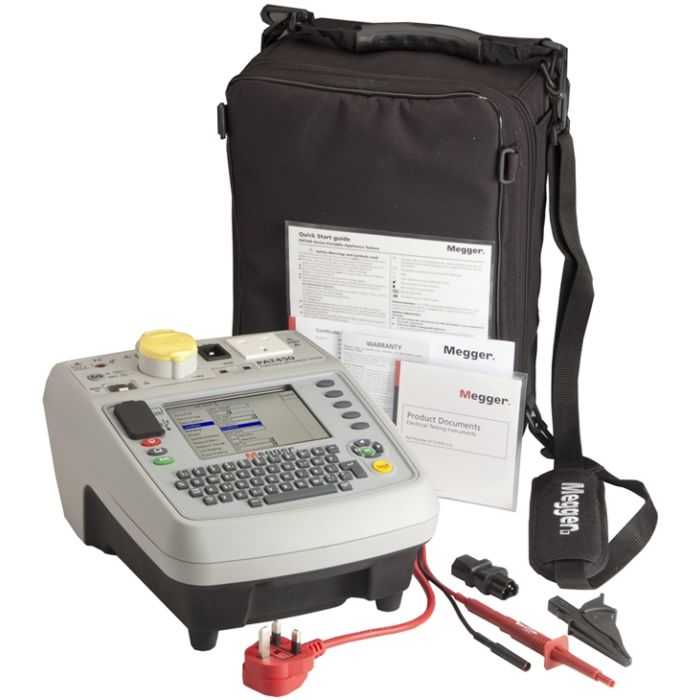

Items Included
User Guide CD
Extension lead adaptor
Quick-start guide
Carry case and document wallet
IEC C6 to C13 plug adaptor
Bond/continuity test lead with croc-clip and probe
High Voltage probe(PAT410 only)
Specifications
Continuity Test Voltage 4.0 V DC -0% +10%
Continuity Test Current 200 mA -0% +10% ±5 mA
Continuity Test Resolution 10 mΩ (1 to 19.99 Ω)
Continuity Test Display Range 0 to 19.99 Ω
Insulation Test Voltage 250 V DC –0%/+25% open circuit 500 V DC –0%/+25% open circuit
Insulation Test Display Range 0 to 99.99 MΩ
Substitute Leakage Test Voltage 40 V AC ±10%
Substitute Leakage Test Display Range 0 to 19.99 mA
Weight 2.7kg
Dimensions 210x390x280mm
Warranty1 Year
Continuity Test Voltage 4.0 V DC -0% +10%
Continuity Test Current 200 mA -0% +10% ±5 mA
Continuity Test Resolution 10 mΩ (1 to 19.99 Ω)
Continuity Test Display Range 0 to 19.99 Ω
Insulation Test Voltage 250 V DC –0%/+25% open circuit 500 V DC –0%/+25% open circuit
Insulation Test Display Range 0 to 99.99 MΩ
Substitute Leakage Test Voltage 40 V AC ±10%
Substitute Leakage Test Display Range 0 to 19.99 mA
Weight 2.7kg
Dimensions 210x390x280mm
Warranty1 Year
