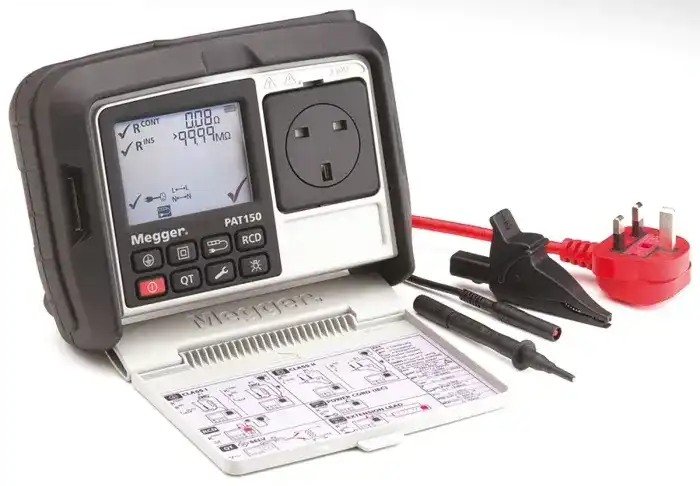

Megger 1003-428 PAT150R-UK Rechargeable Battery Powered Portable Appliance Tester is a product engineered with precision, delivering exceptional performance
with features like simple operational interface, storage of completed forms with retrieval by certificate type or client and pDF export facility for safe and simple distribution.
Maintive brings to you 100% genuine Portable Appliance Testers from Megger at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order 1003-428 PAT150R-UK Rechargeable Battery Powered Portable Appliance Tester today at the best price only from Maintive.
Features
Simple operational interface
Storage of completed forms with retrieval by certificate type or client
PDF export facility for safe and simple distribution
Multi-page Schedules for testing larger installations
Drop down fields to speed up certificate completion

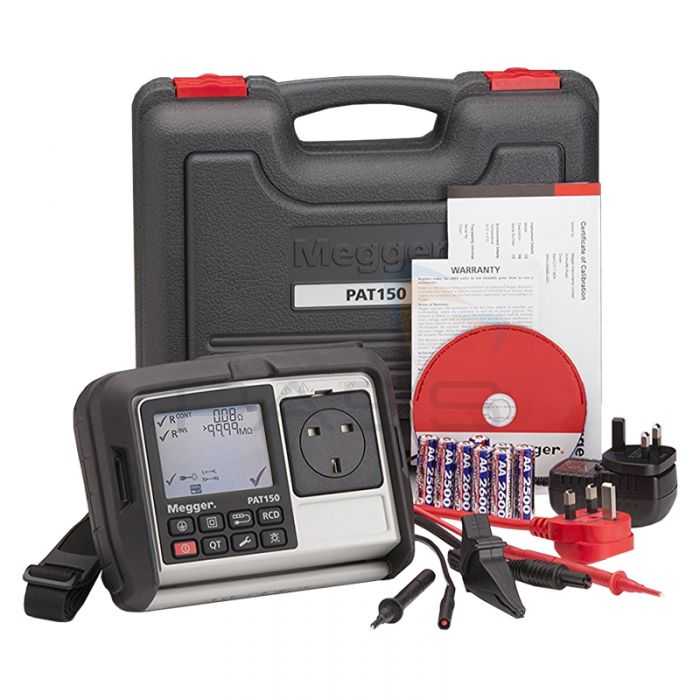

Items Included
2 x 4mm plug lead probe + croc clip
Extension lead adaptor
AC charger adaptor
Mains supply cord
carry case.
Specifications
Continuity Test Voltage +4V DC
–0 % /+10 % (open circuit)
Continuity Test CurrentBi-directional +200mA -0% + 50mA (into 2Ω load)
Continuity Test Accuracy Resistance
Continuity Test Resolution 10 mΩ
Continuity Test Display Range 0.01 to 19.99Ω
Insulation Test 250V DC –0 % /+25 % open circuit, 500V DC –0 % /+25 % open circuit, ≥ 500V 0% DC across 0.5 MΩ load
Insulation Test Accuracy ±3% ±10 digits (0 to 19.99 MΩ)
Insulation Test Display Range 0.10 MΩ to 99.99 MΩ
Substitute Leakage Test Voltage < 50 V AC
Substitute Leakage Test Display Range 0.10 to 19.99mA
Portable RCD Display Range 0 to 200ms (1 x I) 0 to 40ms (5 x I)
SELV Test Voltage 0 to 300 V AC
Battery Type Supply voltage 12 V DC (Alkaline AA LR6), 9.6 V DC (NiMH AA LR6)
Weight 2975g
Dimensions 456mm x 178mm x 89mm
Warranty1 Year
Continuity Test Voltage +4V DC
–0 % /+10 % (open circuit)
Continuity Test CurrentBi-directional +200mA -0% + 50mA (into 2Ω load)
Continuity Test Accuracy Resistance
Continuity Test Resolution 10 mΩ
Continuity Test Display Range 0.01 to 19.99Ω
Insulation Test 250V DC –0 % /+25 % open circuit, 500V DC –0 % /+25 % open circuit, ≥ 500V 0% DC across 0.5 MΩ load
Insulation Test Accuracy ±3% ±10 digits (0 to 19.99 MΩ)
Insulation Test Display Range 0.10 MΩ to 99.99 MΩ
Substitute Leakage Test Voltage < 50 V AC
Substitute Leakage Test Display Range 0.10 to 19.99mA
Portable RCD Display Range 0 to 200ms (1 x I) 0 to 40ms (5 x I)
SELV Test Voltage 0 to 300 V AC
Battery Type Supply voltage 12 V DC (Alkaline AA LR6), 9.6 V DC (NiMH AA LR6)
Weight 2975g
Dimensions 456mm x 178mm x 89mm
Warranty1 Year
