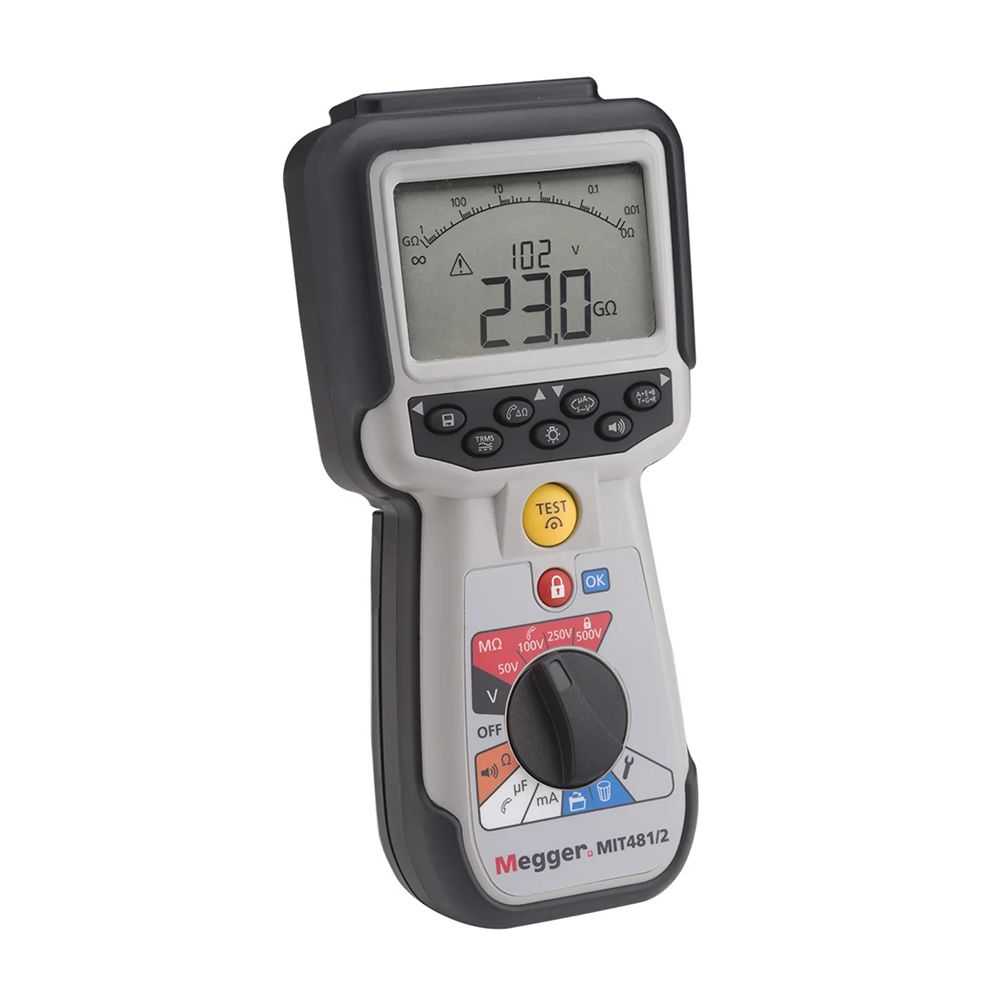

Megger 1004-741 MIT481/2 - Analog Digital Insulation Continuity Tester For Telecommunication and Cable Testing is a product engineered with precision, delivering exceptional performance
with features like insulation testing up to 500 V and 100 GΩ range in a hand held instrument, 3 wire connection for A B and E Tip Ring and Earth connection and gated access to 500 V to prevent accidental damage.
Maintive brings to you 100% genuine Insulation Testers from Megger at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order 1004-741 MIT481/2 - Analog Digital Insulation Continuity Tester For Telecommunication and Cable Testing today at the best price only from Maintive.
Features
Insulation testing up to 500 V and 100 GΩ range in a hand held instrument
3 wire connection for A, B and E (Tip, Ring and Earth) connection
Gated access to 500 V to prevent accidental damage
Rechargeable options for mains and car charging
Single range, faster continuity testing from 0.01Ω to 1 MΩ
Differential measurement capability
Stabilized insulation test voltage
600 V Trms AC and DC voltage measurement
CAT IV 600 V and IP 54
Items Included
Hard carry case
Red/Green/Black test lead set
6 AA (LR6) batteries fitted
Warranty card
Factory (non-NIST) Calibration Certificate
Owners CD manual
Quick start guide
SP5 remote switched probe
Specifications
IR Test Voltage 50V, 100V, 250V, 500V
Maximum Insulation Resistance100 G Ohms
Automated Test ResultsDielectric Absorption Ratio, Dielectric Discharge, Leakage Current, Other, Step Voltage
Power SourceBattery
Minimum Insulation Resistance0.01 Ohms (0.00000000001 G Ohms)
Variable Incremental VoltageYes
Display (Megohmmeter)Digital
Continuity TestYes
Live Circuit Voltage DetectionYes
TimerYes
CAT RatingIV
CAT Voltage600 V
Warranty3 Years
IR Test Voltage 50V, 100V, 250V, 500V
Maximum Insulation Resistance100 G Ohms
Automated Test ResultsDielectric Absorption Ratio, Dielectric Discharge, Leakage Current, Other, Step Voltage
Power SourceBattery
Minimum Insulation Resistance0.01 Ohms (0.00000000001 G Ohms)
Variable Incremental VoltageYes
Display (Megohmmeter)Digital
Continuity TestYes
Live Circuit Voltage DetectionYes
TimerYes
CAT RatingIV
CAT Voltage600 V
Warranty3 Years
