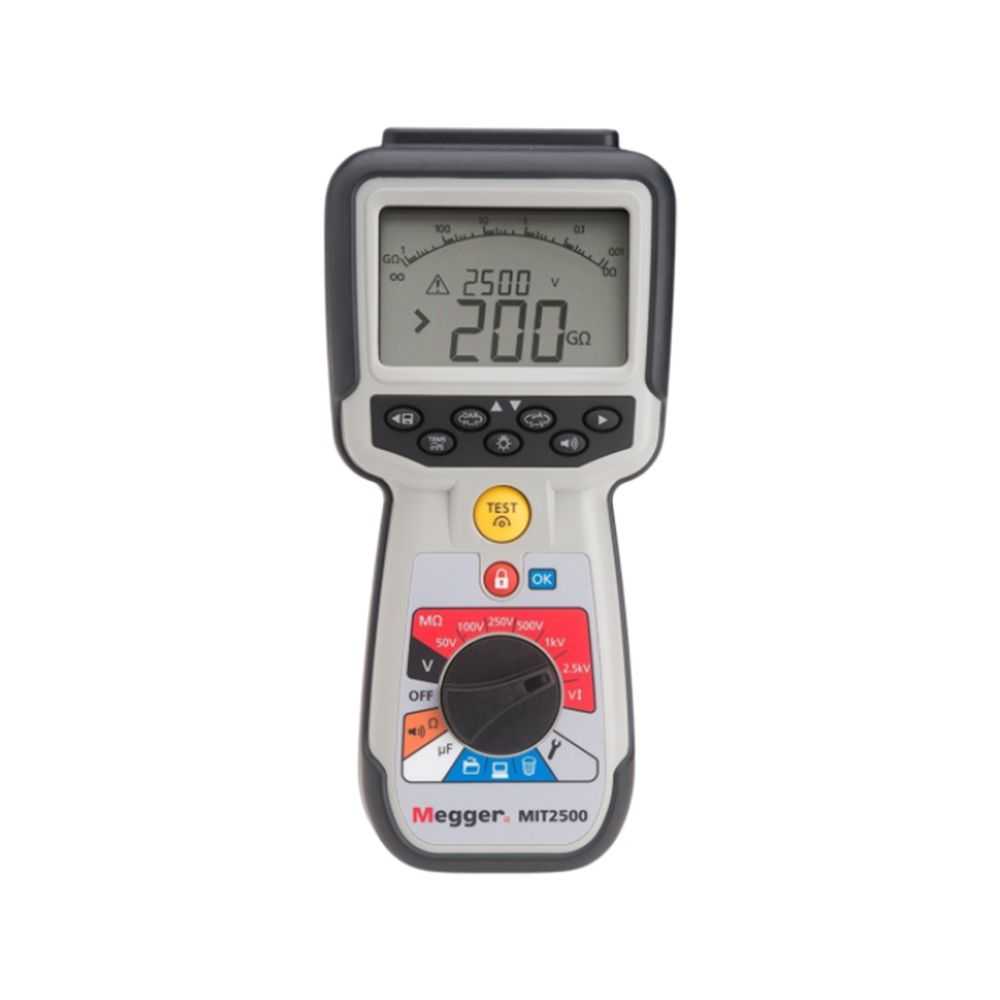

Megger 1004-745 MIT2500 2.5kV High voltage insulation and continuity tester is a product engineered with precision, delivering exceptional performance
with features like insulation testing up to 25 kV and 200 GO range in a handheld instrument, guard terminal for high resistance accuracy and adjustable insulation test voltage from 50 V to 2500 V.
Maintive brings to you 100% genuine Insulation Testers from Megger at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order 1004-745 MIT2500 2.5kV High voltage insulation and continuity tester today at the best price only from Maintive.
Features
Insulation testing up to 2.5 kV and 200 GO range in a handheld instrument
Guard terminal for high resistance accuracy
Adjustable insulation test voltage from 50 V to 2500 V
Stabilised insulation test voltage
Rechargeable options for mains and car charging
Single range, faster continuity testing from 0.01 O to 1 MO
Polarisation Index (PI) and Dielectric Absorption Ratio (DAR)
CAT IV 600 V applications
Items Included
2.5 kV rated test leads fitted with medium size croc clips (1 x Red, 1 x Black, 1 x Blue)
1 kV rated standard test leads with probes and clips (1 x Red, 1 x Black)
Specifications
Test Voltages 50V, 100V, 250V, 500V, 1000V, 2500V
Variable Test Voltage 50V to 999V (1V steps), 1000V to 2500V (10V steps)
Insulation Resistance Range Up to 200 GO
Continuity Test Range 0.01 O to 1 MO
Continuity Test Current 200 mA or 20 mA
Voltage Measurement Range (AC/DC) 0 to 600 V TRMS
Capacitance Measurement Range 0.1 nF to 10 µF
Frequency Measurement Range 15 Hz to 400 Hz
Data Storage >1000 test results
Data Download Bluetooth® Class II
Guard Terminal Yes
Input Impedance 250 kO
Display Analog arc with dual digital readout
Power Supply 6 x 1.5V AA batteries or NiMH rechargeable batteries
Battery Life 3000 insulation tests at 1000V with 5 sec ON / 55 sec OFF duty cycle
Dimensions 228mm x 108mm x 63mm
Weight 815g (1 lb 13 oz)
Safety Rating CAT IV 600V
Ingress Protection IP54
Operating Temperature -10°C to +55°C
Storage Temperature -25°C to +70°C
Altitude Up to 2000m
Fuse 2 x 500 mA (FF) 1000V, 32 x 6mm ceramic fuse
Warranty3 Years
Test Voltages 50V, 100V, 250V, 500V, 1000V, 2500V
Variable Test Voltage 50V to 999V (1V steps), 1000V to 2500V (10V steps)
Insulation Resistance Range Up to 200 GO
Continuity Test Range 0.01 O to 1 MO
Continuity Test Current 200 mA or 20 mA
Voltage Measurement Range (AC/DC) 0 to 600 V TRMS
Capacitance Measurement Range 0.1 nF to 10 µF
Frequency Measurement Range 15 Hz to 400 Hz
Data Storage >1000 test results
Data Download Bluetooth® Class II
Guard Terminal Yes
Input Impedance 250 kO
Display Analog arc with dual digital readout
Power Supply 6 x 1.5V AA batteries or NiMH rechargeable batteries
Battery Life 3000 insulation tests at 1000V with 5 sec ON / 55 sec OFF duty cycle
Dimensions 228mm x 108mm x 63mm
Weight 815g (1 lb 13 oz)
Safety Rating CAT IV 600V
Ingress Protection IP54
Operating Temperature -10°C to +55°C
Storage Temperature -25°C to +70°C
Altitude Up to 2000m
Fuse 2 x 500 mA (FF) 1000V, 32 x 6mm ceramic fuse
Warranty3 Years
