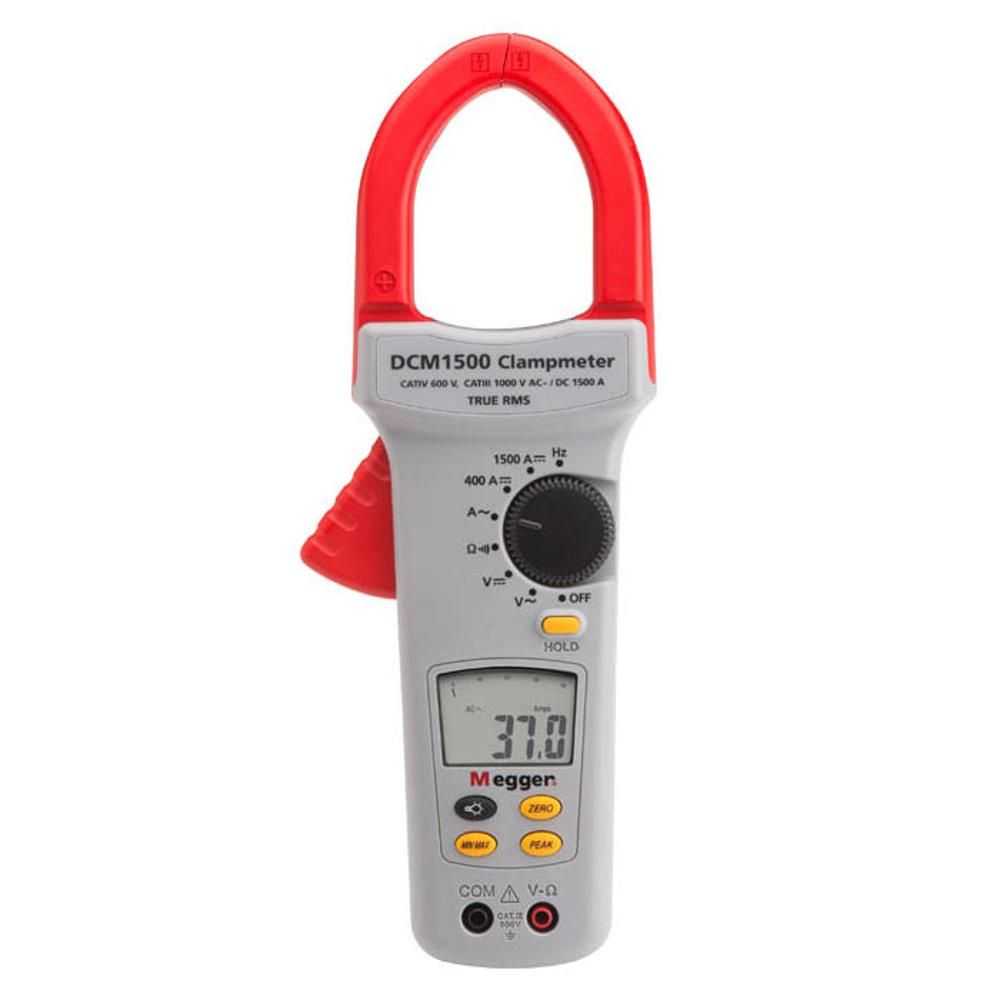

Megger 1005-572 DCM1500 Power Clamp Meter, 1500A, 51mm Jaw, 750V, 400Ω, CAT IV 600V is a product engineered with precision, delivering exceptional performance
with features like dC and AC current up to 1500 A, true RMS measurement for greater accuracy and large jaw size safely assists with uninsulated conductor measurements.
Maintive brings to you 100% genuine Clamp Meters from Megger at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order 1005-572 DCM1500 Power Clamp Meter, 1500A, 51mm Jaw, 750V, 400Ω, CAT IV 600V today at the best price only from Maintive.
Features
DC and AC current up to 1500 A
True RMS measurement for greater accuracy
Large jaw size safely assists with uninsulated conductor measurements
750 VAC and 1000 VDC
Resistance, continuity, and frequency
Peak, min/max, and data-hold functions
Items Included
DCM 1500 Clamp Meter
Battery
Pouch
Testleads Red and Black
Specifications
AC Voltage750V
AC Current1500A
Jaw Size40mm
DC Voltage1000V
DC Current1000A
Resistance100kΩ
Capacitance4 µF – 4000 µF
Safety RatingCAT IV 600V
Battery1 x PP3 MN1604 6LR61 alkaline cell
Dimensions105 x 275 x 48 mm
Weight524 g (with batteries)
Warranty1 year
AC Voltage750V
AC Current1500A
Jaw Size40mm
DC Voltage1000V
DC Current1000A
Resistance100kΩ
Capacitance4 µF – 4000 µF
Safety RatingCAT IV 600V
Battery1 x PP3 MN1604 6LR61 alkaline cell
Dimensions105 x 275 x 48 mm
Weight524 g (with batteries)
Warranty1 year
