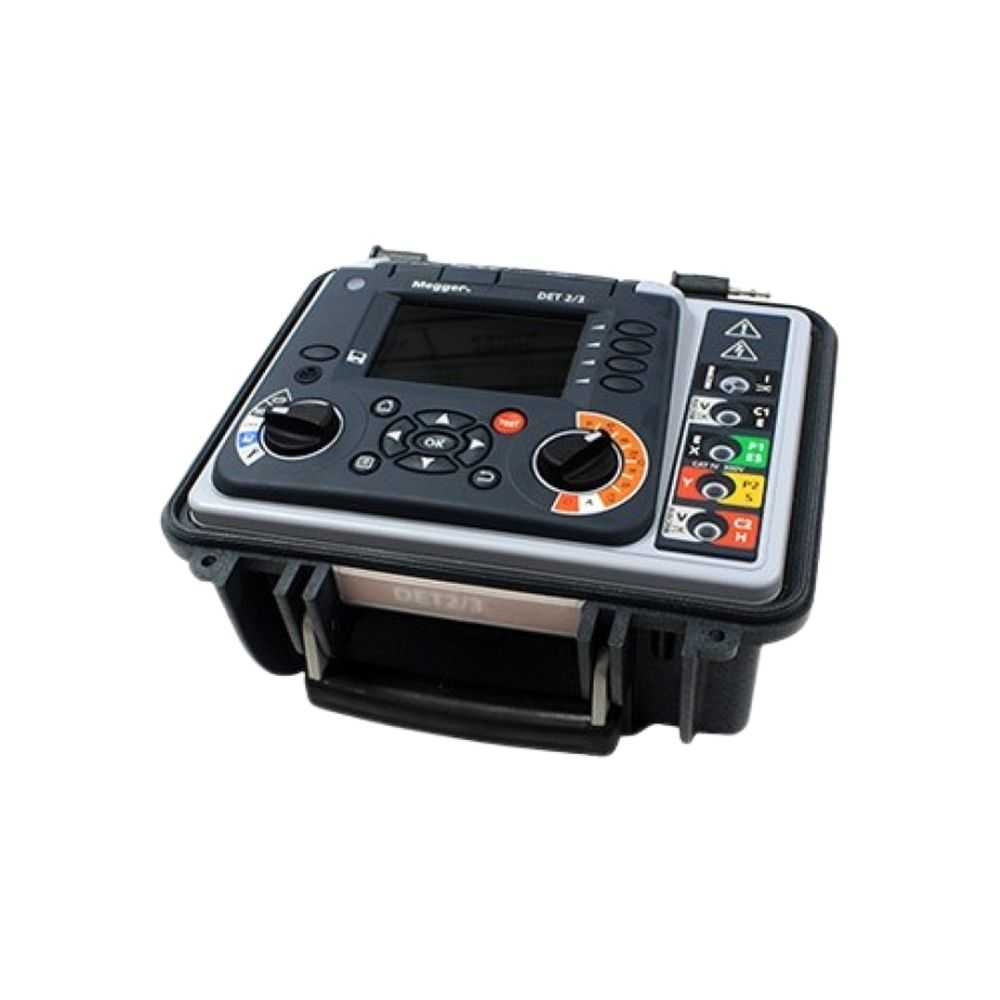

Megger 1008-947 DET2/3 Earth Tester, 0.001 Ohm to 20 kOhm is a product engineered with precision, delivering exceptional performance
with features like high resolution of 1 mΩ ideal for large earth systems, versatile tests modes and high accuracy for earthground electrode grid and soil resistivity tests.
Maintive brings to you 100% genuine Earth Ground Testers from Megger at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order 1008-947 DET2/3 Earth Tester, 0.001 Ohm to 20 kOhm today at the best price only from Maintive.
Features
High resolution of 1 mΩ, ideal for large earth systems
Versatile tests modes
High accuracy for earth/ground electrode grid and soil resistivity tests
Rechargeable battery power that can last all day with a fast re-charge (up to 10 hours)
Robust instrument with IP65 protection
Automatic test frequency selection, with filters and high current features
Diagnostic trace display
Data storage
Large colour display that shows numeric and graphical results
Items Included
MCC1010 and MVC1010
Cable reels with spike
Continuity test cables and clips
Accessories bag
Specifications
Resistance Range0.001 Ω to 20.00 kΩ auto range
DisplayFour digit display
Resistance Accuracy at 23 °C±0.5% of reading ±2 digits
3P±10 mΩ
2P±20 mΩ
Resistance Test current50 mA max
Continuity0.01 Ω to 1 kΩ (3 digits)
Continuity Test Current12 V, 205 mA
Storage temperature-20 to 60 °C
Measurement ratingCAT IV 300 V
Power supplyInternal Li-ion battery or external 12-18 V, 65 W, DC supply
Battery lifeUp to 10 hrs use
Warranty2 Years
Resistance Range0.001 Ω to 20.00 kΩ auto range
DisplayFour digit display
Resistance Accuracy at 23 °C±0.5% of reading ±2 digits
3P±10 mΩ
2P±20 mΩ
Resistance Test current50 mA max
Continuity0.01 Ω to 1 kΩ (3 digits)
Continuity Test Current12 V, 205 mA
Storage temperature-20 to 60 °C
Measurement ratingCAT IV 300 V
Power supplyInternal Li-ion battery or external 12-18 V, 65 W, DC supply
Battery lifeUp to 10 hrs use
Warranty2 Years
