PCE Instruments TDS 200 M Ultrasonic Flow Meter - includes M Sensor, for 57-720mm Pipes is a product engineered with precision, delivering exceptional performance
with features like measuring range ±32 ms, uSBC interface for data transfer and reproducibility ±05 of measured value.
Maintive brings to you 100% genuine Ultrasonic Flow Meters from PCE Instruments at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order TDS 200 M Ultrasonic Flow Meter - includes M Sensor, for 57-720mm Pipes today at the best price only from Maintive.
Features
Measuring range ±32 m/s
USB-C interface for data transfer
Reproducibility ±0.5 % of measured value
Data memory for 10 million measuring points
Individually adjustable alarm limits
Items Included

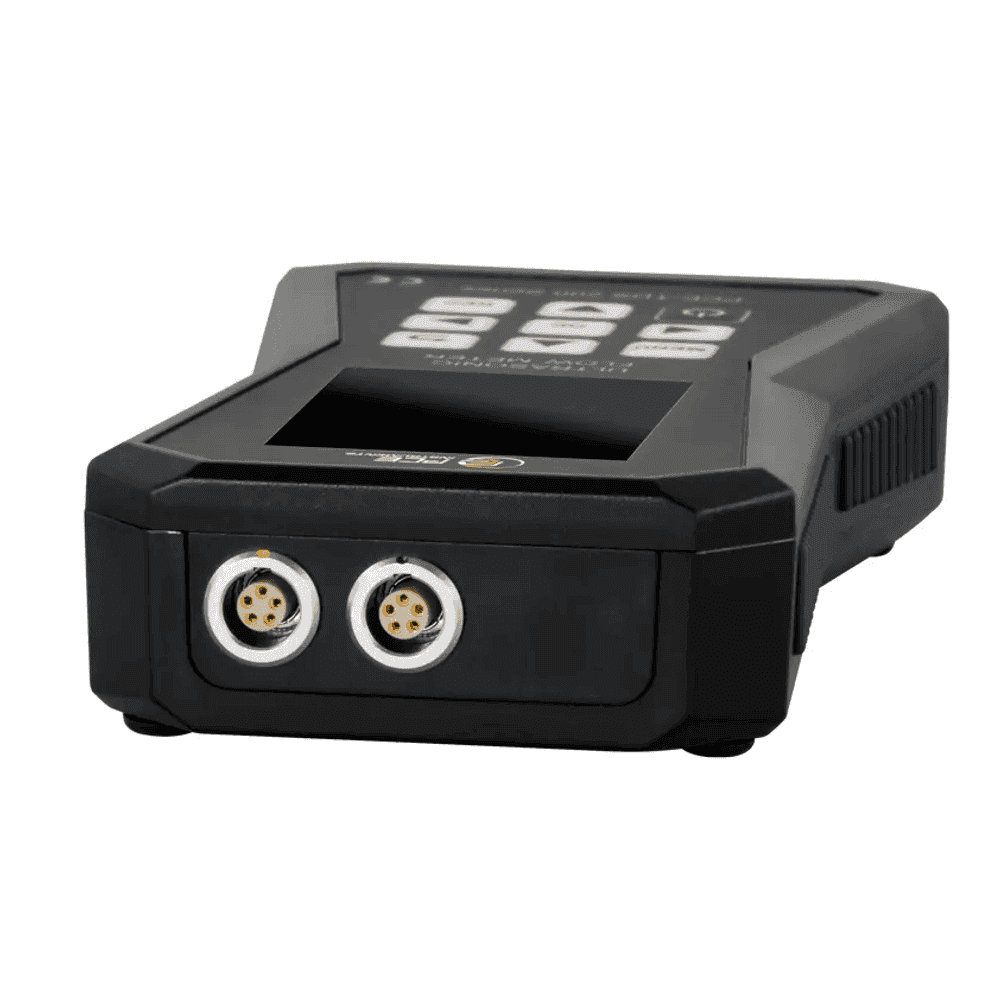

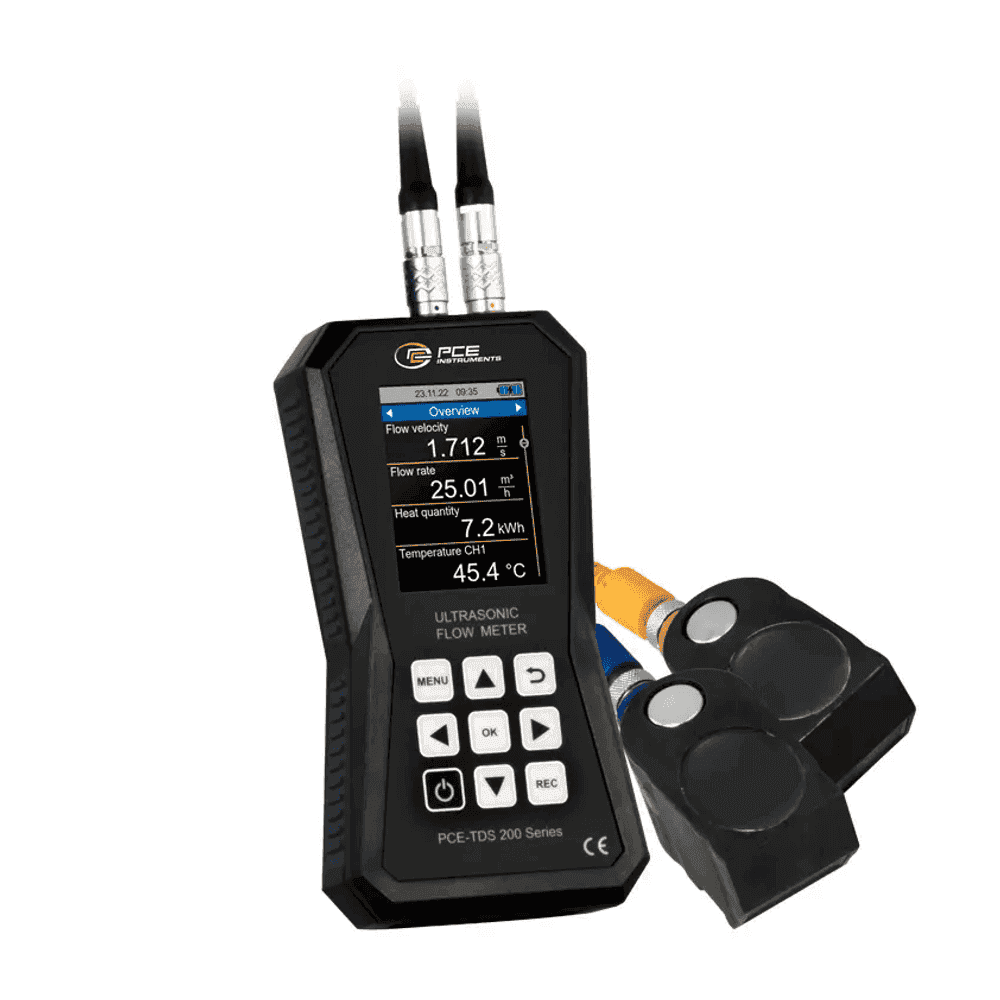

1 x Ultrasonic flow meter PCE-TDS 200 M

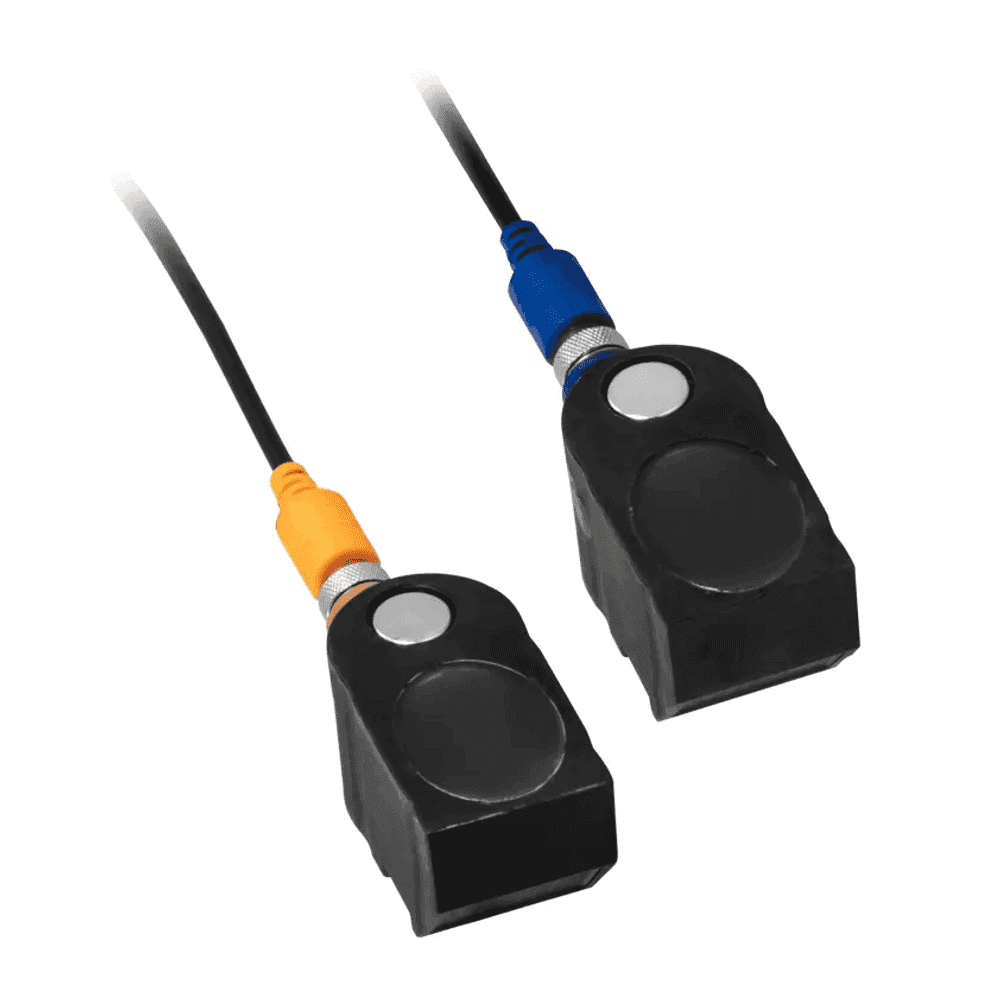

1 x flow sensor PCE-TDS 200 M SENSOR (pair)
2 x 5 m connection cable
2 x detachable cable ties
1 x power supply unit
1 x USB-C cable
1 x ultrasonic contact gel
1 x PCE measuring tape

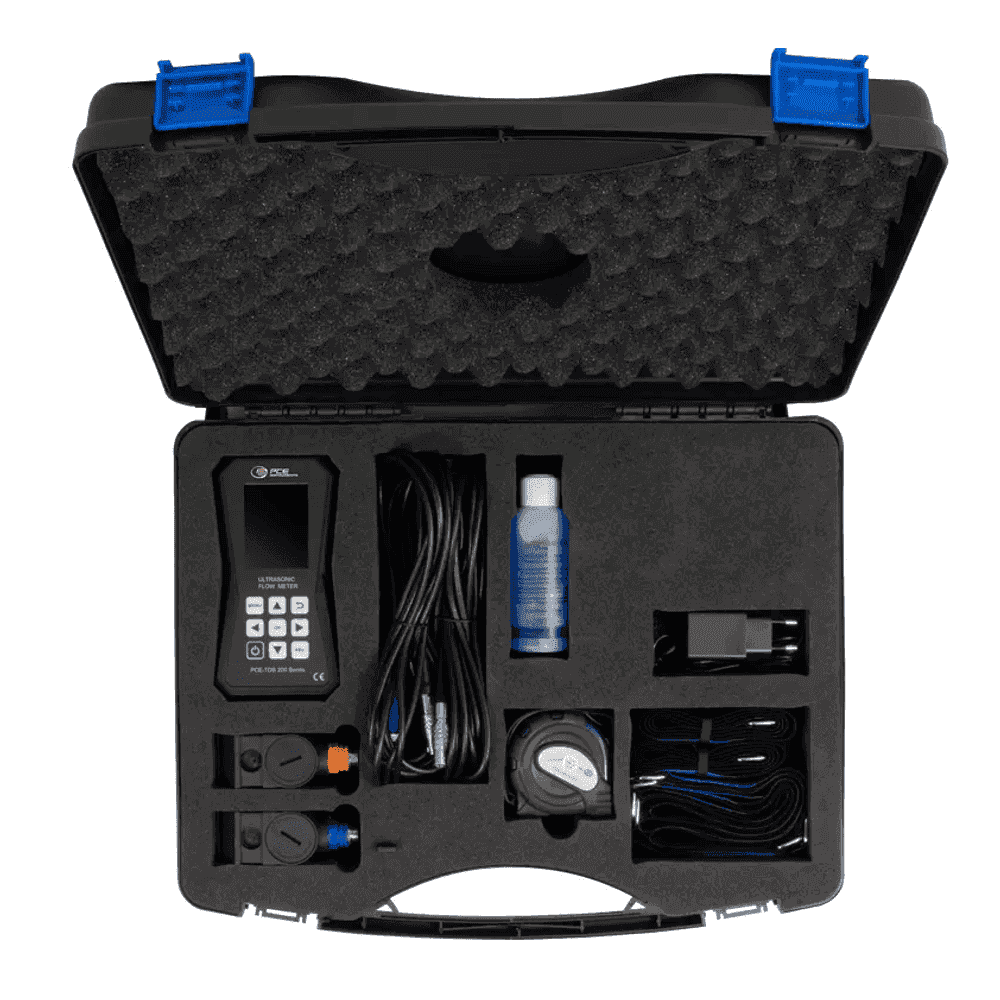

1 x plastic case
1 x instruction manual
Specifications
Flow Measurement±32 m/s
Accuracy0.001 m/s
Reproducibility±0.5% of measured value
Display2.8" LCD
Protection classIP52
Dimensions165 x 85 x 32 mm
Weight255 g
M Sensor, RangeDN 50-700 / 57-720 mm
Sensor Temperature Resistance-30 to 160 °C
Measurement parametersflow velocity, volume flow and volume
Warranty1 year manufacturer's warranty
Flow Measurement±32 m/s
Accuracy0.001 m/s
Reproducibility±0.5% of measured value
Display2.8" LCD
Protection classIP52
Dimensions165 x 85 x 32 mm
Weight255 g
M Sensor, RangeDN 50-700 / 57-720 mm
Sensor Temperature Resistance-30 to 160 °C
Measurement parametersflow velocity, volume flow and volume
