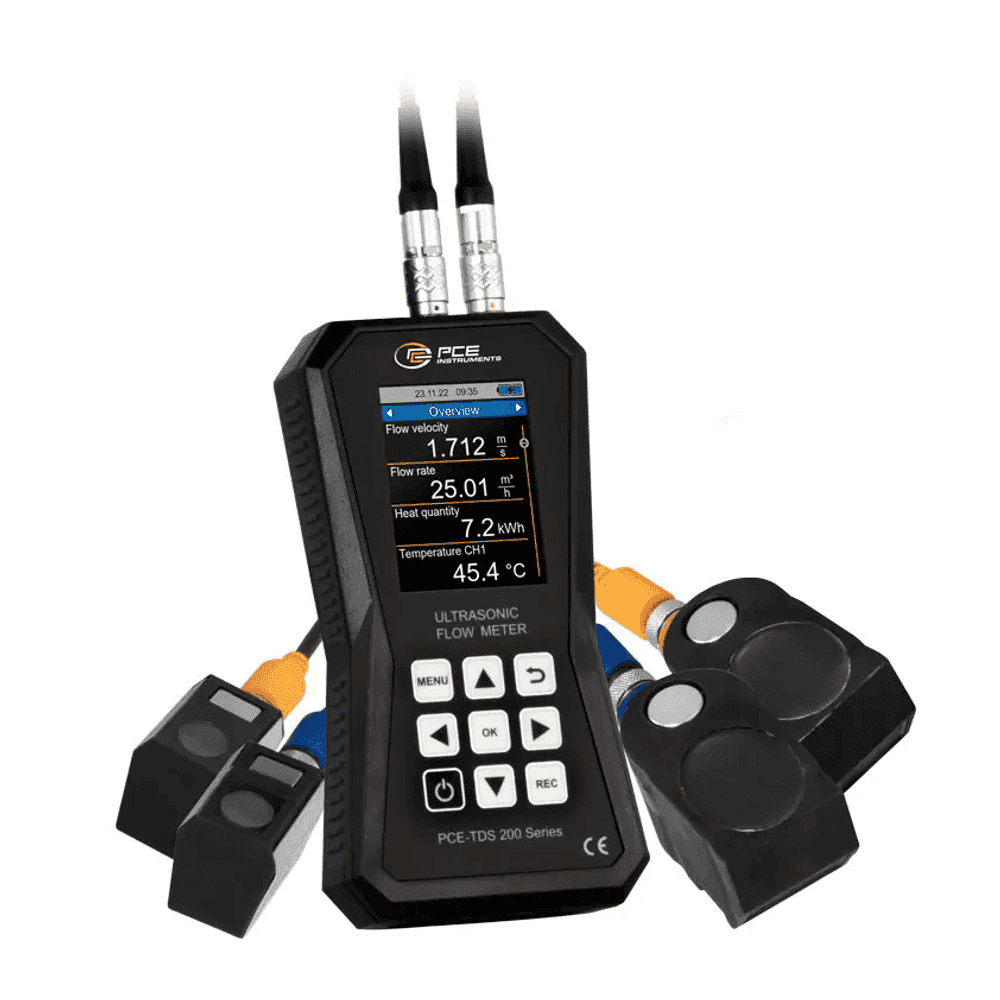

Ultrasonic Flow Meter - includes S, M Sensors, for 20-108mm/57-720mm Pipes
Model # TDS 200 SMAED 10,788.00Incl. of VAT
Limited StockBuy with 0% installments and pay AED for months with select banks. Learn more
Use Coupon Code: WELCOME25
Key Features
- Brand: PCE Instruments
- Model: TDS 200 SM
- Flow Measurement: ±32 m/s
- Accuracy: 0.001 m/s
- Reproducibility: ±0.5% of measured value
- Display: 2.8" LCD
- Protection class: IP52
- Warranty: 1 year manufacturer's warranty
This item is eligible for return.
FREE delivery in the UAEDelivery
Saturday, Nov 9
FREE
Click & Collect
on Saturday, 9:00 AM - 4:30 PM
Want it on Saturday?
Select Click & Collect on checkout within the next 6 Hours, 44 minutes.
Select Click & Collect on checkout within the next 6 Hours, 44 minutes.
COD
You may also like...
Product Information
PCE Instruments TDS 200 SM Ultrasonic Flow Meter - includes S, M Sensors, for 20-108mm/57-720mm Pipes is a product engineered with precision, delivering exceptional performance
with features like measuring range ±32 ms, uSBC interface for data transfer and reproducibility ±05 of measured value.
Maintive brings to you 100% genuine Ultrasonic Flow Meters from PCE Instruments at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order TDS 200 SM Ultrasonic Flow Meter - includes S, M Sensors, for 20-108mm/57-720mm Pipes today at the best price only from Maintive.Features
- Measuring range ±32 m/s
- USB-C interface for data transfer
- Reproducibility ±0.5 % of measured value
- Data memory for 10 million measuring points
- Individually adjustable alarm limits

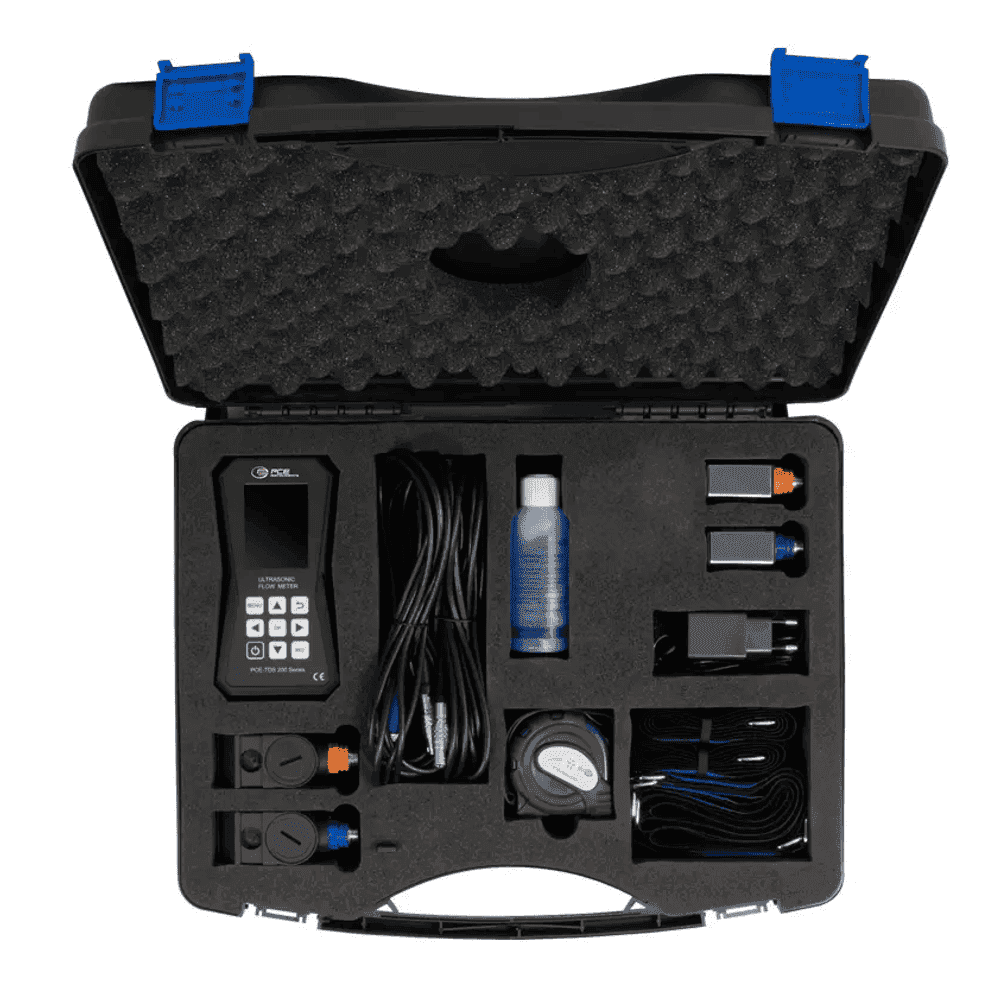

Items Included
- 1 x Ultrasonic flow meter PCE-TDS 200 SM

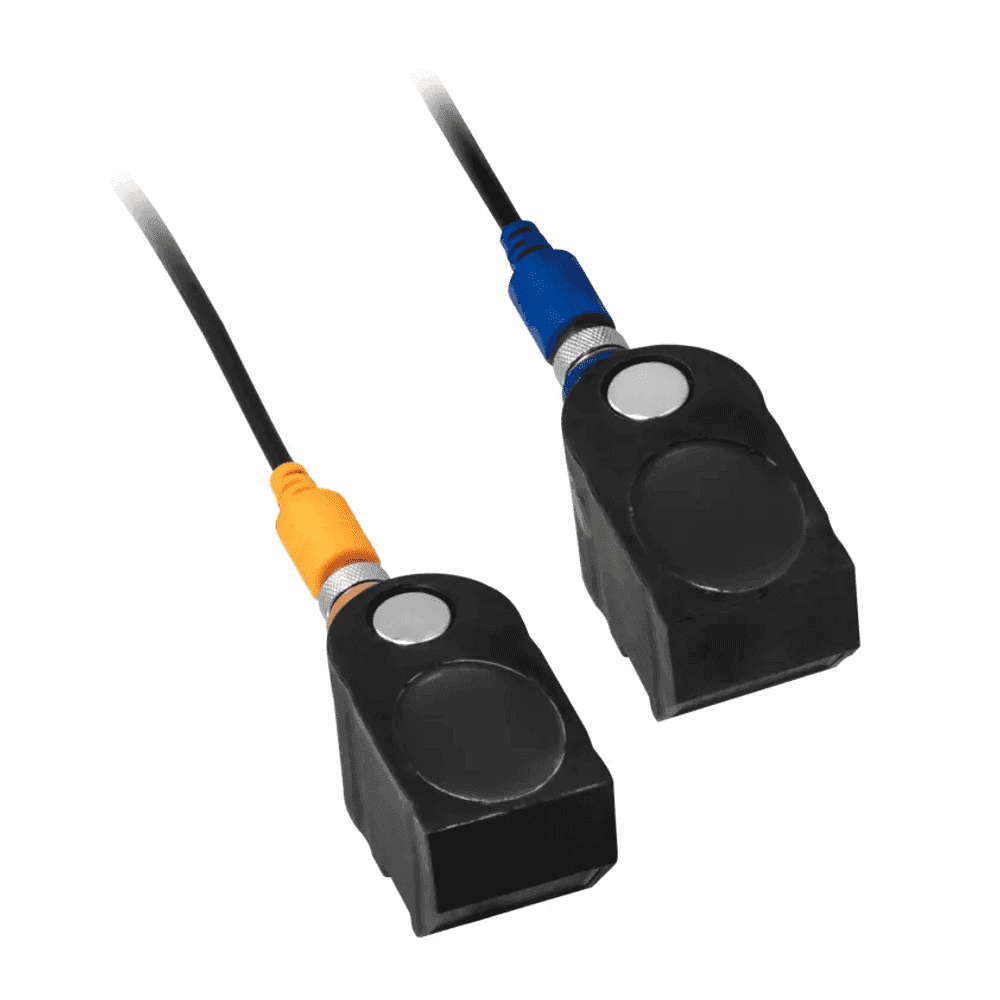

- 1 x Flow sensors PCE-TDS 200 S SENSOR (pair)

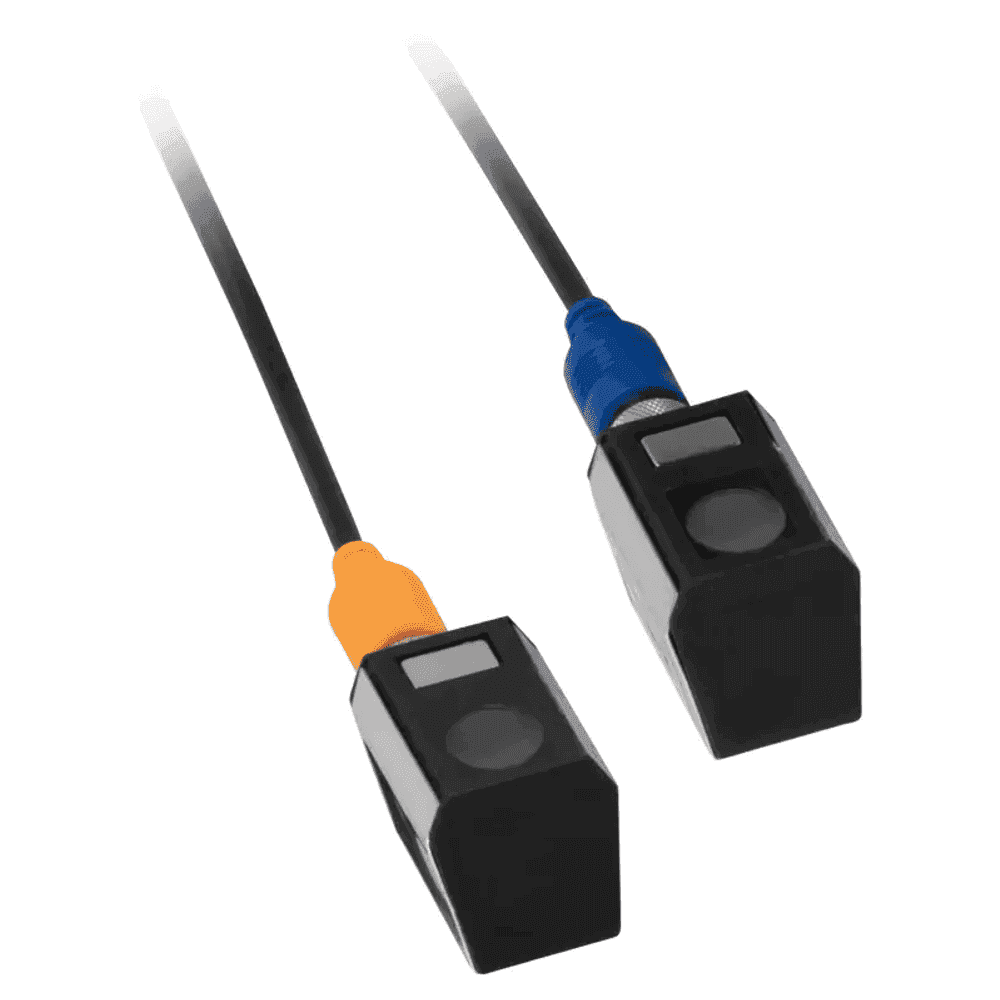

- 1 x flow sensors PCE-TDS 200 M SENSOR (pair)
- 2 x 5 m connection cable
- 2 x detachable cable ties
- 1 x power supply unit
- 1 x USB-C cable
- 1 x ultrasonic contact gel
- 1 x PCE measuring tape
- 1 x plastic case
- 1 x instruction manual
Specifications
- Flow Measurement±32 m/s
- Accuracy0.001 m/s
- Reproducibility±0.5% of measured value
- Display2.8" LCD
- Protection classIP52
- Dimensions165 x 85 x 32 mm
- Weight255 g
- S Sensor, RangeDN 15-100 / 20-108 mm
- M Sensor, RangeDN 50-700 / 57-720 mm
- Sensor Temperature Resistance-30 to 160 °C
- Measurement parametersflow velocity, volume flow and volume
- Warranty1 year manufacturer's warranty
- Flow Measurement±32 m/s
- Accuracy0.001 m/s
- Reproducibility±0.5% of measured value
- Display2.8" LCD
- Protection classIP52
- Dimensions165 x 85 x 32 mm
- Weight255 g
- S Sensor, RangeDN 15-100 / 20-108 mm
- M Sensor, RangeDN 50-700 / 57-720 mm
- Sensor Temperature Resistance-30 to 160 °C
- Measurement parametersflow velocity, volume flow and volume
- Warranty1 year manufacturer's warranty
