Uni-T UT208B True RMS Digital Clamp Meter 1000A is a product engineered with precision, delivering exceptional performance
with features like uT200 series are 6000count digital clamp meters with auto range large LCD true RMS autoscale memory and NCV functions, they conform to CAT III 1000VCAT IV 600V safety rating andcertified by CEETL The UT206B UT207B and UT208B come with LoZ mode for eliminating ‘ghost ’voltage LPF ACV function for measuring INV and VFD voltage and inrush current modefor capturing transient current and the UT206B and UT208B also feature highprecision temperature measurement with 01 °C resolution and can be equipped with a flexible current probe to extend the AC current measurement range to 3000A.
Maintive brings to you 100% genuine Clamp Meters from Uni-T at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order UT208B True RMS Digital Clamp Meter 1000A today at the best price only from Maintive.
Features
UT200 series are 6000-count digital clamp meters with auto range, large LCD, true RMS, autoscale memory, and NCV functions.

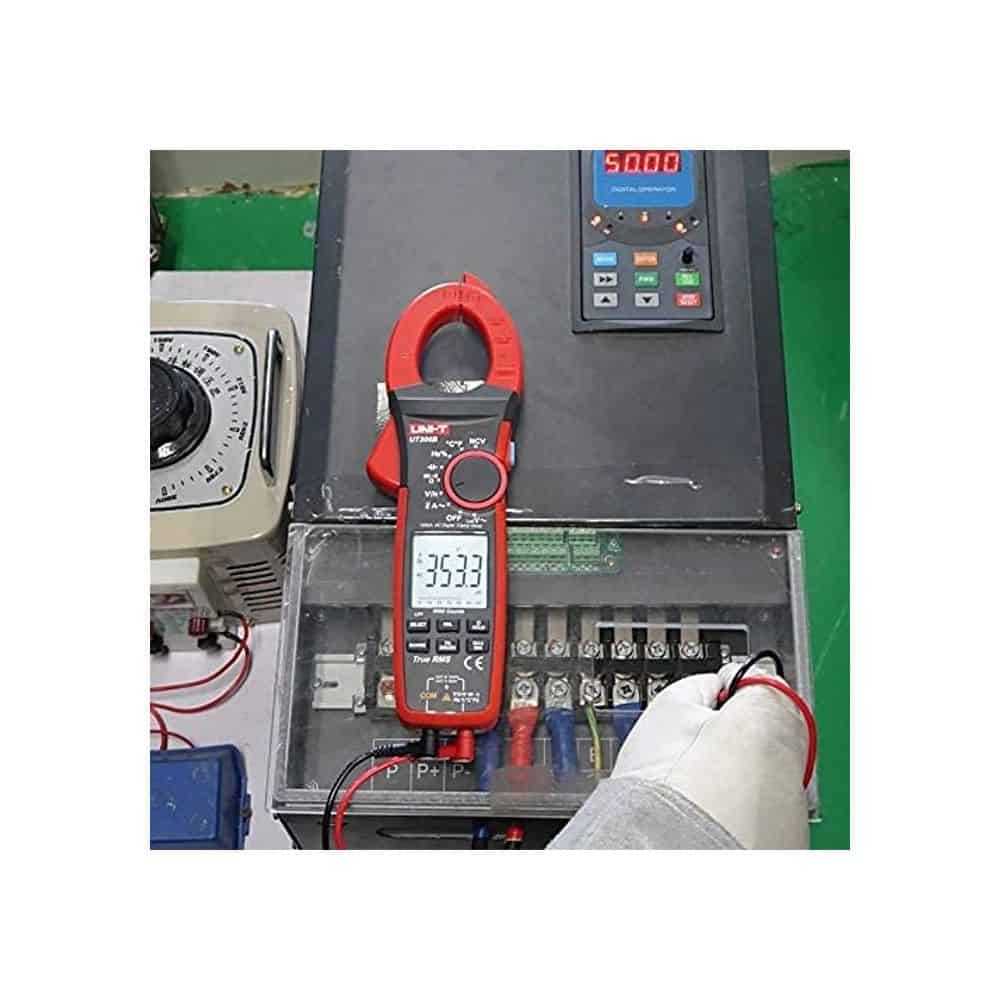

They conform to CAT III 1000V/CAT IV 600V safety rating andcertified by CE/ETL. The UT206B, UT207B, and UT208B come with LoZ mode for eliminating ‘ghost ’voltage, LPF ACV function for measuring INV and VFD voltage, and inrush current modefor capturing transient current.
The UT206B and UT208B also feature high-precision temperature measurement with 0.1 °C resolution, and can be equipped with a flexible current probe to extend the AC current measurement range to 3000A.

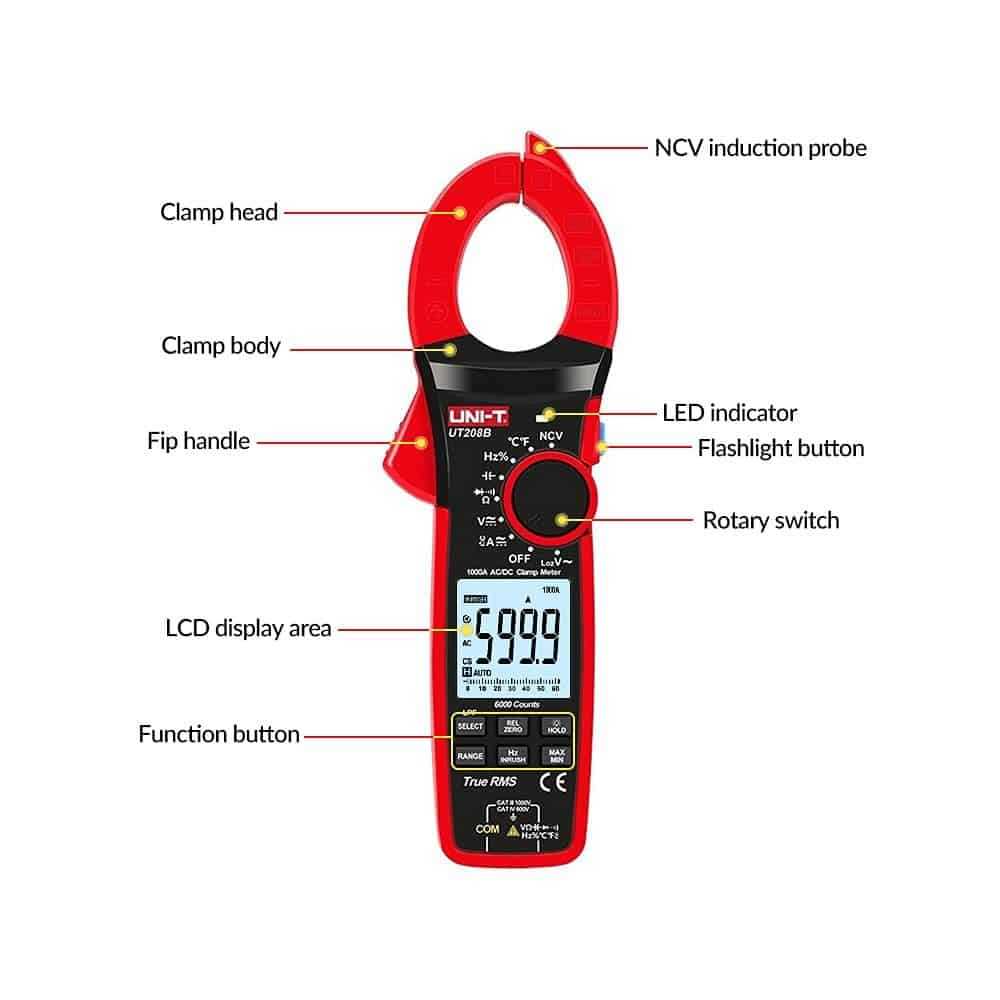

Flashlight button: Short press thisbutton to turn on/off the flashlight

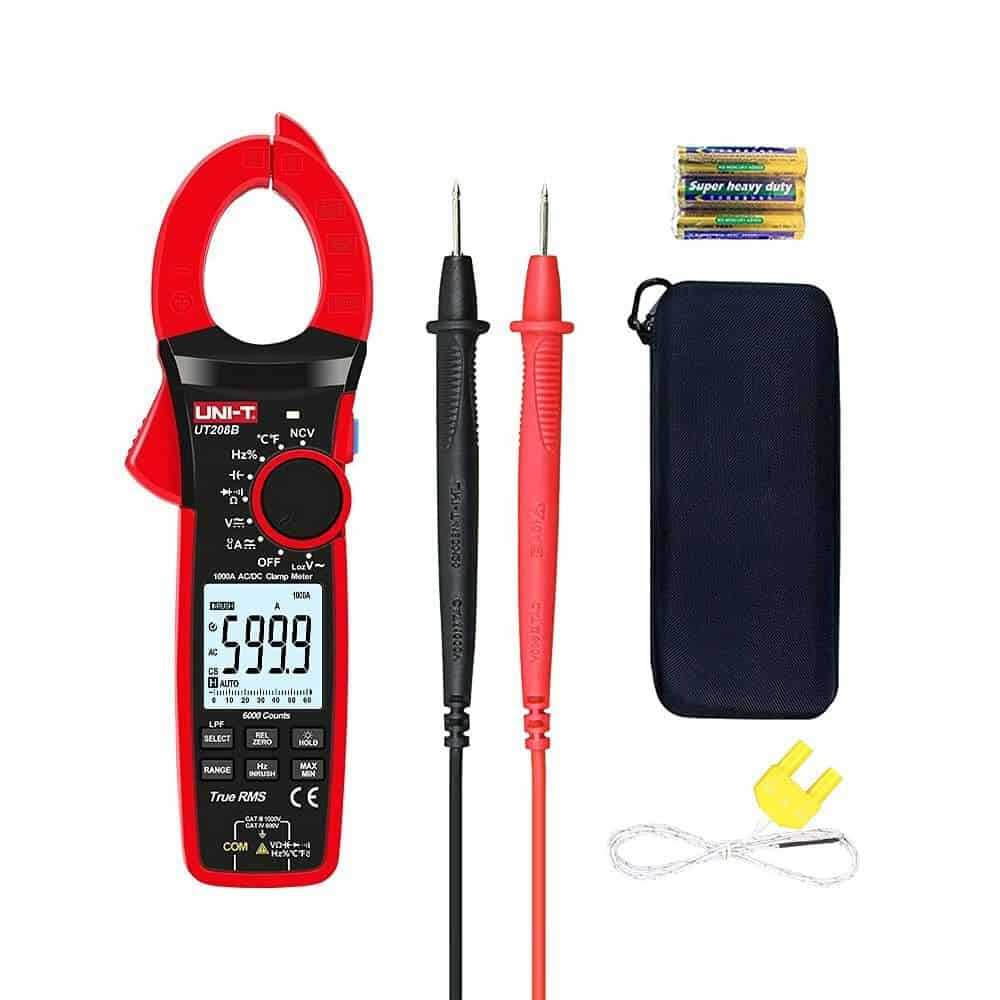

Flexible current probe (optional) to extend the AC current measurement range to 3000A
Inrush current capture
NCV Multi-Segment Display and audio/visual alarm
True RMS/Auto backlight
NCV/Function retention
Specifications
AC Current (A) Range1000A / ±(2%+5)
AC Voltage1000V

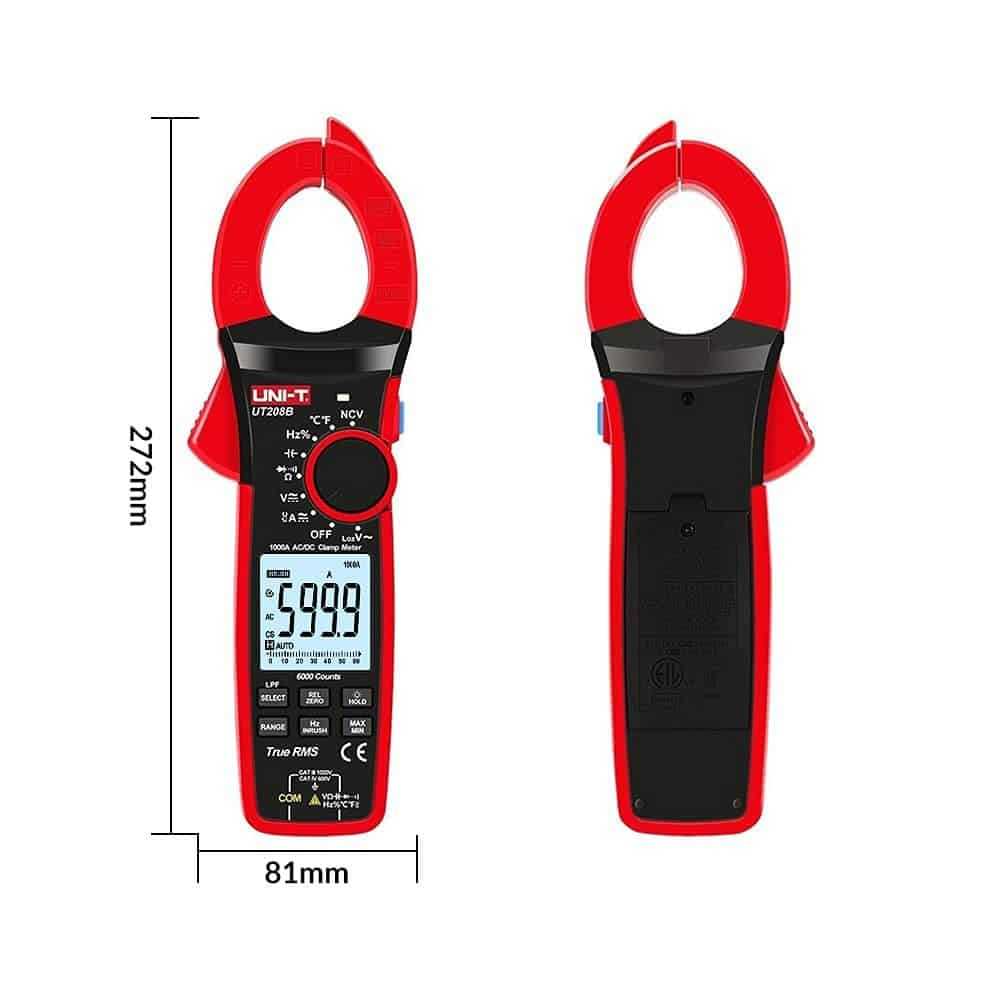

Jaw Size42 mm
Safety RatingCAT III 1000V, CAT IV 600V
AC voltage frequency response40Hz:400Hz
DC current (A) Range1000A / ±(2%+5)
AC current frequency response40Hz : 400Hz
DC voltage (V) Range6V, 60V/600V/1000V ; ±(1.2%+3), ±(1%+8)
DC voltage (V) Range600mV, 6V/60V, 600V, 1000V; ±(0.8%+3), ±(0.5%+5), ±(0.5%+5), ±(0.5%+5)
