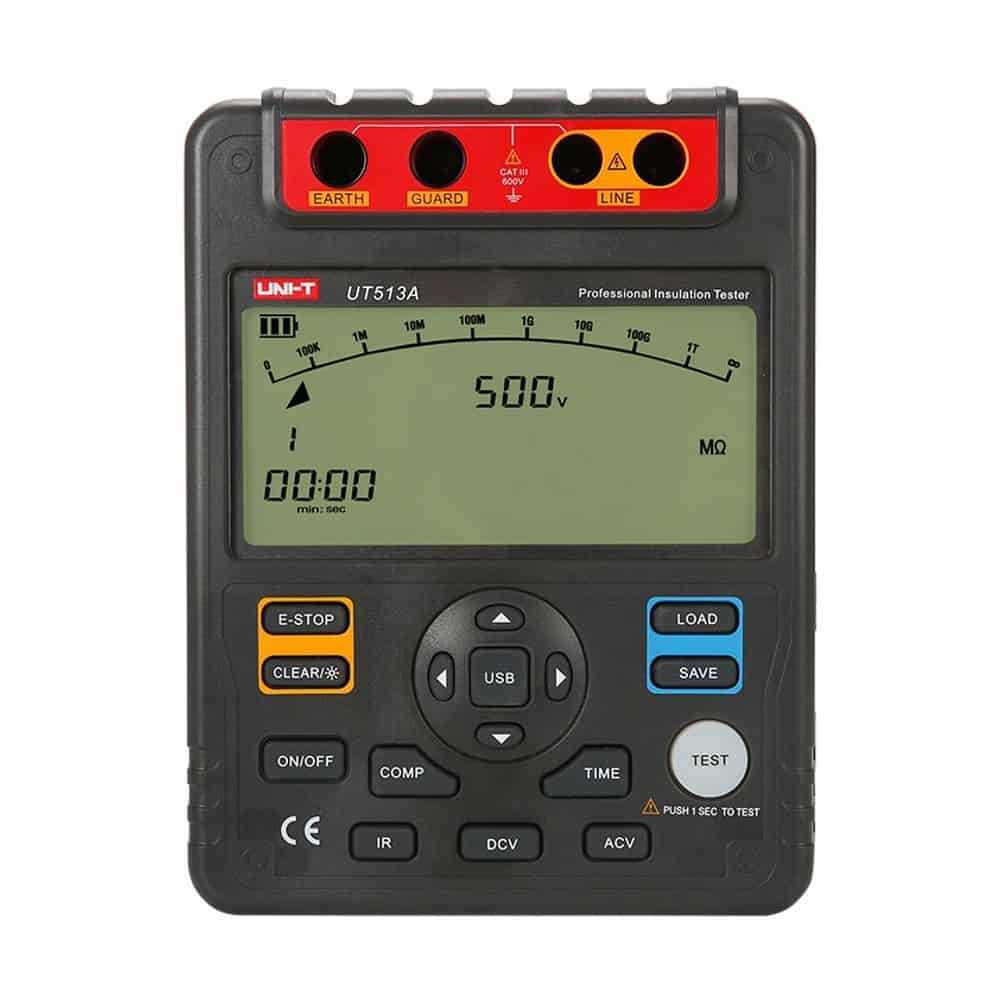

Uni-T UT513A Insulation Resistance Tester, CAT III 600V, 500V - 5000V is a product engineered with precision, delivering exceptional performance
with features like large 9999 display with 30segment analog bar graph, pIDAR measurements and comparison upper and lower limit functions.
Maintive brings to you 100% genuine Insulation Testers from Uni-T at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order UT513A Insulation Resistance Tester, CAT III 600V, 500V - 5000V today at the best price only from Maintive.
Features
Large 9999 display with 30-segment analog bar graph
PI/DAR measurements
Comparison, upper and lower limit functions
Continuous measurement mode
Auto power off
18-group data storage
Auto current discharge and high-voltage output alarm
Time measurement mode, auto measure within 15 minutes
Low battery and over range indications
Items Included
2pcs of one plug test lead to one alligator clip (black and green)
1pcs of two plugs test lead to one alligator clip (red)
batteries
USB cable
PC software CD
power adaptor
Specifications
DC Voltage600V - best accuracy: +/- (2%+5)
AC Voltage600V - best accuracy: +/- (2%+5)
Insulation Test Voltages500V, 1000V, 2500V, 5000V
Insulation Resistance0.5MΩ - 1000GΩ
Power1.5V battery (LR14) x 8
Display123mm x 58mm
Warranty1 year manufacturer's warranty
DC Voltage600V - best accuracy: +/- (2%+5)
AC Voltage600V - best accuracy: +/- (2%+5)
Insulation Test Voltages500V, 1000V, 2500V, 5000V
Insulation Resistance0.5MΩ - 1000GΩ
Power1.5V battery (LR14) x 8
Display123mm x 58mm
Warranty1 year manufacturer's warranty
