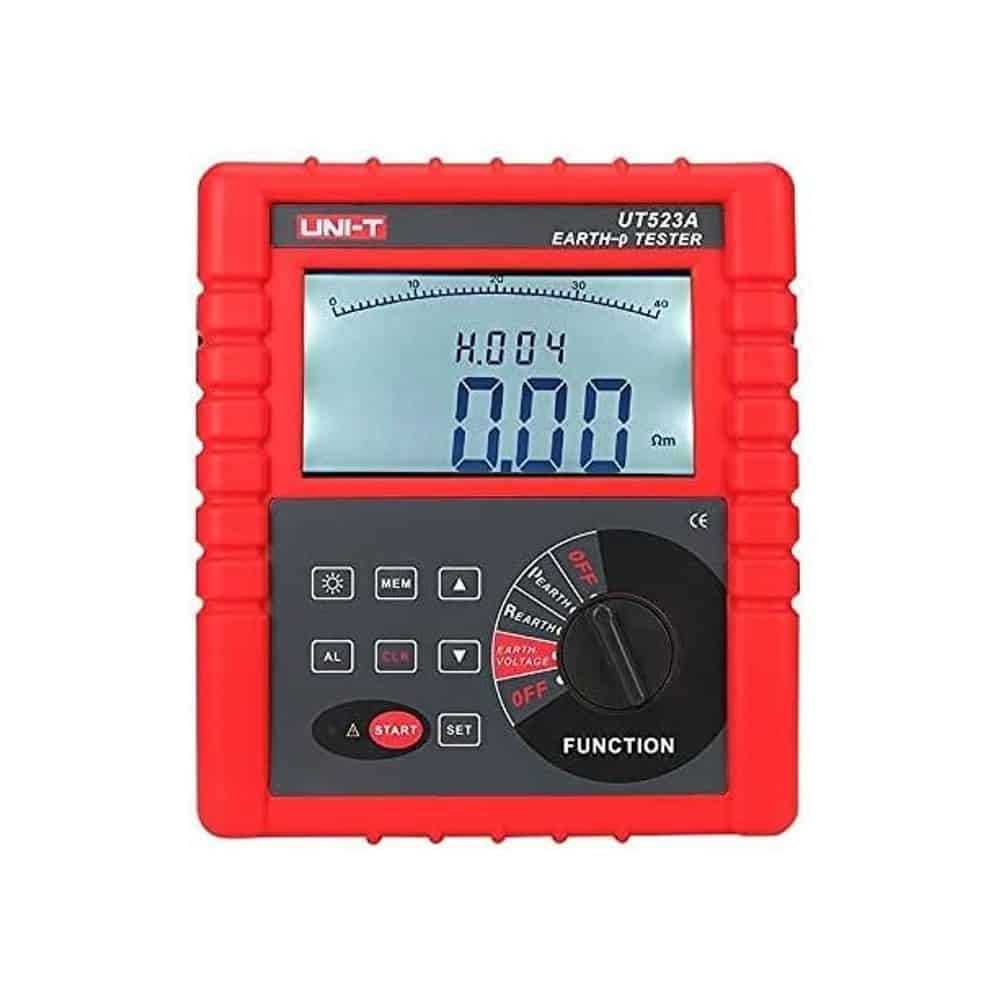

Uni-T UT523A Earth Resistance Tester, 210kΩ, 750V AC, 128Hz is a product engineered with precision, delivering exceptional performance
with features like uT523 Series Earth Resistance Soil Resistivity Tester is specially designed and manufactured for measuring earth resistance soil resistivity earth voltage AC voltage, adopting the latest digital and microprocessing technology precise 4pole 3pole and simple 2pole method for earth resistance measurement and importing FFT and AFC technology with a unique function of antiinterference capability and the ability to adapt to the environment.
Maintive brings to you 100% genuine Earth Ground Testers from Uni-T at your doorstep with fast shipping, multiple and secure payment methods and easy returns. Order UT523A Earth Resistance Tester, 210kΩ, 750V AC, 128Hz today at the best price only from Maintive.
Features
UT523 Series Earth Resistance Soil Resistivity Tester is specially designed and manufactured for measuring earth resistance, soil resistivity, earth voltage, AC voltage.
Adopting the latest digital and micro-processing technology, precise 4-pole, 3-pole and simple 2-pole method for earth resistance measurement.
Importing FFT and AFC technology, with a unique function of anti-interference capability and the ability to adapt to the environment
Alarm Function
Auto range and Data hold functions
Items Included
Standard test lead
simple test lead
batteries
PC software CD
RS232 interface cable
Specifications
Resistance Range0 to 210kΩ
Earth voltageAC 0.00 to 750V
Frequency128Hz/111Hz/105Hz/94Hz(AFC)
Short-circuit testing currentAC 30mA max
Open-circuit testing voltageAC 40V max
Distance between electrodes1m~200m can be set.
Testing voltage waveformSine wave
Line voltageMeasure when the voltage is below 750V AC
